AUTOMATION, LABOR SAVING, HIGH EFFICIENCY! BEST PARTNER TO SUPPORT YOUR CUTTINGS
|
ASF1-30 is designed to automatically feed and contour cut label media for good price. There are some functions such as barcode function and 2 Registration Marks Alignment which are suitable for various design cutting. Also, the operability has been improved by corresponding to Graphtec original software (Graphtec Studio 2 and Cutting Master 5). It enables to realize reducing lead time, stock and cost.
|
|
 |

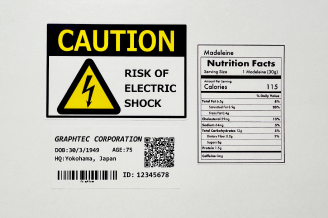

BEST CHOICE FOR STICKERS & LABELS SMALL PRODUCTIONS
| ASF is suitable for various design in small production of labels, stickers and custom-made merchandises. |
| |
 |
|
 |
|
 |
|
 |
|
| p |

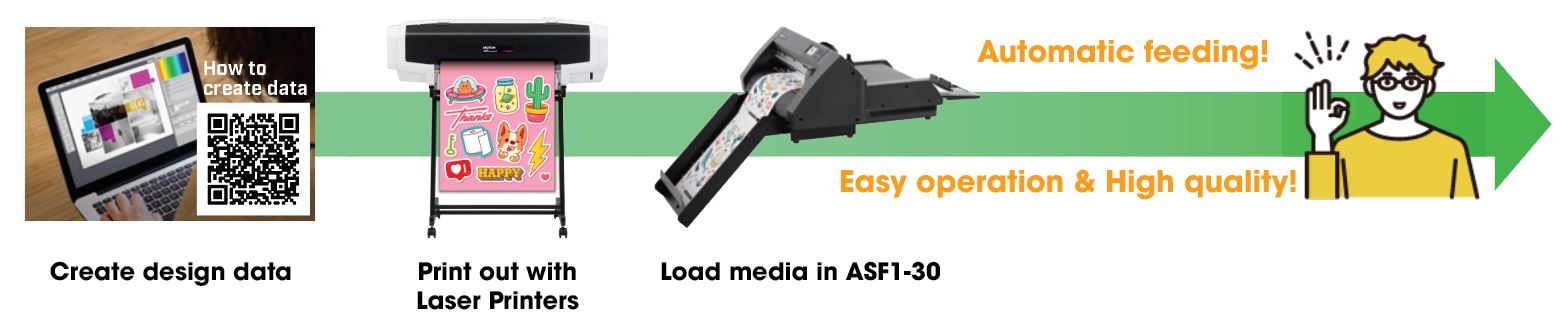

Design ⇒ Print ⇒ Set the media… That’s it !
Save labor and improve efficiency with Continuous Cutting Barcode
Data Link Barcode System enables cutting different data sequentially by detecting its linked data from Data Link Server or USB flash memory.
It prevents cutting incorrect data and saves labor, increases production efficiency.
This function is available regardless of which printer or RIP software is used.
High productivity & accuracy guaranteed 2 Registration Marks Alignment
When cutting the same designs multiple times, 2 Registration Marks Alignment can be combined with is the general 4 Registration Marks Alignment.
CE8000-40 reads 4 Registration Marks for the first sheet and only the first 2 for the second sheet and later.
This function helps to reduce operating time while maintaining the high accuracy of cutting.
FEATURE
How to Create Print & Cut Data
Step 1
1
Create a design in graphic design software
Create a design of labels and stickers in graphic design software (Adobe Illustrator / CorelDRAW / Graphtec Studio 2).
1
Step 2
1

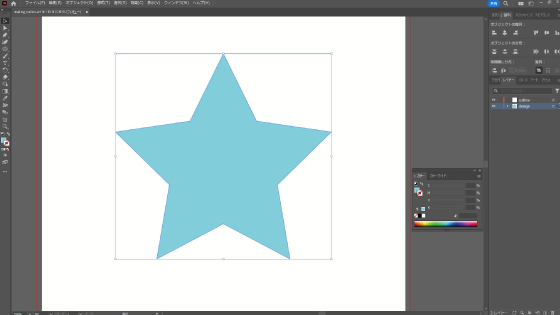

Create cut lines
Create cut lines along the contour of the designed object.
1
Step 3
1
Generate Registration Marks
CE8000-40 and ASF1-30 use Registration Marks to align printing and cutting position.
1. Select the Style of Registration Marks from pull-down menu in Registration Marks panel.
2. Enter line thickness and length of Registration Marks.
3. Click on the check box of [Relative to Page].
4. Enter the distance between the edge of the media and
Registration Marks position and click [OK].
.
How to Generate Barcode for Continuous Cutting
Step 1
1

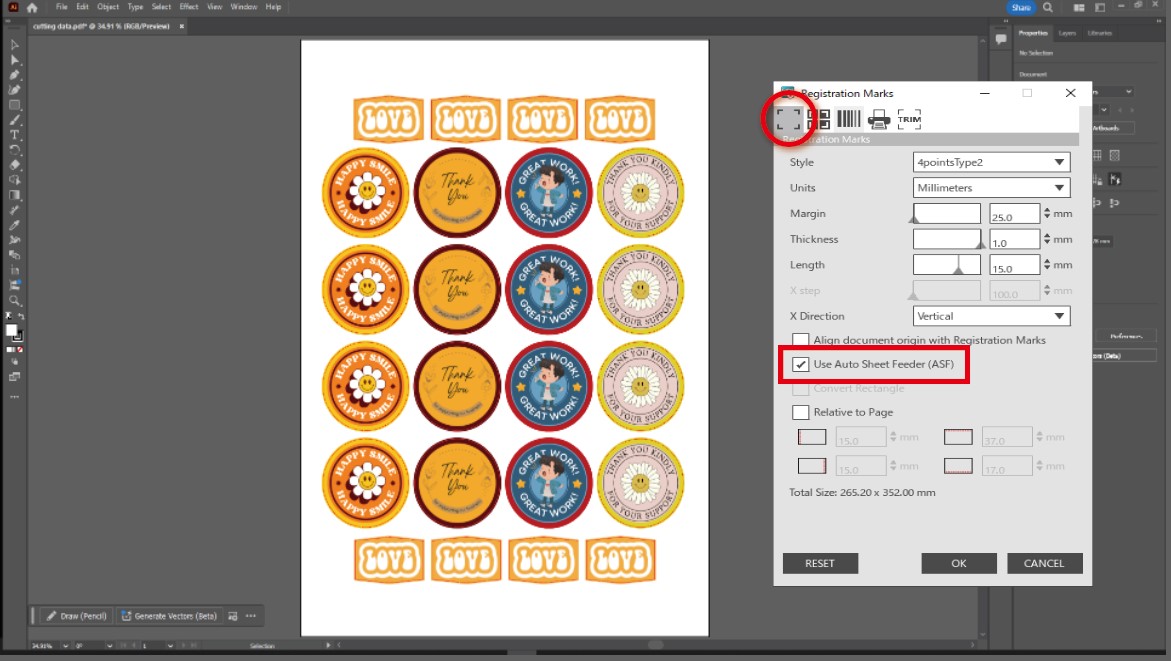

Check [Use Auto Sheet Feeder (ASF)] in Registration Marks panel
Open the Registration Marks panel in Cutting Master 5 or Graphtec Studio 2 and click on the check box of [Use Auto Sheet Feeder (ASF)].
This can prevent the software from generating Registration Marks or barcodes unavailable with ASF1-30.
1
Step 2
1

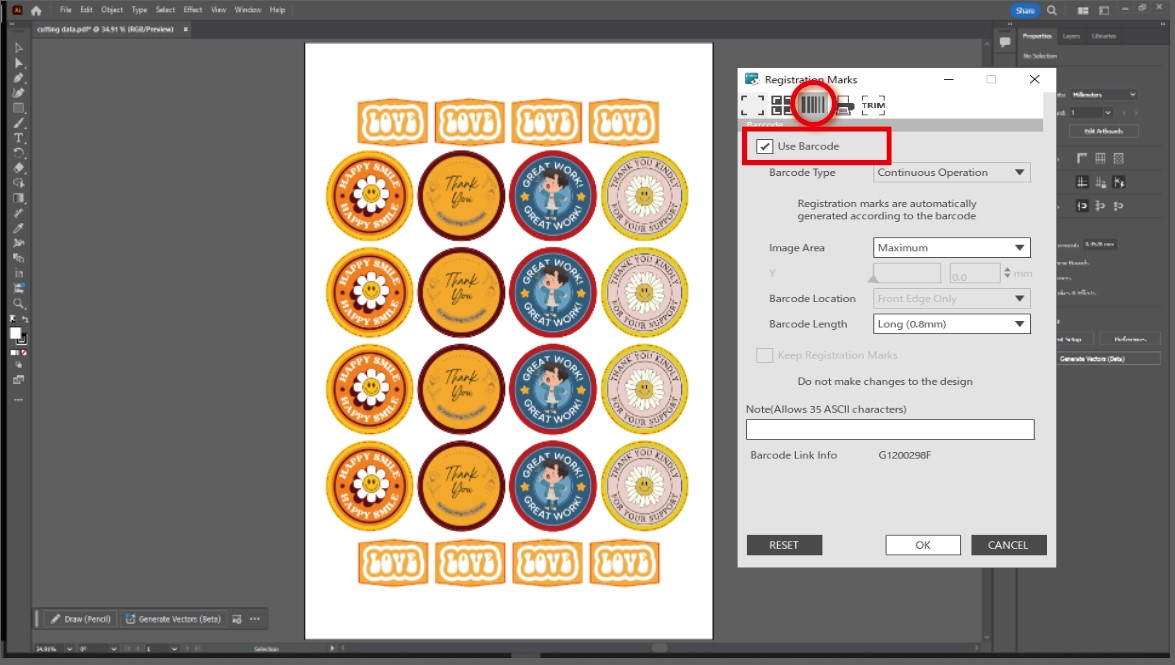

Check [Use Barcode] in Registration Marks panel
Move on to BARCODE tab and click on the check box of [Use Barcode].
1
Step 3
1

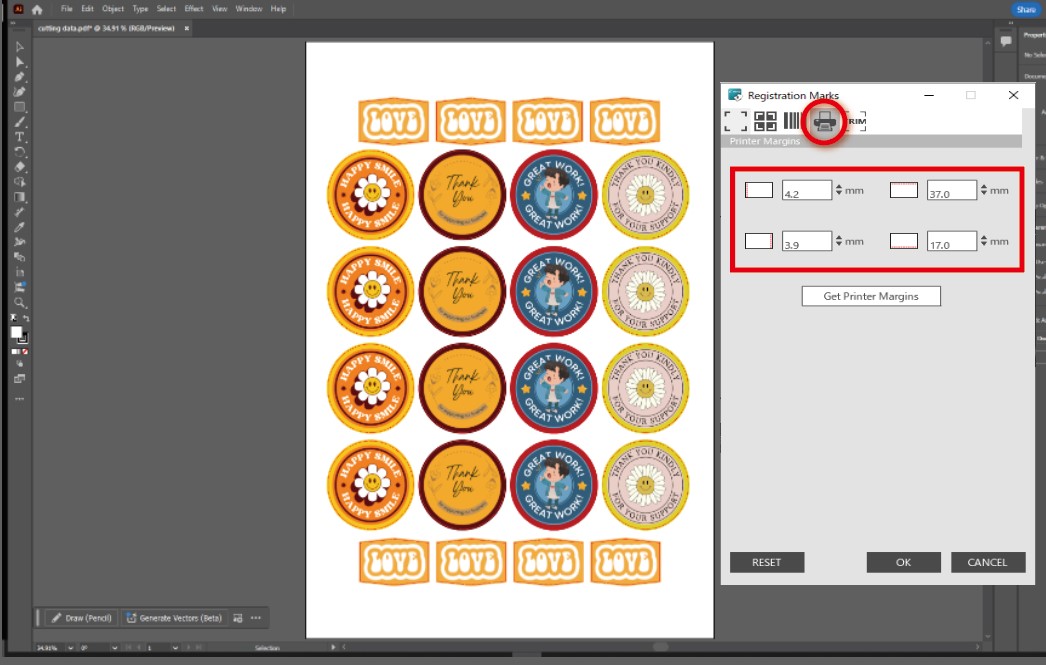

Click [OK] after confirming printer margins value
Confirm the values in PRINTER MARGIN tab and click [OK] if there is no problem.
*The margins of the printer driver selected in the application are initialized in PRINTER MARGIN tab.
*When changing the printer, acquire margin information by clicking [Get Printer Margins].
1
Step 4
1

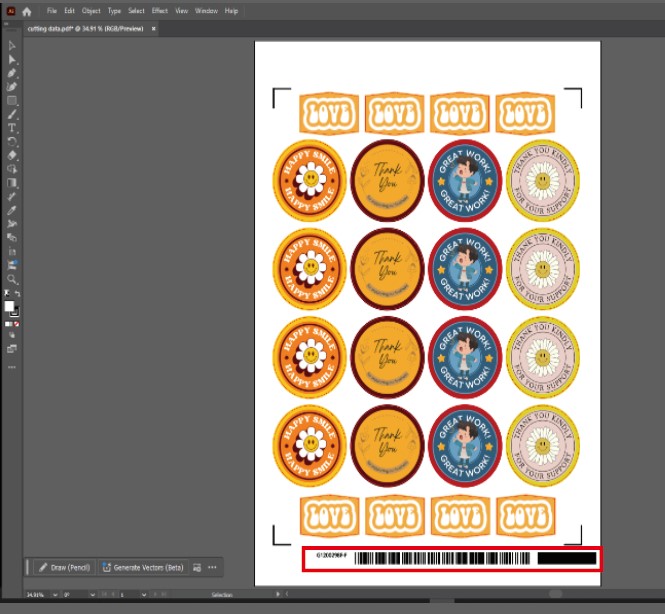

Barcode is generated.
Registration Marks and a barcode are inserted after closing the Registration Marks panel.
1
Other useful functions

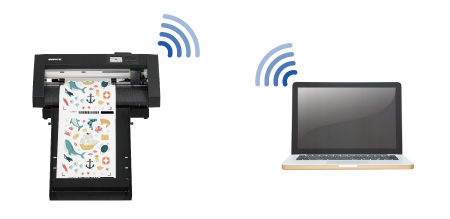

| Wireless function |
|
Email notification function
|
|
Adopting touch panel |
 |
|
 |
|
 |
Install the unit anywhere in your
office without being limited by the cable length. |
|
The completion / error
of continuous cut will be notified to users by email. |
|
Short cut icons of frequently used functions are on display. |
SOFTWARE
Graphic design software
Graphtec Studio 2 (Windows / Mac)
Easy-to-use application software for creating original designs.
It has many enhanced functions such as auto-shapes, shading, and editing functions. It can also configure the cutting conditions and other setting on plotter. EPS, Ai, CMX, and PDF file formats are supported. Graphics created with other popular design software can be imported into the software.
For customers who need enhanced functions, the optional Graphtec Pro Studio Plus is also available.
Show Details
Adobe Illustrator / CorelDRAW plug-in software
Cutting Master 5 (Windows / Mac)
Cutting Master 5 is Graphtec plug-in software for Adobe Illustrator and CorelDRAW Graphic Suite.
It sends cutting data to the plotter and includes a variety of functions such as: preview, registration mark creation, tool conditions, cut job settings and more. Cutting Master 5 is easy to use and enables you to get the best performance from your plotter. Trim marks for Adobe Illustrator is finally available.
Show Details
SPECIFICATION
SPECIFICATIONS
| Items | Description |
|---|
|
Dimensions <W×D×H>(Approx.)
|
45 degrees angle: 677mm×1230mm×326mm *Table Height 470mm or more
Tabletop: 677mm×1360mm×326mm
|
| Weight (Approx.) |
24.8kg (Cutter unit 11kg, Auto Feeder unit 7.2kg, Exit tray 6.6kg)
|
| Compatible media size |
Letter, A4, A3, A3Plus (Vertical setting only)
|
| Maximum number of media that can be loaded |
100 Sheets (Thick paper) – 150 Sheets (Thin paper) |
| Compatible media |
Tack paper (for laser printer)
Thickness 0.15 to 0.23 mm (157 to 181 g/m2)
Basis weight is for reference only
Static electricity generating media and copy paper, etc. are not available.
|
| Operating environment |
15ºC to 35ºC, 70% R.H. (non-condensing) |
| Curl Tolerance |
5mm or less |
* Please take enough space in front and back of the unit for smooth operation.
* Please take enough space in front and back of the unit for smooth operation.
* The installation size (area) when installing on a desktop should be larger than the product size.* There is no specific recommended value for the height of table when installing on a desktop.
Auto sheet feeder unit (ASF1-30) Standard accessories
Accessories contained with ASF1-30
- Connection cable
- Cable cover
- Extension
Accessories contained in the packaging box of the media output tray
- CE8000 base
- ASF1-30 base
- Base connecting parts (2 pcs)
- Media output tray
- Media stopper
- Tray fixing bracket A/B (1 pc of each)
- Screws A (3 pcs)
- Screws B (12 pcs)
- Setup manual / Request for firmware and software updates

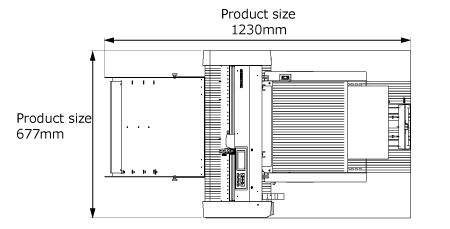

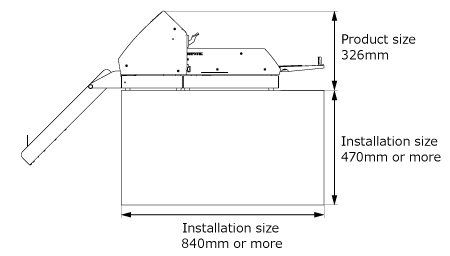

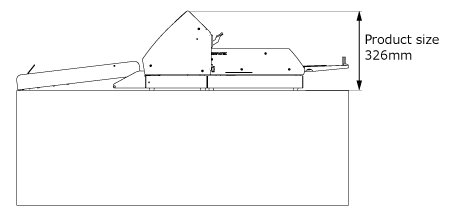

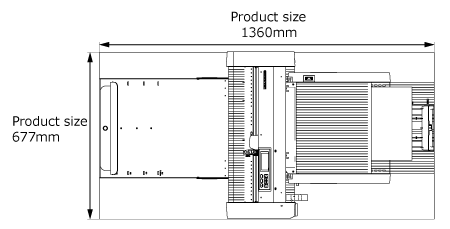

Dimension
<45 degrees use>
<Desktop use>
