Cutting Master 5
Cutting Master 5 is Graphtec plug-in software for Adobe Illustrator and CorelDRAW Graphic Suite.
It includes convenient functions such as synchronizing cutting condition between the software and cutting plotters. Cutting Master 5 is easy to use and enables you to get the best performance from your plotter..
Major useful features
Synchronization function of cutting conditions
The cutting condition and main setting of cutting plotters can be set up on the software and synchronized. The settings can also be saved, so that users of multiple PCs can cut smoothly under the same condition.
Compatible models: FC9000 / CE8000 / FCX4000 / FCX2000 / CE7000 / CE6000 PLUS / FC8600
Creating the registration marks
The registration marks can be added into the arts board of the design application software. It can be selected from 10 patterns according to the design object size and the precision of axis alignment in the Print & Cut applications.
Tiling (split the object)
The cutting object can be split into smaller tiles. When the object needs to be placed to the surface made by multiple panels or is larger than the width of the media, the object can be split to size for fit it.
Maxtrix copy
It is used for creating multiple copies of the same object. The object is copied in specified matrix condition.
Weed lines and border
The border line and weeding lines can be added around the cutting object automatically and then it is cut. It makes easier to remove the excess material from the media.
Tool assignment
The Cutting Master 5 is able to assign the tool condition to the each color or the layer. The settings of tool condition as force, speed, quality (acceleration) and others can be set for the each color or the layer. It can be performed in a single job by process of different types.
ARMS 8.0 Technology
Supports ARMS (Advanced Mark Sensing System) 8.0.
New functions such as crop mark support, backside processing support, reverse color mark, Data Link Function, etc. are available. It enables enhanced usability..
Show Details
Offline operation using the USB flash memory
Plot data is created from the design by using Cutting Master 5, then it is saved to USB flash memory. The plot data file can be selected from the USB on the plotter, then cutting is performed. This simplified work-flow enables users to operate without a computer.
- The USB flash memory format only supports FAT32. Please note that NTFS and exFAT are not supported.
Compatible models: FC9000 / CE8000 / FCX4000 / FCX2000 / CE7000 / CE LITE
Data management using barcode with USB flash memory
In Print & cut operation, the plot data is automatically selected from USB flash memory by scanning the barcode printed on the media. Barcode is created by using Cutting Master 5. This prevents the usage of incorrect data, and improves work efficiency.
Compatible models: FC9000 / CE8000 / FCX4000 / FCX2000 / CE7000
Copy of data with registration marks
After data is sent the first time, it can be copied multiple times without a PC.
Compatible models: FC9000 / CE8000 / FCX4000 / FCX2000 / FC8600 / CE7000 / CE6000 PLUS / CE LITE
In the FC9000 / CE8000 / FCX2000 / FCX4000 / CE7000, the first four marks are scanned on the first sheet, and only the first mark in subsequent sheets. Cutting Master 5 is able to configure FCX 2000 / FCX4000 to execute copy in this condition. This improves productivity by shorting scan detection time.

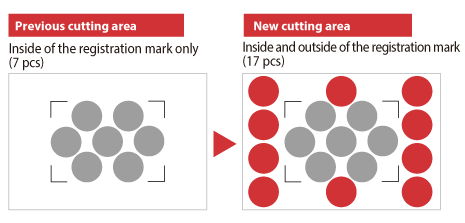

Expanded Cutting Area
The expanded cutting area to include objects outside of the area enclosed by registration marks. Production efficiency is enhanced by reducing media waste.
Supported by standard crop marks
Cutting is aligned to the printed graphic by printing the industry standard crop marks. Adding special marks with Graphtec software is not necessary. Cutting Master 5 is able to get information of crop mark from Adobe Illustrator and send it to FCX2000.
Compatible models: FC9000 / CE8000 / FCX4000 / FCX2000 / CE7000.
Yêu Cầu Hệ Thống
| Mục | Miêu Tả | |
|---|---|---|
| Supported cutter (*2)(*3) | FC9000 / CE8000 / FCX4000 / FCX2000 / FC8600 * / CE7000 / CE6000 PLUS * / CE LITE-50 * (* Operation not guaranteed.) |
|
| Supported OS (*1) | Windows 11 (Home / Pro / Enterprise / Education), Windows 10 / Windows 10 x64 Edition (Home / Pro / Enterprise / Education) |
|
| macOS 10.13 (High Sierra) ～ 14 (Sonoma) | ||
| Supported application software |
Adobe Illustrator | CC2015 (CC2015 is supported in Window OS), CC2017, CC2018, CC2019, 2020, 2021, 2022, 2022, 2023, 2024 |
| CorelDRAW Graphics Suite (*4)(*6) (for Windows OS) |
X7 (*5) , X8, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024 | |
- Make sure to close other cutting software before starting Cutting Master 5.
- Administrator permission will be required.
- It is run in the 32-bit compatible mode (WOW64 mode) when the 64-bits Windows OS is used.
- The firmware needs to be the following version.
• FC9000: version 1.39 or later
• CE7000: version 1.27 or later
• FCX4000: version 3.20 or later
• FCX2000: version 3.80 or later
• FC8600:version 3.50 or later
• CE6000 Plus: version 1.40 or later - The cutting conditions specified by this software will not be effective unless setting is changed on the operation panel of cutting plotter when using the following models. CE6000Plus series
Change the setting of CONDITION PRIORITY from MANUAL to PROGRAM in the TOOLS SETTING menu.. - Not available in editions other than Graphics Suit including Home and Student / Standard / Essentials / Technical Suite.
- Please make sure to update CorelDRAW to version X7.6 or later before use.
- CorelDRAW 2020 and later has been tested with active subscription.
