Reliable cutting quality and basic operation
CE7000 has enought cutting performance which is a wide range of applications in cut pressre, cut speed,long media feeding performance, etc.
Easy operation
Supports the cutting operation with automatic registration mark reading of print & cut and functions to prevent mistakes
Full software
Enable to start to create designs and cutting operation easily with CE7000 with convenient standard accessory software
Feature
Size Lineup

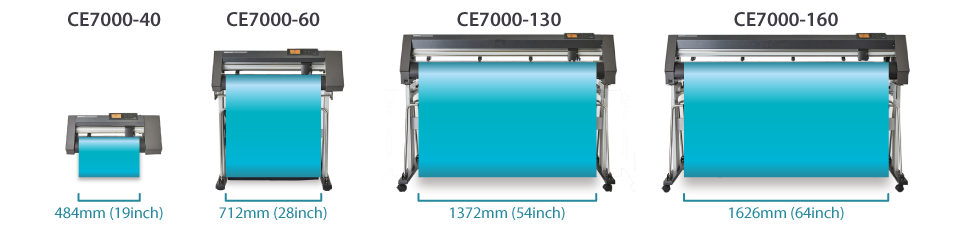

Four sizes to match all requirements.
Enhanced performance
Max. cutting force 4.41N (450gf) and Max. cutting speed 1000mm/s
With maximum cutting force 4.41N (450gf) and maximum cutting speed 1000 mm/s (*1), it enable to cut various media with high productivity.
(*1) CE7000-130 / CE7000-160
Cutting performance that guaranties accurate 5m length cutting. (*2)

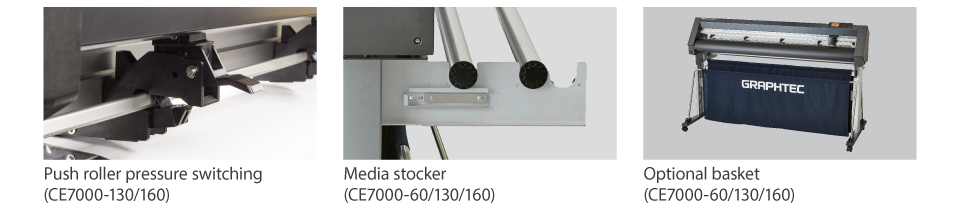

The media stocker helps stabilize the feeding of media. By adjusting the pressure of the middle push roller to the media in three levels, it prevent media floating.
In addition, by using an optional special basket, stability in long cuts can be achieved.
(*2) In case that using optional baskets of CE7000-60/130/160 and cutting media and conditions specified by Graphtec

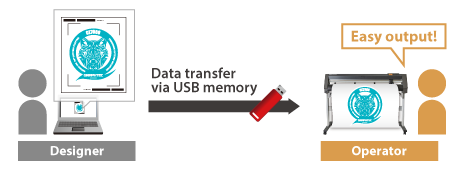

Data output via USB flash memory without PC
When cutting data designed with Cutting Master 4 or Graphtec Pro Studio / Plus are saved to USB flash memory, it can be output directly to the cutting plotter by plugging in. This simplified work-flow enables users to operate without a computer.
* The USB memory format only supports FAT32.
Please note that NTFS and exFAT are not supported.

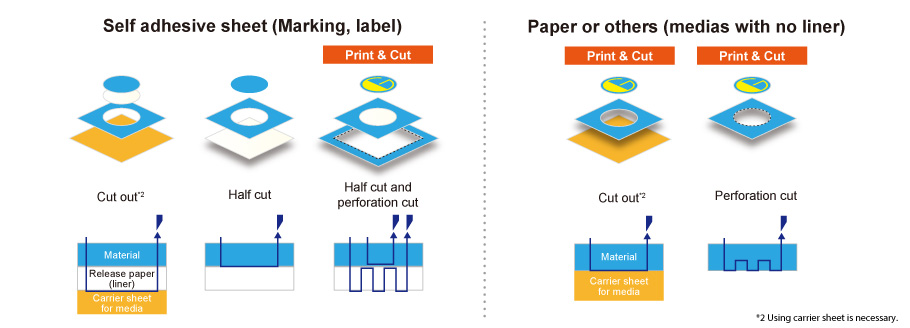

Perforation cutting ability
Carrier Sheet Table

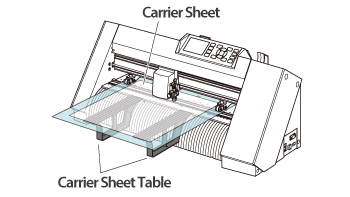

It is an optional item that can be attached to the front and back of the cutting plotter to support a carrier sheet.
* Available with CE7000-40 / -60.
User-friendly control panel

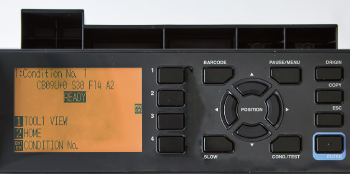

3.7 inch LCD display and
easy-to-use control panel supports 10 languages.
Improved ARMS for high precision cutting (ARMS 8.0)
The Advanced Registration Mark Sensing system delivers precise Print & Cut results by using sensors to detect registration marks and perform axis alignment. Countless efficiency boosting features improve productivity for Print & Cut applications such as stickers and decals.
Data Link Function
(Barcode Data Management/Continuous Cutting)

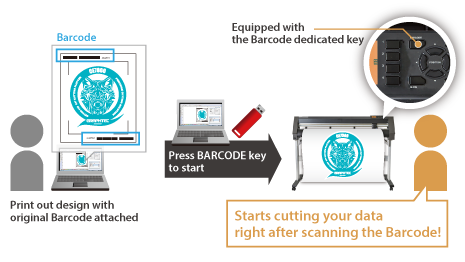

By reading the Graphtec original Barcode, CE7000 automatically detects its linked data from PC or USB flash memory. This function is available regardless of which printer or RIP software is used.
* The USB flash memory format only supports FAT32.
Please note that NTFS and exFAT are not supported.
Continuous Cut
(Data Link function)

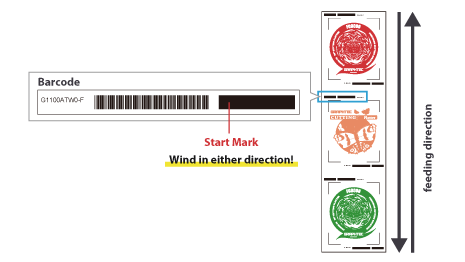

Barcode data management allows cutting different data sequentially by detecting the "Start Mark" of the new Barcode. Sequential Print & Cut process with roll-media is now available.
Supports colored marks / specialty media

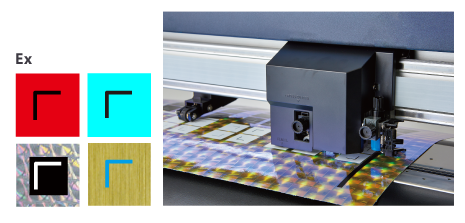

A wide variety of media types including holographic paper and reflective sheets are now compatible due to improvements of the ARMS sensor algorithm.
* Sensor may not be able to read certain combinations of specialty media and colored marks.
* This photo is an image of FC9000.

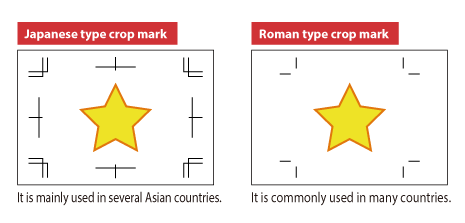

Supports Adobe Illustrator "Crop Marks"
Using the plug-in software Cutting Master 4, Adobe Illustrator crop marks will be availble.
Expanded Cutting Area
The expanded cutting area to include objects outside of the area enclosed by registration marks. Production efficiency is enhanced by reducing media waste.
For more information on "ARMS"
There are convenience functions of ARMS in the CE7000 series.
Show Details
Software
Graphic design software
Graphtec Pro Studio (Windows)
Easy-to-use application software for creating original designs.
It has many enhanced functions such as auto-shapes, shading, and editing functions. It can also configure the cutting conditions and other setting on plotter. EPS, Ai, CMX, and PDF file formats are supported. Graphics created with other popular design software can be imported into the software.
For customers who need enhanced functions, the optional Graphtec Pro Studio Plus is also available.
Show Details
Graphtec Studio (Mac)
This is an easy-to-use application software for Mac OS to create original designs.
Images can be easily created by using the program icons that are arranged around the drawing area.
Show Details
Adobe Illustrator / CorelDRAW plug-in software
Cutting Master 4 (Windows / Mac)
Cutting Master 4 is Graphtec plug-in software for Adobe Illustrator and CorelDRAW Graphic Suite.
It sends cutting data to the plotter and includes a variety of functions such as: preview, registration mark creation, tool conditions, cut job settings and more. Cutting Master 4 is easy to use and enables you to get the best performance from your plotter. Trim marks for Adobe Illustrator is finally available.
Show Details
Specification
Specifications
| Item | CE7000-40 | CE7000-60 | CE7000-130 | CE7000-160 (Not available in US & Korea) | |
|---|---|---|---|---|---|
| Configuration | Grit rolling type | ||||
| Drive method | Digital servo drive | ||||
| Max. cutting area (W x L) (*1) | 375ｍｍ × 50ｍ | 603ｍｍ × 50ｍ | 1270ｍｍ × 50ｍ | 1524ｍｍ × 50ｍ | |
| Cutting area of guaranteed accuracy (*1) (When using optional basket) |
355ｍｍ × 2ｍ | 583ｍｍ × 2m (583ｍｍ × 5ｍ) |
1250ｍｍ × 2m (1250ｍｍ × 5ｍ) |
1504ｍｍ × 2m (1504ｍｍ × 5ｍ) |
|
| Mountable media width | Min. | 50mm | |||
| Max. | 484ｍｍ (19inch) | 712mm (28inch) | 1372mm (54inch) | 1626mm (64inch) | |
| Mountable roll media mass | 5 kg | 9 kg | 17 kg | 20 kg | |
| Number of push rollers | 2 rollers | 4 rollers (Max. 5 (option)) | |||
| Max. cutting speed | 600mm/s at all direction |
900mm/s at 45° direction |
1000mm/s at 45° direction | ||
| Acceleration | 21.2ｍ/s2 at 45° direction | 13.9m/s2 at 45° direction | |||
| Cutting force | Max. 4.41N (450gf) | ||||
| Minimum character size | Approx. 5 mm alphanumeric (varies depending on character font and media) | ||||
| Mechanical resolution | 0.005mm | ||||
| Programmable resolution | GP-GL：0.1/0.05/0.025/0.01ｍｍ HP-GL™ (*2)：0.025ｍｍ | ||||
| Repeatability (*1) | Max. 0.1 mm in plot up to 2 m (Excluding media expansion and contraction) | ||||
| Mountable number of tools | 1 tool | ||||
| Blade types | Supersteel | ||||
| Pen types | Oil-based ballpoint pen, Water-based fiber-tip pen | ||||
| Media types | Up to 0.25mm thickness Marking film (PVC / fluorescence / reflection), polyester film (With specified conditions) |
||||
| Interface | USB 2.0 (Full Speed), Ethernet 10BASE-T/100BASE-TX | ||||
| Buffer memory | 2MB | ||||
| Command sets | GP-GL / HP-GL™ (Set by command or auto-detect) (*2) | ||||
| Display | Graphic type LCD with back-light (240dots x 128dots), supports 10 languages | ||||
| Power source | 100V to 240V AC, 200V to 240V AC, 50 / 60 Hz | ||||
| Power consumption | Up to 100W | ||||
| Operating environment | 10 to 35 ºC, 35 to 75 % R.H. (non-condensing) | ||||
| Guaranteed accuracy environment | 16 to 32 ºC, 35 to 70 % R.H. (non-condensing) | ||||
| External dimensions (approx. W x D x H) (with basket) |
772ｘ292ｘ313 mm | 1005×582×1092 mm (1005×936×1092 mm)(*3) |
1704×811×1215 mm (1704×1148×1215 mm)(*3) |
1916×811×1215 mm (1916×1148×1215 mm)(*3) |
|
| Weight (approx.) (with basket) |
13kg | 23kg (25.2kg)(*3) |
51kg (54.9kg)(*3) |
55kg (59.5kg)(*3) |
|
| Compatible OS (*4) | Windows 10/8.1/7 Mac OS X 10.6 ～ 10.11 / macOS 10.12 ～ 10.15 (Graphtec Studio: 10.6 - 10.15, Cutting Master 4: 10.7 - 10.15) |
||||
| Supported software DOWNLOAD |
Graphtec Pro Studio(Windows)(*5), Graphtec Studio(Mac), Cutting Master 4(*5), Windows Driver | ||||
(*1)Operated with Graphtec specified cutting condition and media. For long-length cutting, the basket is used.
(*2)HP-GLTM is a registered trademark of Hewlett-Packard Company.
(*3)When equipped with the stand.
(*4)Graphtec does not support software/driver used with operating systems that have become obsolete and are no longer supported by the OS developer.
(*5)It requires an Internet connection in order for activation or registration when starting the software for the first time.
Standard accessories
| Item | Q'ty | Description |
|---|---|---|
| Power cord | 1 | The type of cord is different by destination. |
| USB Cable | 1 | 2.9m long |
| Cutting blade holder | 1 | PHP33-CB09N-HS |
| Cutting Blade | 1 | CB09UB-1P |
| Loupe | 1 | PM-CT-001 |
| Fiber-tip pen holder | 1 | PHP31-FIBER |
| Water-based Fiber-tip pen | 1 | KF700-BK (black) |
| Roll Media Tray | 1 | Only for CE7000-40 |
| Stand for CE7000 | 1 | Standard accessory for 130 / 160 |
| DVD-ROM | 1 | User manual, Windows driver, Graphtec Pro Studio (Windows, 1 license), Graphtec Studio (Mac), Cutting Master4 |
| Printed document | 1 | SetupManual, Cutter Blade Manual and Safety Manual |
Option
| Item | Part No. | Description |
|---|---|---|
| Basket for CE7000 series | PG0103 | For CE7000-60 |
| PG0104 | For CE7000-130 | |
| PG0105 | For CE7000-160 | |
| Carrier sheet table | OPH-A45 | For CE7000-40 or CE7000-60 |
| Additional push roller kit | OPH-A49 | Only for CE7000-130/CE7000-160 |
| Optional Stand | ST0118 | For CE7000-60 |
| Graphtec Pro Studio Plus | OPS682-PLS | Design software including all advanced functions (1 license) |
| Graphtec Pro Studio Plus for Rhinestone | OPS682-RSF | Limited edition of rhinestone function only (1 license) |
| Graphtec Pro Studio Plus for Auto Nesting | OPS682-ANF | Limited edition of auto nesting function only (1 license) |

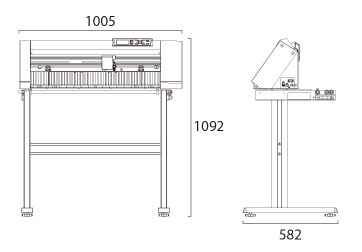

Dimensions

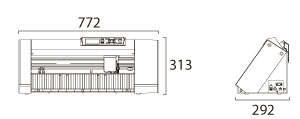

CE7000-40
CE7000-60

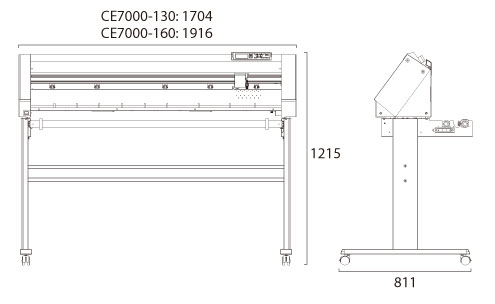

CE7000-130 / 160
*Includes stand.
*Tolerance : +/- 5 mm
Consumable
| Danh Mục | Tên Sản Phẩm | Hình Ảnh | Miêu Tả | Gói |
|---|---|---|---|---|
| Ổ Dao | PHP33-CB09N-HS |  |
Dành cho dòng lưỡi dao CB09U | 1 bộ/gói |
| PHP33-CB15N-HS |  |
Dành cho dòng lưỡi dao CB15U | 1 bộ/gói | |
| Lưỡi Dao | CB09-P | Đường kính 0.9mm. Góc 45 độ, Supersteel | 5 dao/gói | |
| CB09UB-5 |  |
Đường kính 0.9mm. Góc 45 độ, Supersteel Dành cho Decal Nhiệt, giấy mỏng Độ dày 0.03 mm - 0.25 mm |
5 dao/gói | |
| CB09UB-K60-5 |  |
Đường kính 0.9mm. Góc 60 độ Dành cho Car-Film Độ dày 0.03 mm - 0.25 mm |
5 dao/gói | |
| CB15U-5 |  |
Đường kính1.5mm. Góc 45 độ Dành cho giấy/cạc tông Độ dày 0.25 mm - 0.5 mm. |
5 dao/gói | |
| CB15U-K30-5 |  |
Đường kính1.5mm. Góc 30 độ Dành cho giấy/cạc tông Độ dày tối đa 1mm |
5 dao/gói | |
| Kính Lúp | PM-CT-001 |  |
Kiểm tra độ dài lưỡi cắt, đối với dòng PHP33 và PHP35 | 1 bộ/gói |
| Bút Vẽ - Bộ Giữ Bút Vẽ | KF700-BK |  |
Bút Nước - Màu Đen | 10 bút/gói |
| KF700-RD | Bút Nước - Màu Đỏ | 10 bút/gói | ||
| PHP31-FIBER |  |
Dành cho KF700 | 1 bộ/gói | |
| Bút Mực Dầu - Bộ Giữ Bút | KB700-BK |  |
Bút Dầu - Màu Đen | 10 bút/gói |
| PHP34-BALL |  |
Dành cho KF700 | 1 bộ/gói | |
| Miếng Lót | CR09300-A3 | Giấy A3 | 2 tờ/gói | |
| Thảm Cắt | PM-CR-009 | Dành để thay thế Thảm cho máy CE7000-40 | 2 bộ/gói | |
| PM-CR-010 | Dành để thay thế Thảm cho máy CE7000-60 | 2 bộ/gói | ||
| PM-CR-011 | Dành để thay thế Thảm cho máy CE7000-130 | 2 bộ/gói | ||
| PM-CR-012 | Dành để thay thế Thảm cho máy CE7000-160 | 2 bộ/gói | ||
Support
Drivers
| Item | Version | Update | Download |
|---|---|---|---|
| Windows Driver (32-bits Edition) OPS662 (Win10/8.1) | ver.3.90 | Feb. 2020 | Download file |
| Windows Driver (64-bits Edition) OPS662 (Win10/8.1) | ver.3.90 | Feb. 2020 | Download file |
Softwares
| Item | Version | Update | Download |
|---|---|---|---|
| Graphtec Pro Studio (for Windows) | ver.2.90 | Nov. 2019 | Download page |
| Graphtec Pro Studio Plus (for Windows) | |||
| Graphtec Studio (for Mac) (OS X (10.10～10.11), macOS (10.12～10.15)) | ver.3.0.035 | Nov. 2019 | Download page |
| Graphtec Studio (for Mac) (OS X (10.6～10.9)) | ver.2.2.1279 | Nov. 2019 | Download page |
| Cutting Master 4 (for Windows) | ver.3.20 | Nov. 2019 | Download page |
| Cutting Master 4 (for Mac) (OS X (10.9～10.11), macOS (10.12～10.14)) | ver.3.40 | Jan. 2020 | Download page |
| Cutting Master 4 (for Mac) (OS X (10.7～10.8)) | ver.2.82 | Nov. 2019 | Download page |
Manual
| Item | Update | Download |
|---|---|---|
| User manual (English), PDF format file | Nov. 2019 | Download file |
| Setup manual (English), PDF format file | Nov. 2019 | Download file |
Firmware
| Item | Version | Update | Download |
|---|---|---|---|
| CE7000 Updated Firmware ( Win 10 / 8.1) | ver.1.03 | Feb. 2020 | Download file |
*On driver and software, the file is compressed in the ZIP format. It is required to decompress before use.
