F-Mark for CE6000

Main

f mark

Continuous, hand free sheet media loading and processing
Dedicated software ensure accurate alignment of contour and printed images
Camera quickly detects 2-point reference marks for alignment
Performs half-cutting,perforation cutting ad die cutting and dashed line cutting

Maximum Media Size
Super A3 (set in portrait)

(max width: 350mm; length: 550mm)

Media tracking upto
35mm (or 200 sheets)

(its varies by the material, thickness and condition of media)

Increases production efficiency by automatic reloading

The auto sheet feeder reloads the media to the cutting plotter automatically. The cutting process is executed repeatedly with replacing the media. It enables to significantly improve productivity in cutting a large number of media with the same patterns. The following steps are automatically repeated continuity until specified number of copies are made.

Loading

index 001

Detecting marks

index 002

Cutting contour

index 003

Media ejection

index 004

Applications

It is suitable for post-processing of the printed media created with the print-on-demand in small production runs for producing various products such as labels, heat transfer sheets for custom apparel and the POP as table advertising.

index 01

Components of the system

index system

* The cutting plotter (CE6000-40 or CE6000-40 PLUS) is not included in the system. The F-MARK is a product of ATS Digital S.r.l.

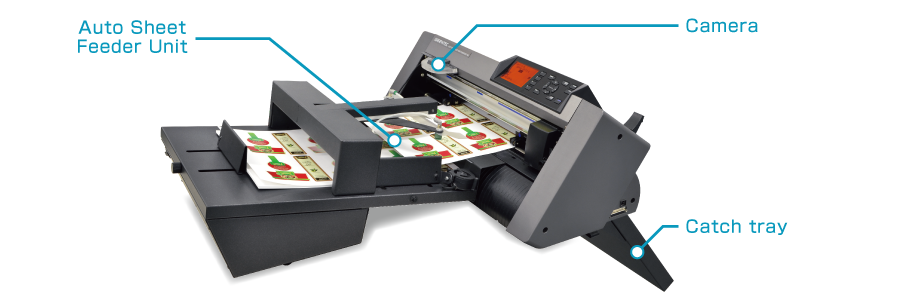

Auto Sheet Feeder Unit

index kyushi

An arm with air suction cups lifts the media from the supply tray and places it into the cutter.
It is able to place the sheet media including Super A3 to A4 and its equivalent in the supply tray.
It is able to stack up to 200 sheets of media or up to 35 mm high on the media supply tray.
* Number of sheet varies by the material, thickness and condition of media.
* The cutting plotter is not included in the system.

Camera

index camera

Quickly detects 2-point reference marks for aligning the contour & printed images by the camera that is mounted on the top cover of the cutting plotter.

Catch tray

index haishi

After cutting is completed, sheets are ejected in the tray.
* It may not be able to catch many quantity of sheets. It varies by the material, thickness and condition of media. It is required to periodically remove sheets from the tray.

Digital Cutting Software (for Windows)

index soft Dedicated software controls the auto sheet feeding system and transfers contour cutting data to the plotter.
The system includes dedicated application software. After media is loaded, the attached camera quickly detects 2-point reference marks and corrects alignment before contour cutting data is transferred, giving you the perfect cut every time.
The software configures cutting conditions such as number of copies, cutting force, cutting speed, offset, and number of paths,
and it can import Adobe Illustrator or CorelDRAW EPS files as the contour data.
* Designs created with any version of Illustrator or CorelDRAW need to be saved or exported in the specified format.

Specification

Item	Part NO.
Auto Sheet Feeder Unit	F-MARK

Unit	Item	Description
Whole system (Auto sheet feeder unit with cutter unit)	Supported standard sized media	A4 (297 x 210 mm), SRA4 (320 x 235 mm) (It is loaded with landscape orientation.)
	Supported standard sized media	A3 (297 x 420 mm), A3+ (typical 329 x 483 mm), SRA3 (320 x 450 mm) (It is loaded with portrait orientation.)
	Interface to PC	Single port of USB (The USB hub to connect the auto feeder unit and cutter unit is included.)
	Power source	100 to 240 V AC (It is required three power outlet.)
	Operating environment	Temperature: 10 to 35°C Humidity: 35 to 75 % RH (non-condensing)

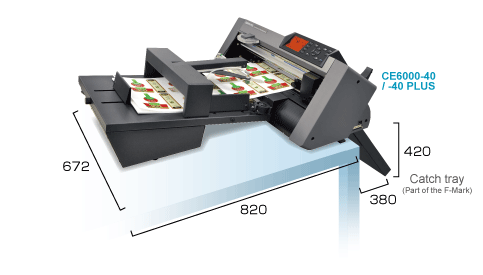

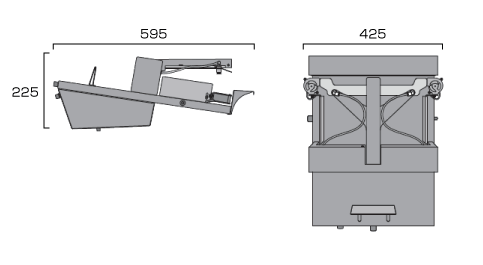

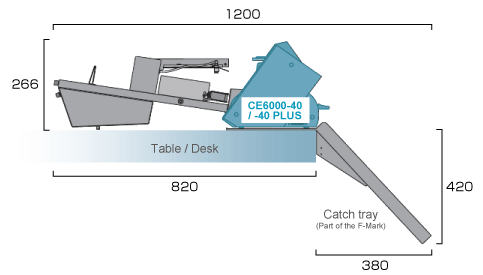

	Dimensions	When the entire system is placed on the table - Size of the upper part from the table: Approx. 672 (W) x 820 (D) x 266 (H) mm - Size of the lower part from the table: Approx. 672 (W) x 380 (D) x 420 (H) mm * The CE6000-40 / 40PLUS is placed to edge of table. Refer the illustration of Dimensions.
	Weight	Approx. 25 kg (Cutter unit*: 11 kg, Auto feeder unit: 10 kg, Catch tray: 4kg)
Auto sheet feeder unit (F-MARK)	Supported media	Width: 279 to 350 mm, Length: 210 to 500 mm (up to 700 mm when the option bracket is installed.)
	Supported media	Up to 350 g/m2 (It is the grammage of the media that can be handled by the automatic feeder unit.)
	Capacity of supply tray	200 Sheets or up to 35mm height (It varies by the material, thickness and condition of media.)
	Interface	USB 2.0
	Power source	AC adapter, 100 to 240 V AC, Approx. 60 VA at output power
	Compatible Standards	Main body : cNus mark / CE mark / FCC
	Compatible Standards	AC adapter : UL / cUL / CE mark / FCC / PSE / CCC
Digital Cutting Software	Supported OS	Windows 10 / 8.1 / 8 / 7
Digital Cutting Software	Contour cutting data format	ai (Illustrator version 8) and eps (The contour cutting data file contains only the contour cutting objects and reference marks and is saved in the specified format.)
Cutter unit (CE6000-40 / 40 PLUS)*	Cutting speed	Max. 600 mm/s all directions
	Acceleration	Max. 21.2 m/s2 (2.2 G) at 45° direction
	Cutting force	Max. 2.94 N (300 gf) with CE6000-40, Max. 4.41 N (450 gf) with CE6000-40 PLUS
	Interface	USB2.0
	Power source	100 to 240 V AC
	Power consumption	Max. 120 VA
	Compatible Standards	UL / cUL / CE mark / RoHS Directive

(*): The cutting plotter is not included in the system.

Options [Coming soon]

Item	Description
Extended bracket of rear media guide	Bracket to support long media up to 700 mm
Media catch tray partition bracket	Bracket to set area on media catch tray for using small media
