Expand the market of Business use, small office / shop
Superior quality, high reliability and affordable price.
Best suitable cutting plotter which is required high quality with small volume for office, store and heat transfer, automotive sign, etc.
Features
Easy operation for beginner
CE LITE-50 offers high cutting quality, productivity, and cost-effectiveness. Enable to create original goods easily with 4.3 inch touch panel and enhanced software.

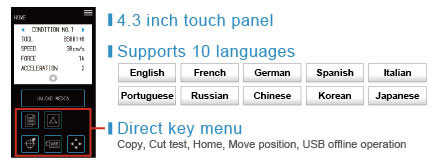

Intuitive operation by 4.3 inch touch panel
CE LITE-50 realized intuitive and easy to use operation by mounting 4.3 inch touch panel.
High productivity for business use

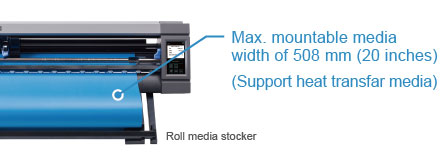

Maximum mauntable media width of 508 mm (20 inches), efficiently produces art for your business.

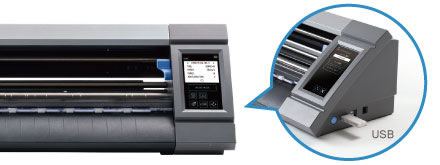

USB Offline Operation
By using cut data saved in USB memory, you can easily cut without using PC.
Supports sheet type media and roll type media

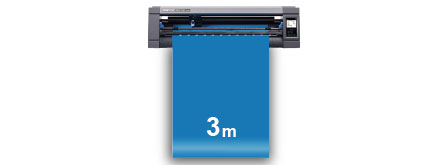

Continuously cut roll media designs up to 3 m* long using the included roll media stocker.
* Accuracy guarantee 1m.
It depemds on the condition of cutting and media.
Create original goods by using Print & Cut function

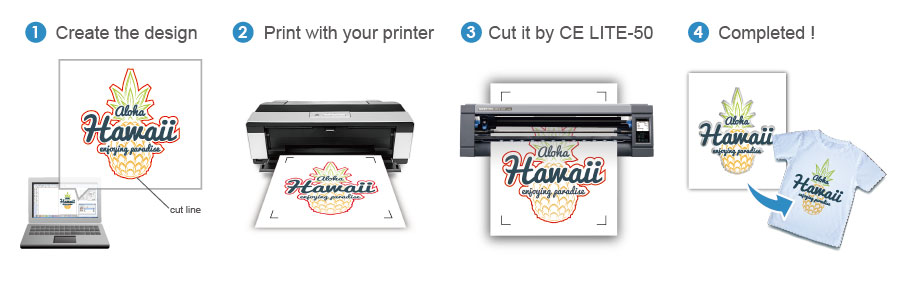

Using Print & Cut function, CE LITE-50 align the position of the cutting line to the printed image automatically. Enable to cut stickers and heat transfer sheet with this function.
ARMS Print & Cut (ARMS7.0)

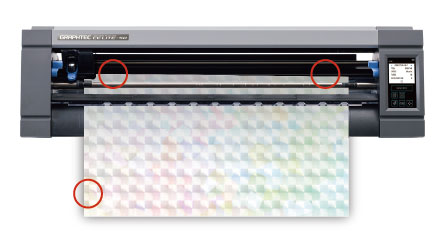

Using ARMS Print & Cut, the plotter detects registration marks on the media to accurately align the position of the cutting line to the printed image. ARMS7.0 is able to detect marks on a media with various color surface.
Show Details >
* The marks may not be detected by condition of the media.
Simple Print & Cut (New Function);

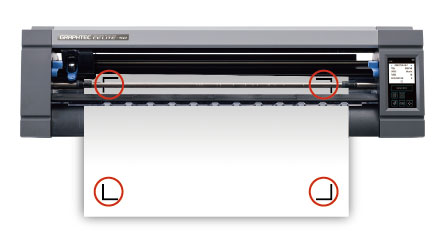

When using sheets, the CE LITE-50 finds the edge of the media and aligns the position of the contour cut line to the printed image without registration marks. (Must use a standard size) The maximum cutting area can be utilized regardless of color or shading of media because registration marks do not need to be printed.
* Position accuracy depends on the quality of the printer.
Contour cutting position might be required fine adjustment.
Software
The enhanced standard software allows to use the plotter for your cutting job immediately.
It corresponds to new enhanced software Graphtec Pro Studio and Cutting Master 4 that enables to create advanced cutting designs and control cutting plotter.
Cutting Master4 (Win/Mac)
Cutting Master 4 is a plug-in software for Adobe Illustrator and CorelDRAW Graphics Suite.
Send cutting data to the plotter, view cut preview, add registration marks, edit tool conditions / job settings and more. This easy to use plug-in enables you to get the best performance from your plotter.
Show Details >
Graphtec Pro Studio / Plus (Optional) for Windows
Easy-to-use application software for creating original designs.
Includes enhanced functions such as auto-shapes, shading, and editing functions. It can also configure the cutting conditions and other settings on the plotter. EPS / Ai / CMX / PDF file compatibility allows users to import pre-existing designs.
Show Details >
Graphtec Studio for Mac
This is an easy-to-use application software for Mac OS to create original designs. Images can be easily created by using the program icons that are arranged around the drawing area.
Show Details >
Specification
Specifications
|
Item |
CE LITE-50 |
|
| Maximum cutting area (W x L) (*1) | 498 mm x 3 m | |
| Cutting area of guaranteed accuracy (W x L) (*1) | 478 mm x 1 m | |
| Mountable media width (*2) | Max. 508 mm Min. 210 mm (A4 portrait orientation) | |
| Mountable roll media type | Diameter | 2 inch paper tube: Maximum diameter 150 mm, Minimum diameter: 52.8 mm 3 inch paper tube: Maximum diameter 150 mm, Minimum diameter: 78.2 mm |
| Weight |
Max. 2.5 kg |
|
| Maximum cutting speed | 500 mm/s in all direction | |
| Maximum cutting force | 2.1 N (210 gf) | |
| Blade type | Supersteel | |
| Pen type | Fiber-tip or ballpoint pen available in market(*3) | |
| Media type | up to 0.1 mm thick self-adhesive film (vinyl / fluorescent / reflective) * high-intensity reflective film is excluded |
|
| Programmable resolution | GP-GL : 0.1 / 0.05 / 0.025 / 0.01 mm HP-GL™ : 0.025mm |
|
| Interface |
USB2.0 |
|
| Storage device (external input) | USB memory | |
| Power source | 100-240 V AC, adapter output 24 V DC (2A) | |
| Power consumption | 32 W | |
| Operating environment | 10 to 35 ºC, 35 to 75 % R.H. (non-condensing) | |
| Guaranteed accuracy envronment | 16 to 32 ºC, 35 to 70 % R.H. (non-condensing) | |
| External dimensions (W x D x H) | Approx. 784 x 227 x 164 mm (without roll media stocker) | |
| Weight | Approx. 8.0 kg (without roll media stocker) | |
| Compatible OS (*4) | Windows 10 / 8.1 / 8 / 7 Mac OS X 10.6 to 10.11 / macOS 10.12 (Sierra) to 10.13 (High Sierra) (Graphtec Studio: 10.6 - 10.13, Cutting Master 4: 10.7 - 10.13) |
|
| Supported software / driver (*5) | Cutting Master 4 (*6), Graphtec Pro Studio (*6), Graphtec Studio (for Mac), Windows driver | |
| Compatibility Standards | Safety | UL/cUL, CE mark |
| EMC | VCCI Class A, FCC Class A, CE mark (EN55032, others) | |
(*1) When operated with Graphtec specified media and conditions. (the roll media stocker is used for long media)
(*2) For non-standardized sizes, use the carrier sheet.
(*3) It requires the pen adapter for CE LITE-50 ( Optional ).
The diameter range of available water based felt-tipped pen ：8 mm to 11.3 mm.
There are 3 types of pen adapter to match the width of water based felt-tipped pen.
*There are cases where the pen is not available depends on the shape.
(*4) Graphtec does not support software/driver used with operating systems that have become obsolete and are no longer supported by the OS developer.
(*5) Please check "Support" page or contact your local representative of Graphtec.
(*6) It requires an Internet connection in order for activation or registration when starting the software for the first time.
Standard accessories
|
Item |
QYT |
Description |
| AC adapter | 1 | Cord type varies by country |
| Cutter Set (Standard Blade) | 1 | Standard type (PM-BS-001) |
| Carrier Sheet (13-inch) |
1 |
330 mm wide (13 inches : PM-CM-003) |
| Cross cutter | 1 | For manually cutting from sheets and rolls (PM-CC-001) |
| Roll media stocker |
1 |
|
| Blade tip cap tool | 1 | For removing the edge of a blade |
| USB cable | 1 | 1.5 m long |
| Setup manual | 1 | Written in 10 languages |
| Safety manual | 1 | Written in 10 languages |
(*) Please download the user manual of CE LITE-50 from "Support" page.
Options
| Item | Part No. | Description | Package |
| Graphtec Pro Studio Plus | OPS682-PLS | Advanced edition of Graphtec Pro Studio | 1 set/pack |
Dimensions

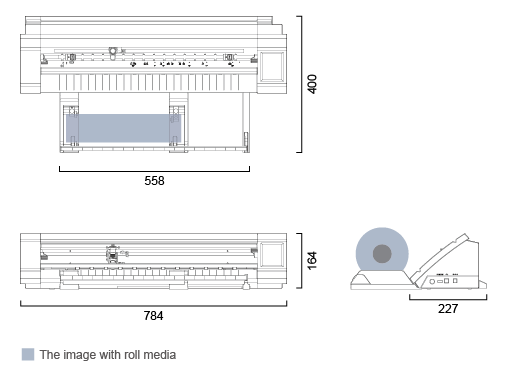

■ CE LITE-50 (when using roll media)
(*) Scale : mm
Tolerance : +/- 5 mm

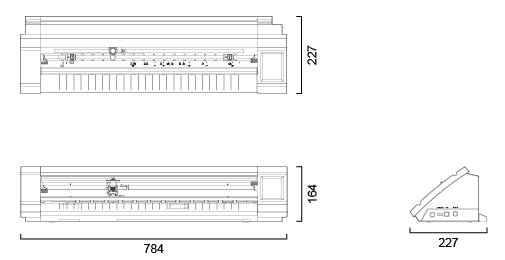

■ CE LITE-50 (when using sheet media)
(*) Scale : mm
Tolerance : +/- 5 mm
Comsumable Item
Consumable Item
|
Item |
Images |
Part No. |
Description |
Package |
|
Cutter Set (Standard Blade) |
|
PM-BS-001 |
Normal media (film, paper, others) |
1 set/pack |
|
Cutter Set (Long Blade) |
PM-BS-002 |
Thick media |
1 set/pack |
|
|
Pen adapter |
|
PM-BH-001 |
For the a store-bought pen |
1 set/pack |
|
Carrier Sheet (13-inch) |
|
PM-CM-003 |
For the media without mount |
1 sheet/pack |
|
Cutting mat |
|
PM-CR-001 |
For replacing cutting mat |
1 mat/pack |
|
Cross cutter |
|
PM-CC-001 |
For manually cutting from sheets and rolls |
1 pc/pack
|
