Engineered to Achieve High Performance with Affordable Price
|
The Graphtec CE8000 Series is the perfect solution for those looking to increase production with greater efficiency for signage graphics, print & cut graphics, pop & packaging, automotive markets and many more. The rigidity has been enhanced compared to the previous model CE7000, which its feeding and cutting quality have also been improved. Wireless LAN has been newly available to enhance the convenience and flexibility.
|
 |
Top-level Cutting Performance

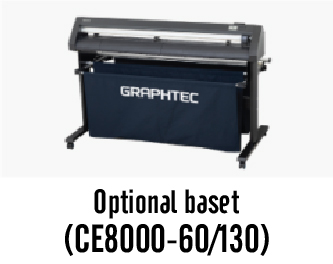

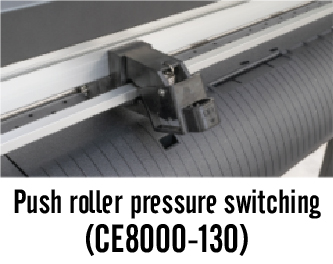

| Pressure adjustable push rollers and newly developed Media Set Assist function help to hold your media stable and prevents from feeding trouble. By using an optional basket, stability in long roll media cuts can be achieved. |
||||||
 |
 |
 |
||||
FEATURE
Enhanced performance
Max. cutting force 4.41N (450gf) and Max. cutting speed 1000mm/s
With maximum cutting force 4.41N (450gf) and maximum cutting speed 1000 mm/s (*1), it enable to cut various media with high productivity.
NEW FUNCTIONS!
|
Wireless LAN: Able to install anywhere in your office without being limited by the cable length. |
Touch panel: The operability has been improved. Frequently used functions are displayed as icons. |
|

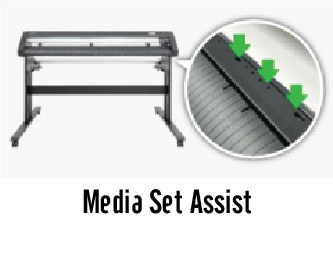

 Media Set Assist: Suction fans are installed to avoid media lift and shift when feeding. |
Email notification function: The completion and error of continuous cut will be notified to users by email. |
|
FEATURES TO IMPROVE YOUR PRODUCTIVITY
|
Top-level cutting speed, accuracy, quality will be your best business partner. |
Can be combined with any printers when creating stickers and lables (Print&Cut). |
||||

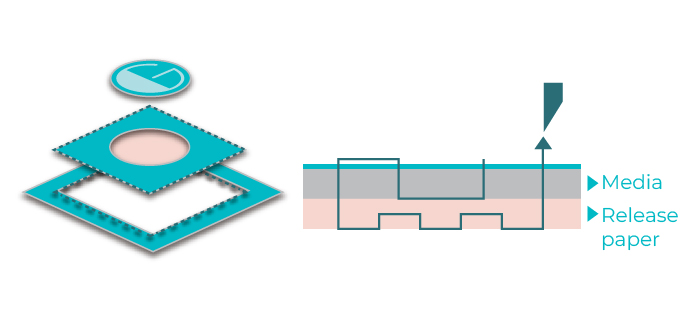

 Operate both half-cut and perforation cut with one tool. |
Multiple-mark compensation (Matrix copy) function supports 0mm margin. |
||||
 Economy efficient by making full use of the media margin that tends to be wasted. |
Cutting data can be placed outside the registration marks and able to make full use of the media. |
||||
 By inserting a USB flash memory, cutting data can be transfered without using a PC. |

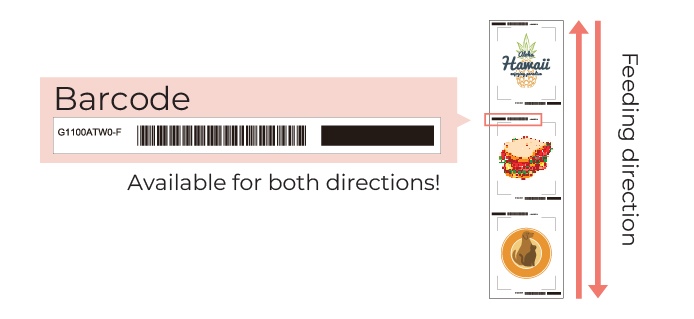

Automatic identification of cutting data with the dedicated barcode avoids cutting wrong data. |
||||
 Just operate START and the cutting plotter detects the right data with the barcord autoatically. |
|
||||
Learn More About "ARMS"
See Details
SOFTWARE
Graphic design software
Graphtec Studio 2 (Windows / Mac)
Easy-to-use application software for creating original designs.
It has many enhanced functions such as auto-shapes, shading, and editing functions. It can also configure the cutting conditions and other setting on plotter. EPS, Ai, CMX, and PDF file formats are supported. Graphics created with other popular design software can be imported into the software.
For customers who need enhanced functions, the optional Graphtec Pro Studio Plus is also available.
Show Details
Adobe Illustrator / CorelDRAW plug-in software
Cutting Master 5 (Windows / Mac)
Cutting Master 5 is Graphtec plug-in software for Adobe Illustrator and CorelDRAW Graphic Suite.
It sends cutting data to the plotter and includes a variety of functions such as: preview, registration mark creation, tool conditions, cut job settings and more. Cutting Master 5 is easy to use and enables you to get the best performance from your plotter. Trim marks for Adobe Illustrator is finally available.
Show Details
SPECIFICATION
SPECIFICATIONS
| Item | CE7000-40 | CE7000-60 | CE7000-130 | ||
|---|---|---|---|---|---|
| Cutter type | Grit rolling type | ||||
| Drive system | Digital servo drive | ||||
| Max. cutting area (W x L) (*1) | 375ｍｍ × 50ｍ | 603ｍｍ × 50ｍ | 1270ｍｍ × 50ｍ | ||
| Accuracy guaranteed cutting area (W x L) when using basket |
355ｍｍ × 2ｍ | 583ｍｍ × 2m (583ｍｍ × 5ｍ) |
1250ｍｍ × 2m (1250ｍｍ × 5ｍ) |
||
| Mountable media width | Min.. | 50mm | 85mm | ||
| Max. | 484ｍｍ (19inch) | 712mm (28inch) | 1372mm (54inch) | ||
| Mountable roll media weight | 5 kg | 9 kg | 17 kg | ||
| Number of push rollers | 2 | 3 | |||
| Max. cutting speed | 900mm/s (45° direction) | 1000mm/s (45° direction) | |||
| Max. acceleration | 21.2ｍ/s² (45° direction) | 13.9m/s² (45° direction) | |||
| Cutting force | 4.41N (450gf) | ||||
| Min. Character size | Alphanumeric: approx. 5mm (varies depending on font and media) | ||||
| Mechanical step size | 0.005mm | ||||
| Programmable step size | GP-GL：0.1/0.05/0.025/0.01ｍｍ HP-GL™ (*2)：0.025ｍｍ | ||||
| Repeatability | Max. 0.1mm in plot up to 2m (Excluding media expansion and contraction) | ||||
| Installable number of tools | 1 | ||||
| Blade types | Supersteel | ||||
| Pen types | Oil-based ballpoint pen, Water-based fiber-tip pen | ||||
| Media types | Max. 0.25mm thickness Marking film (PVC / fluorescent / reflective) *High intensity reflective sheet is not supported |
||||
| Interface | USB2.0 (Full Speed), Wireless LAN IEEE 802.11b/g/n, Ethernet 10 BASE-T/100BASE-TX (*3) | ||||
| Buffer memory | 2MB | ||||
| Command sets | GP-GL / HP-GL™ (Set by command or auto-detect) | ||||
| LCD display | Touch panel (240-dot × 128-dot) | ||||
| Power source | AC100-120V, AC200-240V, 50/60Hz (auto-switchover) | ||||
| Power consumption | 140W | ||||
| Operating environment | 10 – 35℃ , 35 – 75％ R.H. (non-condensing) | ||||
| Accuracy guaranteed environment | 16 – 32℃ , 35 – 70％ R.H. (non-condensing) | ||||
| External dimensions (W x D x H) including stand |
677 x 289 x 266mm | 903 × 582 × 1076mm | 1644 × 811 × 1076mm | ||
| Supported software (*3) | Graphtec Studio 2, Cutting Master 5, Windows Driver | ||||
(*1) Operated with Graphtec specified cutting condition and media. For long-length cutting, the basket is used.
(*2) HP-GLTM is a registered trademark of Hewlett-Packard Company.
(*3) Graphtec does not support software/driver used with operating systems that have become obsolete and are no longer supported by the OS developer.
Standard Accesories
| Item | Quantity |
|---|---|
| AC power cable | 1 |
| USB cable | 1 |
| Cutter plunger (PHP33-09N-HS) | 1 |
| Cutting blade (CB09UB-1P) | 1 |
| Roll media stocker (CE8000-40 only) | 1 |
| Stand (CE8000-60/130 only) | 1 |
| Setup manual | 1 |
| Safety guide | 1 |
| WLAN module set | 1 |
Options
| Item | Name | Descriptions |
|---|---|---|
| Media baskets | PG0111 | for CE8000-60 |
| PG0112 | for CE8000-130 | |
| Carrier sheet table | OPH-A57 | for CE8000-60 |
| Roll media stocker | OPH-A45 | for CE8000-40/60 |
CONSUMABLE
| Category | Name | Image | Descriptions |
|---|---|---|---|
| Cutter plunger | PHP33-CB09N-HS |  |
Cutter plunger for Φ0.9mm x1 |
| PHP33-CB15N-HS |  |
Cutter plunger for Φ1.5mm x1 | |
| Blade | |||
| CB09UB-5 |  |
Φ0.9mm, 45º, Supersteel (for PVC film) | |
| CB09UB-K60-5 |  |
Φ0.9mm, 60º, Supersteel (for PPF) | |
| CB15U-5 |  |
Φ1.5mm, 45º, Supersteel (for paper, cardboard) | |
| CB15U-K30-5 |  |
Φ1.5mm, 30º, Superstee (for paper, cardboard) | |
| Loupe | PM-CT-001 |  |
Blade loupe (for PHP33/PHP35 series) |
|
Ballpoint pen Fiber-tip pen holder |
KF700-BK |  |
Black x10 |
| KF700-RD | Red x10 | ||
| PHP31-FIBER |  |
for KF700 | |
|
Ball point pen refill Ballpoint pen holder |
KB700-BK |  |
Black x10 |
| PHP34-BALL |  |
for KF700 | |
| Carrier sheet | CR09300-A3 | for A3 size x2 *Please use with Cutting media table (OPH-A45). | |
| Cutting mat | PM-CR-013 | for CE8000-40 x2 | |
| PM-CR-014 | for CE8000-60 x2 | ||
| PM-CR-015 | for CE8000-130 x2 | ||
| USB cable | PM-ET-001 | Cable length: 2.9m x1 | |
SUPPORT
Drivers
| Category | Version | Update | Download |
|---|---|---|---|
| Windows Driver (32-bits Edition) | ver.4.11 | 2024 | Download Here |
| Windows Driver (64-bits Edition) | ver.4.11 | 2024 | Download Here |
Software
| Category | Version | Update | Download |
|---|---|---|---|
| Graphtec Studio 2 (Windows) | ver.1.4.53 | 2024 | Download Here |
| Graphtec Studio 2 (Mac) | ver.1.4.54 | 2024 | Download Here |
| Cutting Master 5 (Windows) | ver.1.4.53 | 2024 | Download Here |
| Cutting Master 5 (Mac) | ver.1.4.53 | 2024 | Download Here |
Firmware
| Category | Version | Update | Download |
|---|---|---|---|
| CE8000 Updated Firmware | ver.1.02 | 2024 | Download Here |
*The file is compressed in .ZIP format and needs to be unzipped before use.
