Creating design

Cutting Master 4

Cut by Cutting Plotter

Creating the registration marks

The registration marks can be added into the arts board of the design application software. It can be selected from 10 patterns according to the design object size and the precision of axis alignment in the Print & Cut applications.

Tiling (split the object)

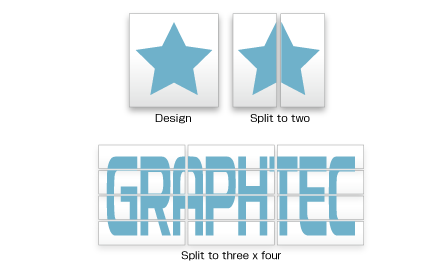

The cutting object can be split into smaller tiles. When the object needs to be placed to the surface made by multiple panels or is larger than the width of the media, the object can be split to size for fit it.

Matrix copy

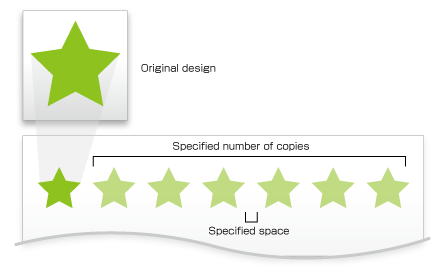

It is used for creating multiple copies of the same object. The object is copied in specified matrix condition.

Weed lines and border

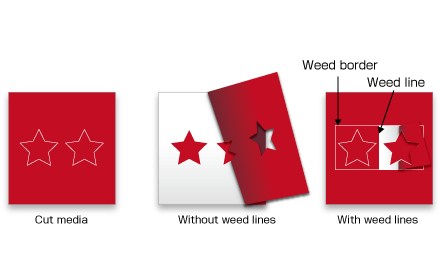

The border line and weeding lines can be added around the cutting object automatically and then it is cut. It makes easier to remove the excess material from the media.

Tool assignment

The Cutting Master 4 is able to assign the tool condition to the each color or the layer. The settings of tool condition as force, speed, quality (acceleration) and others can be set for the each color or the layer. It can be performed in a single job by process of different types.

Supports ARMS 8.0

It supports ARMS (Advanced Registration Mark Sensing system) 8.0. New functions such as supporting crop mark, supporting processing on the reverse side, reversed color mark, Data Link Function etc are available. It enables to enhance usability.
Show Details

Offline operation using the USB flash memory

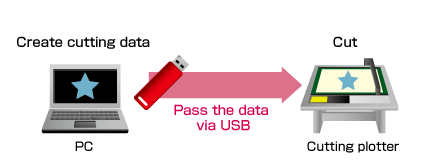

Plot data is created from the design by using Cutting Master 4, then it is saved to USB flash memory. The plot data file can be selected from the USB on the plotter, then cutting is performed. This simplified work-flow enables users to operate without a computer.
* The USB flash memory format only supports FAT32.
　Please note that NTFS and exFAT are not supported.
[Compatible models] FC9000 / CE7000 / CE LITE / FCX4000 / FCX2000

Data management using bar-code with USB flash memory

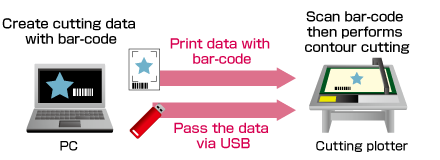

In Print & cut operation, the plot data is automatically selected from USB flash memory by scanning the bar-code printed on the media. Bar-code is created by using Cutting Master 4. This prevents the usage of incorrect data, and improves work efficiency.
* The USB flash memory format only supports FAT32.
　Please note that NTFS and exFAT are not supported.
[Compatible models] FC9000 / CE7000 / FCX4000 / FCX2000

Reverse side Cutting/Creasing using registration marks

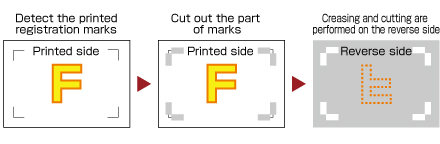

Cutting and creasing can be aligned to the printed graphics even if processing is performed on the reverse side of the media. This prevents any scratches or damage to the printed graphic. Cutting Master 4 is able to configure FCX2000 to execute the process in this condition.
[Compatible models] FCX4000 / FCX2000

Expanded cutting area

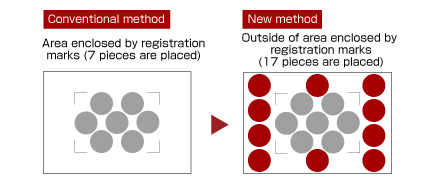

It expands the cutting area to include objects outside of the area enclosed by registration marks. Production efficiency is enhanced by reducing media waste.
[Compatible models] FC9000 / CE7000 / CE LITE / FCX4000 / CE6000 PLUS / FCX2000 / FC8600

Supported by standard crop marks

Cutting is aligned to the printed graphic by printing the industry standard crop marks. Adding special marks with Graphtec software is not necessary. Cutting Master 4 is able to get information of crop mark from Adobe Illustrator and send it to FCX2000.
[Compatible models] FC9000 / CE7000 / FCX4000 / FCX2000

Creating registration marks in reversed color

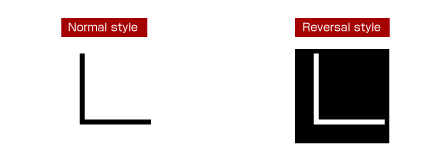

The Cutting Master 4 is able to create the registration marks either one of the normal style or reversal style. The reversal style mark has the reversed color and it is able to detect the mark on the media such as the type of glossy or shiny. It enables to expand the compatible media for the Print & Cut applications.
It able to specify the color of registration mark line and the color of paint around mark after software version 2.10.
(A model that supporting color mark: FC9000 / CE7000 CE LITE-50)
[Compatible models] FC9000 / CE7000 / CE LITE / FCX4000 / CE6000 PLUS / FCX2000 / FC8600
