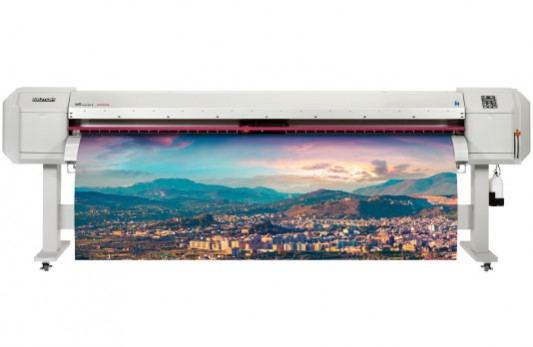

A 2642mm/ 102" Wide High Speed Sign Printer with incredible durability
Discover the MUTOH's VJ-2638X, our second generation 2642mm/102” wide dual head sign & display printer, featuring the latest piezo inkjet head technology & high-precision mechanical design, the latest generation electronics and high quality inks.
In line with our core philosophy to deliver products with technology proven to be faster, more reliable, more cost effective and more efficient, we incorporated our pioneering print automation technology into the VJ-2638X wide format printer to bring you the best equipment for your application.
Targeted at the sign and display market, the MUTOH's VJ-2638X printer is ideal for established sign makers who need extra versatility and for larger operations that want to extend their capacity and flexibility.
The dual head VJ-2638X delivers unrivalled print quality thanks to its high-precision mechanical design, the latest piezo inkjet head technology and an unprecedented level of print automation! Flexible, reliable and able to deliver excellent print quality for volume production, the printer addresses the needs of businesses focusing on both high speed production and top quality print work.
The MUTOH’s VJ-2638X will deliver the best-in-class speed and superior print quality at sellable production speeds up to 48m²/h at 360x720dpi.
Features
- Choice of the MUTOH original eco-solvent inks: Ultra 3A ink or Ultra Value ink (1L-ink bag)
- Up to 7 color capability

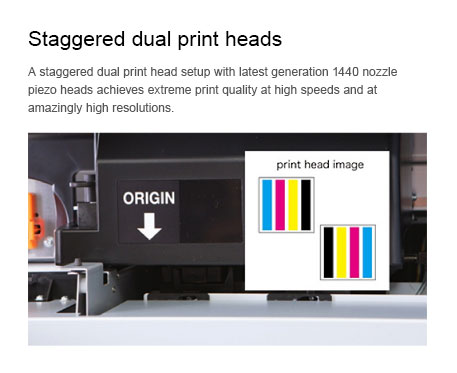

- Staggered dual Print heads
- Variable Dot Technology

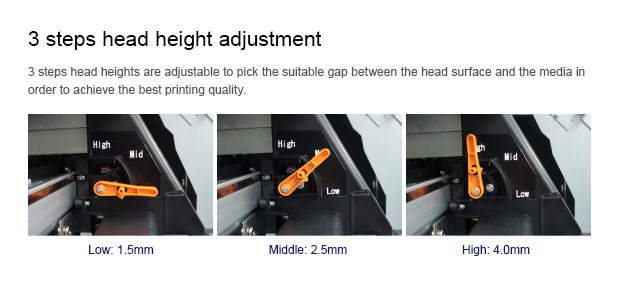

- 3 steps head height adjustment

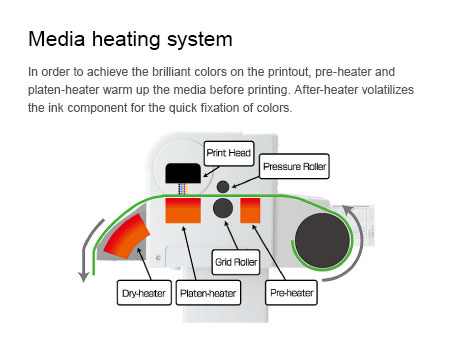

- Media heating system

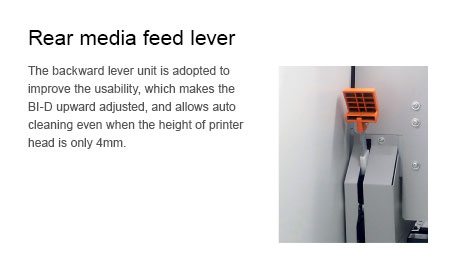

- Rear media feed lever
- Equipped the automatic cutting function
- Heavy-duty Feed and take up system (up to 100kg)

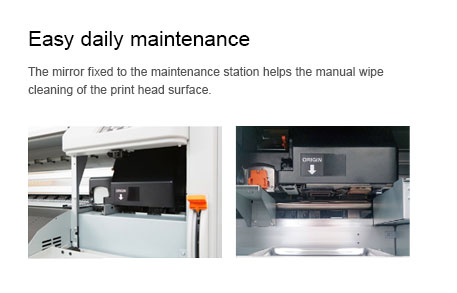

- Easy daily maintenance
Smart Printing Technologies
Applications
Specifications
| Model Name | VJ-2638X | |
|---|---|---|
| Printer Technology | Drop-on-demand Micro Piezo Inkjet Technology | |
| Print Head | 2 (staggered setup) | |
| Head Heights | Low:1.5mm / Middle:2.5mm / High: 4.0mm | |
| Max. Media Width | 2642mm | |
| Max. Print Width | 2632mm | |
| Ink Type | Eco-solvent ink | |
| MSINK 3A ink | Ink Colors | KCMY - 4 colors or KCMYLcLmLk - 7 colors |
| Ink Volume | 220ml / 440ml / 1000ml bag (Need dedicated adapters) Lc, Lm and Lk are only 440ml. |
|
| Ultra Value ink | Ink colors | KCMY - 4 colors or KCMYLcLmLk - 7 colors |
| Ink Volume | 1000ml bag (Need dedicated adapters) | |
| Print Resolutions | 1440/1080/720/540/360dpi (10 modes as standard + 19 modes as custom**) | |
| Interface | Ethernet 1000BASE-T | |
| Media Measurements * | φ250mm/ 2" & 3" / 100kg or less | |
| Heater Control System | Pre-heater / Platen-heater / After-heater（30-50℃）, OFF | |
| Power Supply | AC 100-120 V / AC 200-240 V - 60/50 Hz | |
| A-property Acoustic Power Level (Actual Measured Value) | 69.8dB or less | |
| Printer Accuracy Guaranteed Environment | Temperature: 20～30℃ Humidity: 40～60%RH (Non Condensing) | |
| Power Consumption | Operating Status: 1300W or less x 3 lines, In standby: 160W or less, Feed and take-up system: 60W or less |
|
| Machine Measurements | W 3708 x D 885.5 x H 1261mm | |
| Packing Size | Printer: W 3890 x D 1150 x H 851mm, Weight: 375kg | |
| Stand: W 3260 x D 395 x H 250mm, Weight: 46kg | ||
| Feed and take-up system: W 3898 x D 980 x H 485mm, Weight: 230kg | ||
| Printer Weight | 283kg including a stand | |
| Option | Spectrovue VM-10 | |
| 1,000ml cartridge adapter VJ-HCIPADPT | ||
| White reference VM-WRP | ||
| Cutter blade VJ-CB | ||
*Due to the removal of the flange joint, the 2-inch media core can be adjusted; however, do not use the solid 2-inch core media.
**Custom modes are set by the RIP software. For the details, please contact your authorized dealer.
