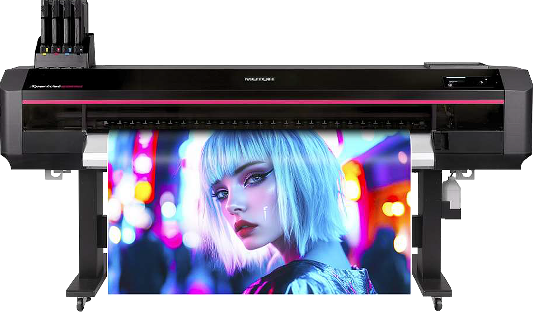

64”/1,625mm wide eco-solvent printer
XpertJet 1641SR Pro II is a single-head model that combines The New AccuFine HD Pro print head with eight nozzle rowsthat allow for close placement of the same ink color, with the newly developed print control system i-Screen EX System,to achieve both highdifinition ink placement and smooth gradation expression, resulting in outstanding image quality.Furthermore, print speed has been improved, achieving productivity of 17.63 m²/h in the Production printing mode,which is top class among four-color models.
XpertJet 1641SR Pro II delivers the highest “Made in Japan quality” to a variety ofmarkets, including indoor and outdoorsignage, exhibition graphics, car wrapping, and POP advertising.
Key Features
- 64-inch (1,625mm) wide-format eco-solvent printer.
- Versatile media handling: Adjustable pinch roller pressure to accommodate different media types.
- Industry-leading speeds: Prints at speeds up to 8.79m²/hr (high quality) or 17.63m²/hr (production speed).
- Exceptional print quality: The AccuFine printhead delivers sharp images and vibrant colors.
- Eco-friendly ink: Uses MUTOH's GREENGUARD Gold certified ink, which is safe for health.

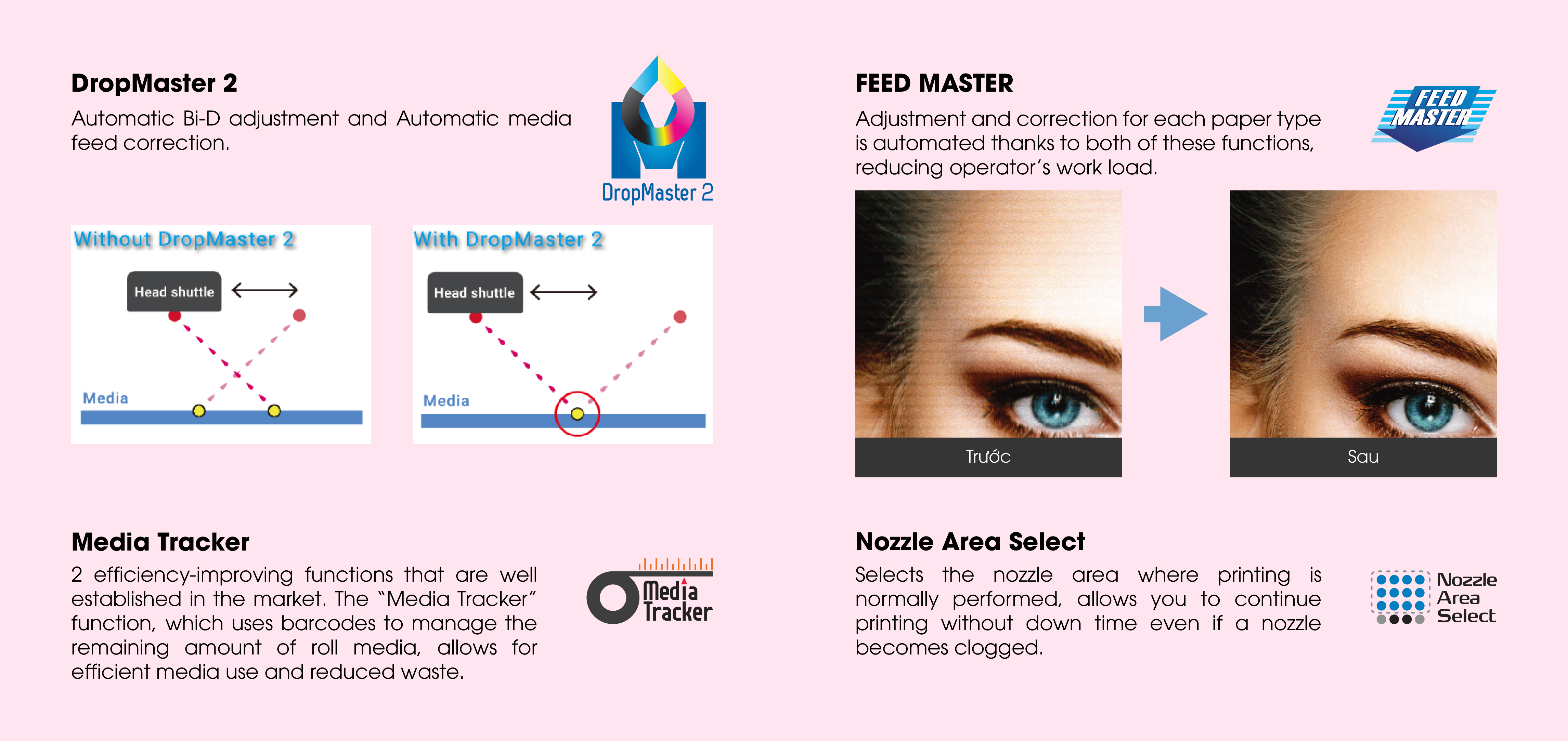

- Maximum user support: Automatic alignment, media feed adjustment, and tracks the remaining media on the roll.
Intelligent printing technology
Applications
Explore the power of the XpertJet 1641SR Pro II

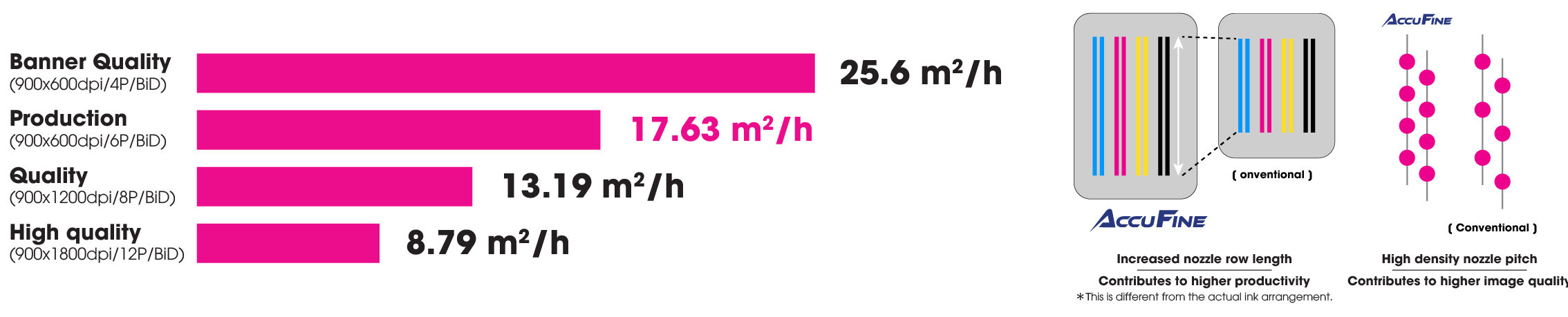

Printing Speed
The new AccuFine HD Pro print head together with the new print control system i-Screen EX System delivers high image quality and top-class productivity of 17.63 m²/h
User-friendly platform, stable operation

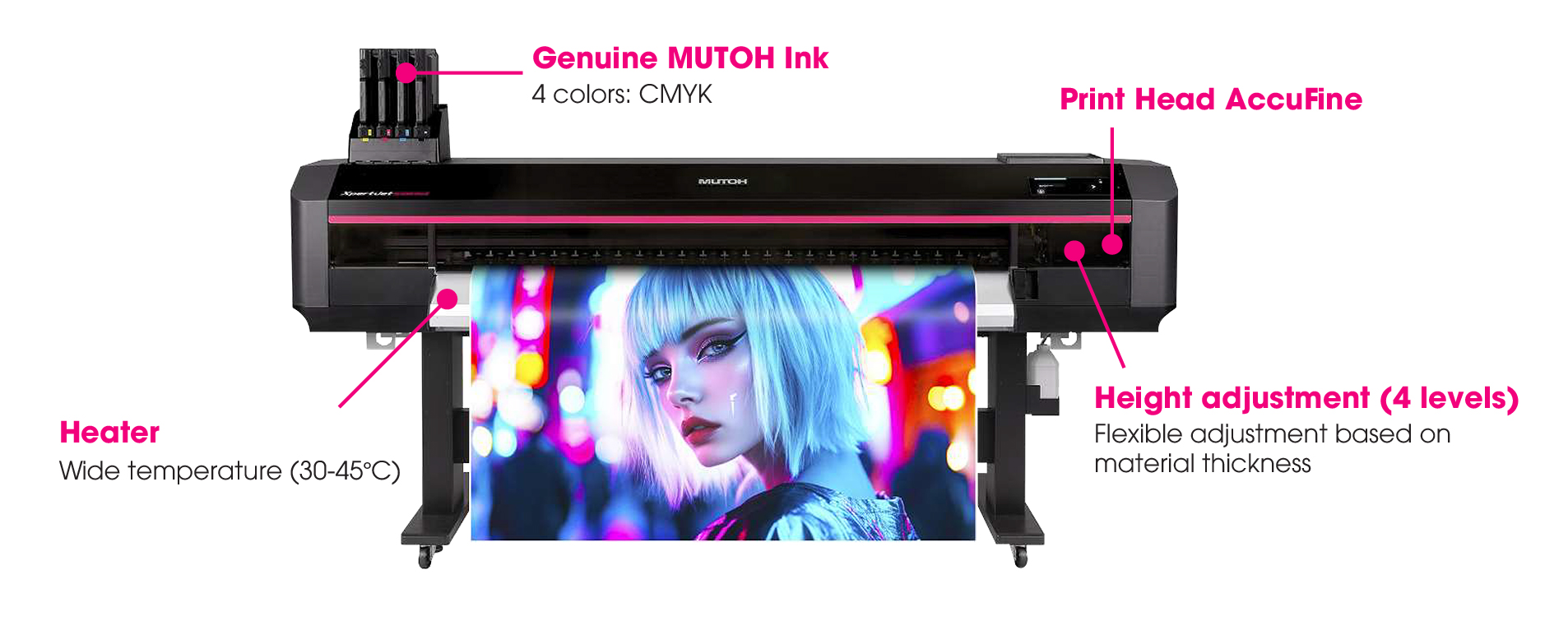

Easy installation, refined design.
MUTOH WIDE COLOR CHOICE
The original wide color gamut profile MUTOH Wide Color Choice focuses on dark color areas that were previously difficult to reproduce, expanding the range of color reproduction. It maximizes the ink color reproduction, delivering more vivid “reds” and deeper “blacks” than ever before.
Precise ink dot placement
It achieves high image quality thanks to extremely precise ink dot placement.

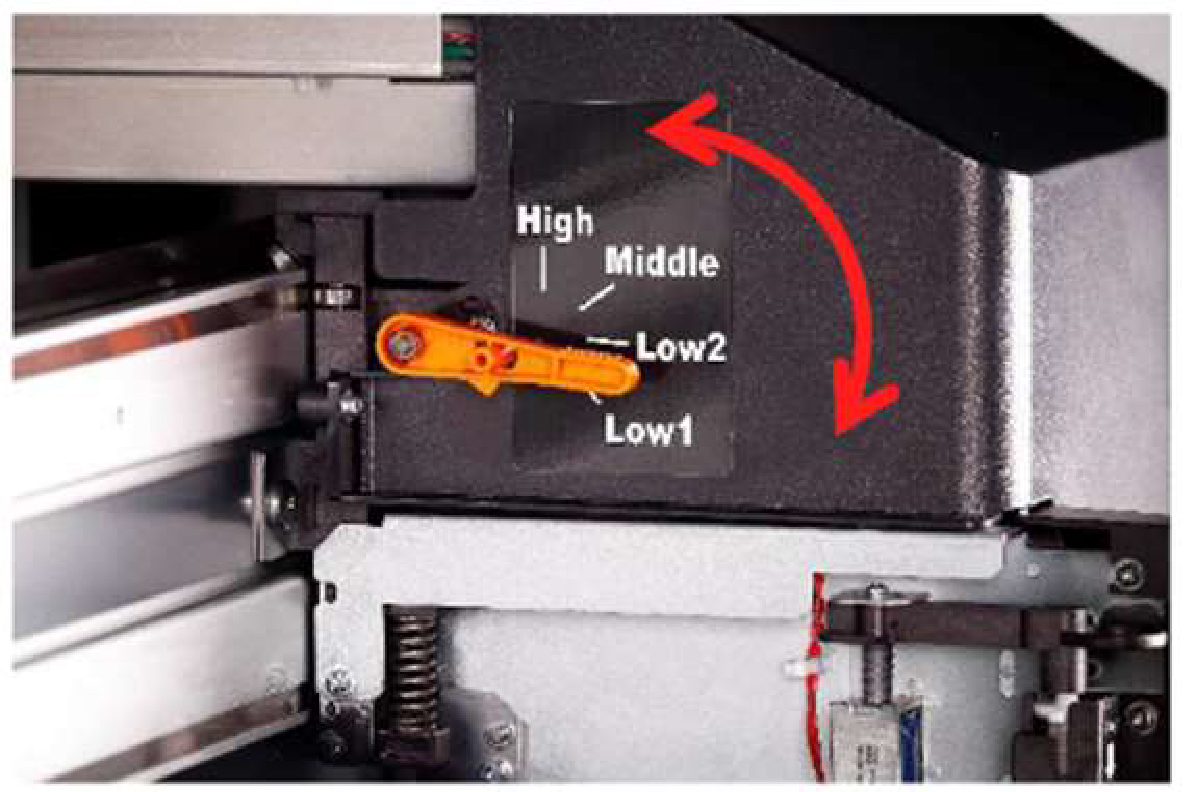

One-touch print head adjustment function.
The print head height can be easily adjusted to four levels (1.5mm, 2.0mm, 2.5mm, 4.0mm) by operating the lever.
By selecting the print head height that is optimal for the media you are using, compatibility with the media is improved, the risk of contact isreduced, and consistent print quality is achieved.

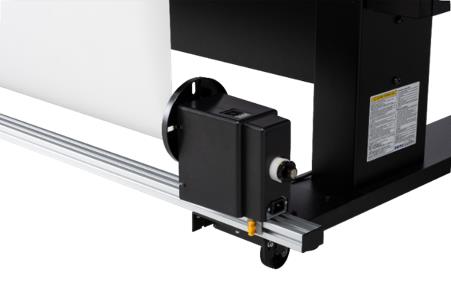

Take-up unit
This model supports a take-up unit (for media up to 30 kg) that starts and stops winding with to the printing.
Compatible with genuine VerteLith RIP software
Genuine MUTOH Ink
This genuine ink is specifically designed for MUTOH's eco-solvent inkjet printers, offering a wide color gamut and excellent high-quality printing capabilities. Prints are highly durable, with resistance to weather, abrasion, and chemicals. The advanced ink formulation reduces nozzle clogging, minimizing maintenance. VJ-MS31 is "GREENGUARD Gold" certified, safe for the environment, and ideal for indoor applications.
Ink set: 4 colors (CMYK)
Packaging: 1000ml ink bag
UL - GREENGUARD Gold Certification
Specifications
| Print method | On-demand piezo drive system | |
|---|---|---|
| Number | 1 | |
| Resolution | AccuFine: 1200dpi - Max: 900x1200dpi | |
| Height adjustment | Low1: 1.5mm, Low2: 2mm, Middle: 2.5mm, High: 4mm | |
| Roll media width | Maximum: 1,625mm | Minimum: 500mm | |
| Max. thickness | Recommended 1.0mm or less | |
| Diameter | 200mm or less | |
| Core diameter | 2 or 3 inches | |
| Weight | 30kg or less | |
| Ink type | Eco-solvent | |
| Color | KCMY-4 colors | |
| Capacity | 1000ml ink bag (adapters) | |
| Interface | Ethernet (10BASE-T/100BASE-TX) | |
| Power supply | AC 100-120 V / AC 200-240 V - 60/50 Hz | |
| Print Environments | Temperature: 20oC~32oC Humidity: 40~60%RH no condensation |
|
| Power Consumption | 812.0W or less (Peak: 2.3kW or less) | |
| Dimensions |
2,770mm x 895mm x 1,611mm |
|
| Weight | 173kg (Printer body: 141kg Stand: 32kg) | |
| RIP software | VerteLith | |
**Custom settings are established by the RIP software. Please contact your authorized distributor for more information.
