A Compact 630mm/24” Wide Desktop Printer for professional results, offering up to 6 colors

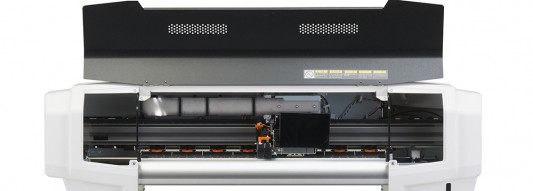

The VJ-628 is MUTOH’s smallest sign & display printer offering a great potential to startup businesses, small sign makers, department stores and quick print providers. Offering a media width of 630mm /24”, the compact, user-friendly & cost-effective ValueJet 628 has been developed for a wide array of applications ranging from in-store printing, commercial print, signage and print-to-cut jobs.
Equipped with the latest generation micro piezo print head, this 8 channel desktop printer delivers high quality prints for indoor & outdoor applications. You can easily and efficiently create a variety of applications including stickers, decals, banners, indoor and outdoor signage
Features:
- Print with the MUTOH original eco-solvent inks: Ultra 3A ink
- Up to 6 colors; CMYK, Lc, Lm
- Small footprint, table top or use with optional stand
- Variable Dot Technology
- Equipped the new temperature controlled heater (maximum setting: 45 degrees)
- 2 steps head height (1.2mm or 2.5mm)
- Equipped with the automatic cutting function
- All-in-one CD for easy one step installation
- Optional take-up unit
Smart Printing Technologies:
Applications
Specifications
| Model Name | VJ-628 | |
|---|---|---|
| Print Technology | Drop-on-demand Micro Piezo Inkjet Technology | |
| Print Head | 1 | |
| Head Heights | Low:1.2mm / High: 2.5mm | |
| Max. Media Width | 630mm | |
| Max. Print Width | 620mm | |
| Ink Type | Eco-solvent ink | |
| Ink Colors | KCMY-4 colors, KCMY, Lc, Lm- 6 colors | |
| Ink Volume | KCMY,Lc,Lm:220ml KCMY,Lc,Lm:1000ml bag (Need dedicated adapters) |
|
| Print Resolutions | 1440/1080/720dpi (12 modes as standard + 19 modes as custom**) | |
| Interface | Ethernet (10BASE-T/100BASE-TX) | |
| Media Measurements | φ150mm/ 2" & 3" / 9kg or less | |
| Heater Control System | Platen-heater （45℃）, OFF | |
| Power Supply | AC 100-120 V / AC 200-240 V - 60/50 Hz | |
| A-property Acoustic Power Level (Actual Measured Value) | 58.5dB or less | |
| Printer Accuracy Guaranteed Environment | Temperature: 20～30℃ Humidity: 40～60%RH (Non Condensing) | |
| Power Consumption | Operating Status: 830W or less, Power-off: 1W or less | |
| Machine Measurements | W 1190 x D 437.5 x H 365.6mm | |
| Packing Size | Printer: W 1331 x D 559 x H 476mm, Weight: 36kg | |
| Optional tand: W 755 x D 832 x H 235mm, Weight: 14kg | ||
| Printer Weight | Printer: 31.8kg Stand: 8.7kg (option) | |
| Option | VJ06‐TUP10（10kg） | |
| VJ628-STD | ||
| Spectrovue VM-10 | ||
**Custom modes are set by the RIP software. For the details, please contact your authorized dealer.
