The MUTOH's new 1910 mm/75” Wide Water-based Inkjet Printer with 4 staggered print heads opens a new era of high production dye-sublimation printing

The MUTOH's VJ-1948WX, newly developed high speed dye-sublimation inkjet printer effortlessly delivers the best-in-class speed and superior print quality.
Staggered 4 print head-setup enables high-speed printing and improved productivity, the VJ-1948WX achieves a maximum print speed of 117.3m²/h*.

With the addition of new custom modes, the options of the printing function are significantly widened.

The large dual heaters are incorporate on the rear side of the front paper guides, and it provides fast dry times and accelerates production speeds.

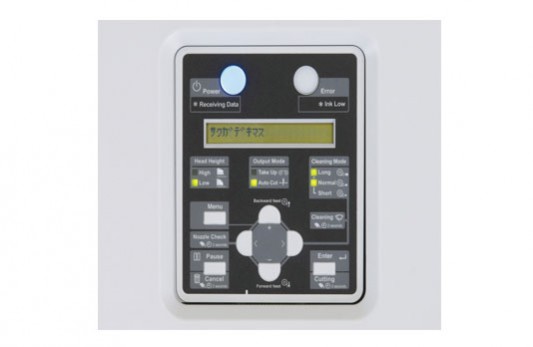

A special feature of the ValueJet Status Monitor (VSM), the ValueJet Print Server (VPS) provides high-speed and stable printing.

Creates scarves, blankets, promotional items, trade show graphics, flags, banners, custom interior designs, apparel, sports uniforms and more.
*at 360x720dpi



Features

Smart Printing Technology

DropMaster pageimage vsm logo spt logo 01

Applications

apparel PromotionalTrade showflagsinterior decor1signage1

Mutoh ValueJET VJ-1948WX Introduction

Specifications

Model Name VJ-1948WX
Print Technology Drop-on-demand Micro Piezo Inkjet Technology
Print Head 4 (staggered setup)
Head Heights Low:1.5mm / Middle:2.5mm / High: 4.0mm
Max. Media Width 1910mm
Max. Print Width 1900mm
Ink Type Water based dye-sublimation transfer ink
MUTOH water based dye-sublimation inkInk Colors KCMY - 4 colors or KCMYLcLmLkLLk - 8 colors
Ink Volume 1000ml bag/2000ml bag (in preparation) Need dedicated adapters
Print Resolutions 1440/1080/720/360dpi (10 modes as standard + 19 modes as custom)
Interface Gigabit-Ethernet(1000BASE-T)
Media Measurements* φ150mm/ 2" & 3" / 30kg or less
Heater Control System Heaters(30-50℃), OFF
Power Supply AC 100-120V/AC 200-240V - 60/50 Hz
A-property Acoustic Power Level (Actual Measured Value) 69.8dB or less
Printer Accuracy Guaranteed Environment Temperature: 20~30℃ Humidity: 40~60%RH (Non Condensing)
Power Consumption Operating Status:600W or less, In standby: 91W or less
Machine Measurements W2983 x D966 x H1261mm (including a stand)
W2983 x D1334 x H1261 mm (including a stand + feed and take-up system)
Packing Size Printer: W3165 x D1150 x H900mm, Weight: 268kg
Stand: W2462 x D395 x H250mm, Weight: 42kg
Feed and take-up system (100kg): W2780 x D1080 x H433mm, Weight: 159kg
Weight printer: 164kg Stand: 37kg Feed and take-up system: 89kg
Option Feed and take-up sysetem VJ-19TUP100 (100kg)
Take-up system VJ-16/19TUP30 (30kg)
1,000m/2000ml Ink Bag Case (8 pieces) VJ1948-INKCASE
Cutter blade VJ-CB

*Due to the removal of the flange joint, the 2-inch media core can be adjusted; however, do not use the solid 2-inch core media
