The MUTOH's 1910 mm/75” Wide Water-based Inkjet Printer with staggered dual print heads is perfect for high-production dye-sublimation and direct printing to applications

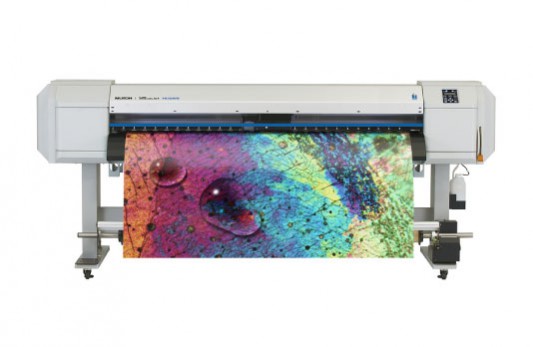

The MUTOH's VJ-1938WX, high speed water-based inkjet printer effortlessly delivers the best-in-class speed and superior print quality at sellable production of 52m²/h*.
Creates scarves, blankets, promotional items, trade show graphics, flags, banners, custom interior designs, apparel, sports uniforms and more. The VJ-1938WX provides outstanding performance at a competitive price, making it the smart printer choice for shops looking to expand applications, increase production and improve efficiency.
In today’s competitive market place you need a printer that is simple to learn and easy to run. The VJ-1938WX provides a low maintenance learning curve with no complicated operating issues.
*at 360x720dpi
Features
- MUTOH water-based pigment ink or water-based dye-sublimation ink
- 4 color capability
- Staggered dual print heads
- Variable Dot Technology
- 3 steps head height adjusment
- Rear media feed lever
- Automatic sheet off function
- Easy daily maintenance
Smart Printing Technology
Applications
Specifications
| Model Name | VJ-1938WX | |
|---|---|---|
| Printer Technology | Drop-on-demand Micro Piezo Inkjet Technology | |
| Print Head | 2 (staggered setup) | |
| Head Heights | Low:1.5mm / Middle:2.5mm / High: 4.0mm | |
| Max. Media Width | 1910mm | |
| Max. Print Width | 1900mm | |
| Ink Type | Water-based pigment ink / Sublimation transfer ink | |
| Water-based pigment ink | Ink Colors | KCMY - 4 colors |
| Ink Volume | 220ml cartridge | |
| Sublimation transfer ink | coming soon | |
| Print Resolutions | 1440/1080/720/360dpi (10 modes as standard + 19 modes as custom**) | |
| Interface | Ethernet 1000BASE-T | |
| Media Measurements * | φ150mm/ 2" & 3" / 30kg or less | |
| Heater Control System | N/A | |
| Power Supply | AC 100-240V - 60/50 Hz | |
| A-property Acoustic Power Level (Actual Measured Value) | 69.8dB or less | |
| Printer Accuracy Guaranteed Environment | Temperature: 20～30℃ Humidity: 40～60%RH (Non Condensing) | |
| Power Consumption | Operating Status: 160W or less, In standby: 40W or less | |
| Machine Measurements | W 2983 x D 885.5 x H 1261mm | |
| Packing Size | Printer: W 3165 x D 1150 x H 851mm, Weight: 257kg | |
| Stand: W 2462 x D 395 x H 250mm, Weight: 42kg | ||
| Optional feed and take-up system (100kg): W 2780 x D 1080 x H 433mm, Weight: 159kg | ||
| Printer Weight | 194kg including a stand | |
| Option | Feed and take-up system VJ-19TUP100 (100kg) | |
| Take-up system VJ-16/19TUP30 (30kg) | ||
| 1,000ml bottle bulk system adapters | ||
| Cutter blade VJ-CB | ||
*Due to the removal of the flange joint, the 2-inch media core can be adjusted; however, do not use the solid 2-inch core media.
**Custom modes are set by the RIP software. For the details, please contact your authorized dealer.
