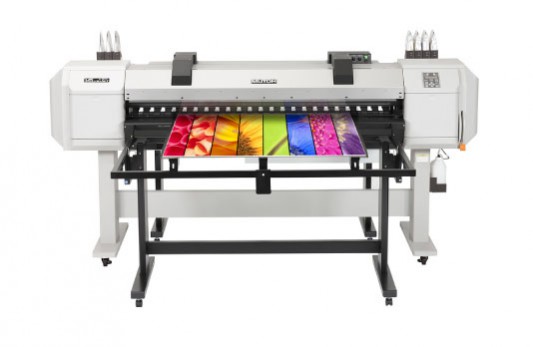

A 1625mm/64” wide, versatile rigid & roll-to-roll large format printer with MUTOH’s Bio-based Multi-Purpose ink (MP11 ink)
The VJ-1617H hybrid printer delivers high quality prints on a wide variety of roll and rigid media, such as ABS, aluminium sandwich board, cardboard, non-pvc self-adhesive media, PE, PET, PMMA, PP, PVC foam board, recyclable fibre-based paper, uncoated polyester, uncoated Tyvek, etc..
The VJ-1617H utilizes MUTOH’s Bio-based Multi-Purpose ink (MP11 ink). The MP11 CMYK + White inks are non-petrochemical based. The key carrier, comprising 50 % of the ink, is derived from corn.
The MP Ink does not only give you high performance on rigid media, it also prints beautifully on roll surfaces with an exceptionally wide color gamut.
The VJ-1617H is designed for start-up companies as well as established print businesses wanting short run production of roll prints and panel creation for close viewing distances. It is the versatile, economic option that reduces impact on the environment.
The VJ-1617H is the obvious choice for print providers who supply customers demanding “green output” (recyclable media).
Features
- 1625mm/64" hybrid printer
- MUTOH’s Bio-based Multi-Purpose ink (MP11 ink)
- CMYK + White ink capability
- White ink circulation system integrated
- Variable Dot Technology

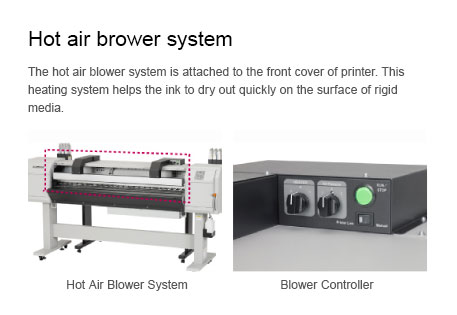

- Hot air brower system
- Automatic media thickness measurement & head height adjustment up to 15mm

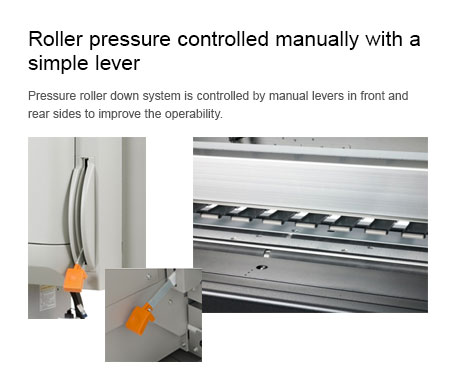

- Roller pressure controlled manually with a simple lever
- Rigid front and rear tables(option)

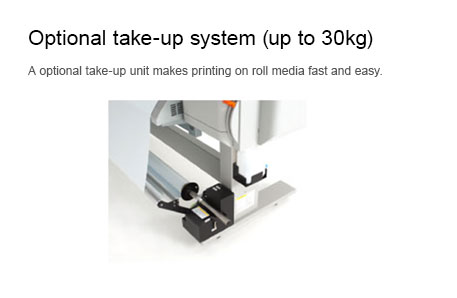

- Optional take-up system (up to 30kg)
Smart Printing Technologies:
Applications
Specificaions
| Model Name | VJ-1617H | |
|---|---|---|
| Printer Technology | Drop-on-demand Micro Piezo Inkjet Technology | |
| Print Head | 1 | |
| Head Heights | Automatic | |
| Max. Media Width | 1625mm | |
| Max. Print Width | 1615mm | |
| Max. Media Thickness | 15mm | |
| Roll Media Measurements* | φ150mm/ 2" & 3" / 30kg or less | |
| Rigid Media Measurements | Maximum length: 1200mm, Minimum length: 200mm / 15kg or less | |
| Ink Type | Bio-based Multi-Purpose ink (MP11 ink) | |
| Ink Colors | KCMY – 4 colors x 2, KCMY＋white | |
| Ink Volume | KCMY: 950ml bag, White: 500ml bag (Need dedicated adapters) | |
| Print Resolutions | 1440/1080/720dpi (6 modes as standard + 18 modes as custom**) | |
| Interface | Ethernet (10 Base-T/100 Base-TX) | |
| Heater Control System | "Equipped with blower heater Full width 64"" air knife Temperature range: 65° - 75° - 85°C (air temp) Typical media surface temperature : 50 °C or lower" |
|
| Power Supply | AC 100-240V - 60/50 Hz | |
| A-property Acoustic Power Level (Actual Measured Value) | 64.8dB or less | |
| Printer Accuracy Guaranteed Environment | Temperature: 22～28℃ Humidity: 40～60%RH (Non Condensing) | |
| Power Consumption | Operating Status: 300W or less, In standby: 40W or less Blower Heater:2200W or less, In standby: 25W or less |
|
| Machine Measurements | W 2698 x D 818 x H 1302 mm | |
| Machine Measurements with media feeding table (option) | W 2698 x D 2486 x H 1302 mm | |
| Packing Size | W2880 x D1150 x H850mm, Weight: 266.5kg | |
| Media feeding table F/R: W 1770 x D 1160 x H 215mm, Weight: 57kg | ||
| W2245 x D395 x H250mm, Weight: 36kg | ||
| Take-up unit: W 2555 x D 316 x H 286mm, Weight: 13.4kg | ||
| Main Unit Weight | Printer: 167.5kg Stand: 33kg Table: 43kg Take-up system: 18kg | |
| Option | Take-up system VJ-16 TUP30 (30kg) | |
| Media feeding table for rigid media | ||
| Media support | ||
| High capacity ink pack adapter VJ-HCIPADPT | ||
*Due to the removal of the flange joint, the 2-inch media core can be adjusted; however, do not use the solid 2-inch core media.
**Custom modes are set by the RIP software. For the details, please contact your authorized dealer.
