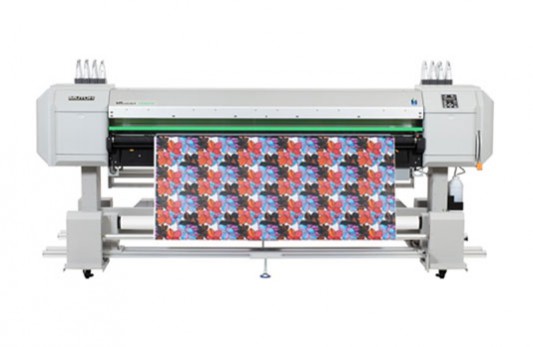

A 1910mm/ 75” Wide Direct-to-Textile Printer is made for high-production & high-quality printing
Enter the world of textile printing with the 1910mm/ 75” wide VJ-1938TX direct-to-textile printer from MUTOH. The VJ-1938TX will print designs and photographic art work directly onto a variety of fabrics including closed, open non-stretch, face-in and face-out roll media. The VJ-1938TX is suited for the production of high quality company flags, country flags, beach flags, personalised advertising, textile gadgets, clothing as well as home decoration fabrics.
It’s high-quality engineering, MUTOH Smart Printing Technologies, wide print area and fast print speeds are only a few of the features that make the VJ-1938TX a valuable addition to any print shop looking to enter or expand their textile printing applications.
The VJ-1938TX employs 2 heads for blazing fast print speeds up to 52m²/h* ! 8 channel piezo print head technology helps make the images stand out and look sharp to even the most discerning viewers.
*at 360x720dpi
Features
- 1910mm/75" direct to textile printer
- MUTOH textile pigment ink (1L-ink bag)
- Up to 8 color capability
- Staggered dual print heads
- Variable Dot Technology

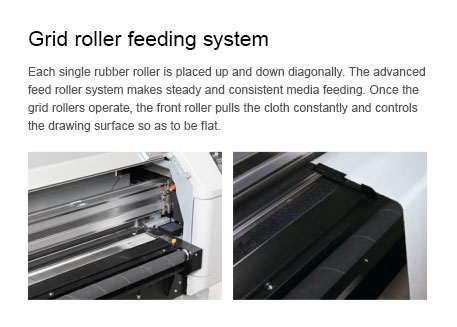

- Grid roller feeding system

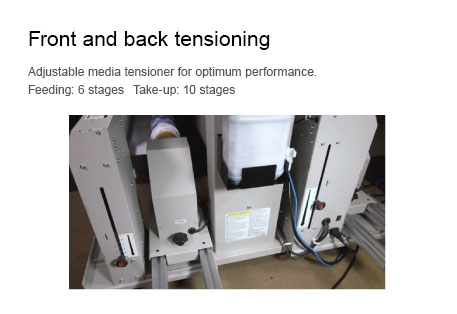

- Front and back tensioning

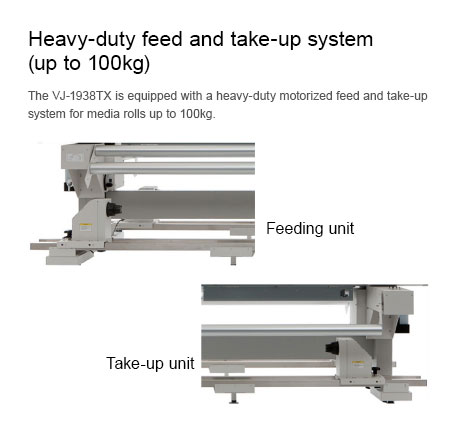

- Heavy-duty feed and take-up system (up to 100kg)

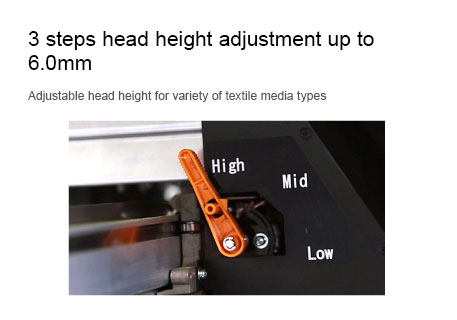

- 3 steps head height adjustment up to 6.0mm
- Easy daily maintenance
Smart Printing Technologies:
Applications
Specifications
| Model Name | VJ-1938TX | |
|---|---|---|
| Printer Technology | Drop-on-demand Micro Piezo Inkjet Technology | |
| Print Head | 2 (staggered setup) | |
| Head Heights | Low:2.5mm / Middle:3.5mm / High: 6.0mm | |
| Max. Media Width | 1910mm | |
| Max. Print Width | 1900mm | |
| Ink Type | Textile pigment ink | |
| Ink Colors | KCMY - 4 colors or KCMY+OR・GR・BL - 7 colors | |
| Ink Volume | 1000ml bag (Need dedicated adapters) | |
| Print Resolutions | 1440/1080/720/540/360dpi (10 modes as standard + 19 modes as custom**) | |
| Interface | Ethernet 1000BASE-T | |
| Media Measurements * | φ250mm/ 2" & 3" / 100kg or less | |
| Heater Control System | N/A | |
| Power Supply | AC 100-240V - 60/50 Hz | |
| A-property Acoustic Power Level (Actual Measured Value) | 69.8dB or less | |
| Printer Accuracy Guaranteed Environment | Temperature: 22～30℃ Humidity: 40～60%RH (Non Condensing) | |
| Power Consumption | Operating Status: 360W or less, In standby: 66W | |
| Machine Measurements | W2983 x D1134 x H1261mm | |
| Packing Size | Printer: W3165 x D1150 x H851mm, Weight: 285kg | |
| Stand: W2462 x D395 x H250mm, Weight: 42kg | ||
| Feed and take-up system (100kg): W3165 x D1150 x H 433mm, Weight: 210kg | ||
| Printer Weight | Printer: 177kg / Stand: 37kg / Feed and take-up system: 210kg | |
| Option | 1,000ml cartridge adapter VJ-HCIPADPT | |
*Due to the removal of the flange joint, the 2-inch media core can be adjusted; however, do not use the solid 2-inch core media.
**Custom modes are set by the RIP software. For the details, please contact your authorized dealer.
