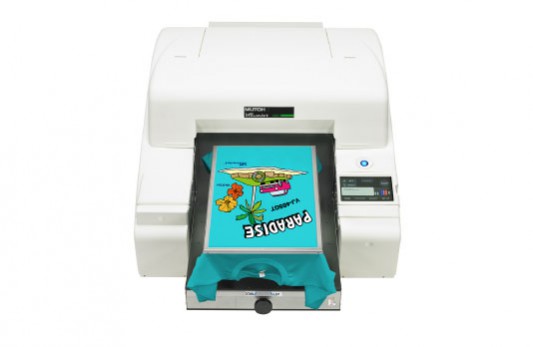

High-quality desktop direct-to-garment Printers, selectable 4 colors + white or 4 colors
The MUTOH's VJ-405GT desktop direct to garment printers are specifically targeted at fashion designers, promotional garment printers, online webshop businesses as well as screen printers. The VJ-405GT/404GT are suited for sampling, customised one-off prints such as short-run production of t-shirts, canvas bags, etc..
The VJ-405GT has CMYK + White ink on board - with a dedicated ink circulation system for the white - for the digital production of dark coloured and light coloured garments.
In line with our core philosophy to deliver products with technology proven to be faster, more reliable, more cost effective and more efficient, we incorporated our pioneering print automation technology into the VJ-405GT inkjet printers to bring you the best equipment for your application.
T-shirt printing fun starts with the MUTOH VJ-405GT!
Features
- High Quality 4-Color/5color direct-to-garment printers
- Small footprint, table top, fits easily into any print shop

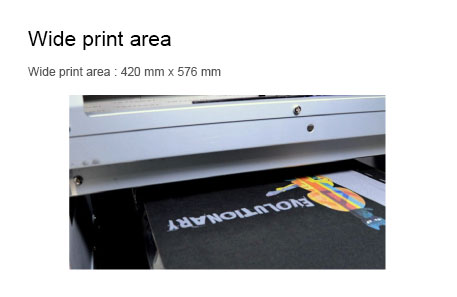

- Wide print area
- MUTOH original garment ink with vibrant colors & excellent ink density

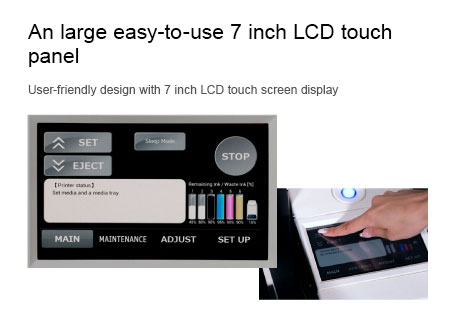

- An large easy-to-use 7 inch LCD touch panel

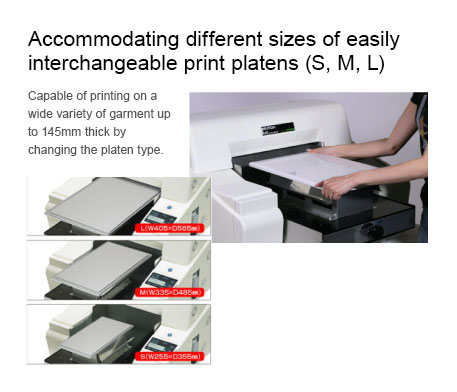

- Accommodating different sizes of easily interchangeable print platens (S, M, L)
- All-in-one CD for easy one step installation
- Flexibility to customize jigs
- White ink circulation system integrated
Applications
Mutoh Garment printers_full_version
Mutoh Garment printers_short_version
Specifications
| Model Name | VJ-405GT | VJ-404GT | |
|---|---|---|---|
| Printer Technology | Drop-on-demand Micro Piezo Inkjet Technology | ||
| Print Head | 4 | ||
| Head Height Adjustment | 15mm | ||
| Max. Media Size | 428 x 600 mm | ||
| Max. Print Size | 420 x 576 mm | ||
| Ink Type | Garment ink | ||
| Ink Colors | KCMY+white* -5 colors | KCMY - 4 colors | |
| Ink Volume | 200ml | ||
| Print Resolutions | 600 x 600 dpi, 600 x 1200 dpi, 1200 x 1200 dpi | ||
| Print Tables - Sizes | Table L : 405 x 585 mm (Printable : 380 x 560 mm) | ||
| Table M : 335 x 485 mm (Printable : 310 x 460 mm) ** | |||
| Table S : 255 x 355 mm (Printable : 230 x 330 mm) | |||
| Acquired Standard（EMC） | VCCI（ClassA）、FCC（ClassA）、Canada ICES-003 | ||
| Safety Standard | MET、CE、CB Report | ||
| Environmental Standard | Compliant with Mutoh Green Procurement Standard and RoHS directive | ||
| Connectivity | LAN(10/100BASE-T) | ||
| Power Supply | AC 100-120V - 60/50 Hz | ||
| A-property Acoustic Power Level (Actual Measured Value) | 58.2dB or less | ||
| Printer Accuracy Guaranteed Environment | Temperature: 22～30℃ Humidity: 40～60%RH (Non Condensing) | ||
| Power Consumption | Operating Status: 130W or less, In standby: 29W or less | ||
| Machine Measurements | W817 x D1425 x H488mm | ||
| Packing Size | Printer: W1470 x D1010 x H720mm, Weight: 106kg | ||
| Printer Weight | 83kg | ||
* To prevent the sedimentation, agitating white ink in the cartridge are required once everyday before printing.
