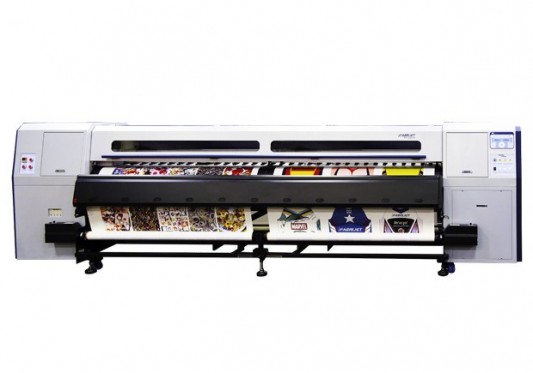

3.2m hybrid textile printer for
papers and fabrics
FABRIJET Series
FT-3204X
SPEED
Max 150m2/h
Resolution
Max 720 x 1,440 DPI
Print Width
3.2m
Print Head
4 color / 8 head
3.2m Hybrid textile printer
Prints on both papers and fabrics.
For soft signage, home textile, and exhibition displays applications.

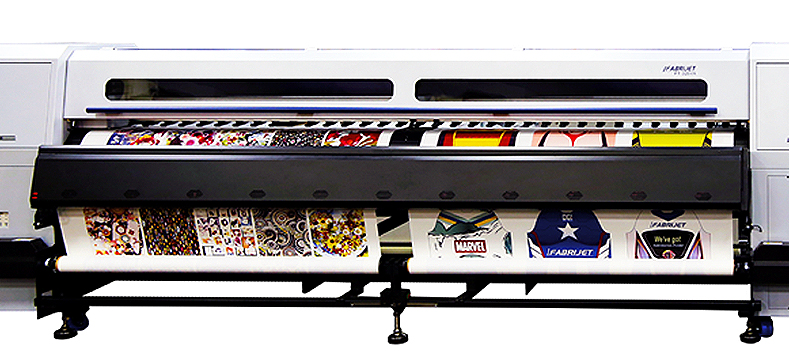

Dual roll printing system
2 different images can be printed on 2 different rolls of
sublimation papers
Best value wide format textile printer.
More productive with more competitive price than its competitors.
Specifications
| Print head | Piezo type print heads | |||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ink | DGI Original Dye Sublimation Ink | |||||||||||||||||||||||||||||||
| Drop Size | 3~21 Pico liter Variable dots | |||||||||||||||||||||||||||||||
| Media | Transfer Paper | |||||||||||||||||||||||||||||||
| Max Print Width | 3,320mm | |||||||||||||||||||||||||||||||
| Max Media Width | 3,370mm | |||||||||||||||||||||||||||||||
| Print Mode | Uni/Bi, Normal/Interleave I,II | |||||||||||||||||||||||||||||||
| Interface | TCP / IP | |||||||||||||||||||||||||||||||
| Resolution(DPI) | Max 720 x 1,440 DPI | |||||||||||||||||||||||||||||||
| Rip Software | Wasatch TX, Ergosoft(driver available), Caldera(driver available) | |||||||||||||||||||||||||||||||
| Color | 4 Colors (Cyan, Magenta, Yellow, Black) | |||||||||||||||||||||||||||||||
| Operating environment | Temperature : 22~28℃ Humidity : 40~70% | |||||||||||||||||||||||||||||||
| Electricity | Single Phase : 220V (50/60Hz, AC) Printer : 5A, 6.6Kw 건조기 : 20A | |||||||||||||||||||||||||||||||
| Dimensions | Uncrated : 5.020mm(L) x 1,050mm(W) x 1,560mm(H) Crated : 5.200mm(L) x 1,150mm(W) x 1,940mm(H) | |||||||||||||||||||||||||||||||
| Weight | Uncrated : 940Kg Crated : 1,640Kg | |||||||||||||||||||||||||||||||
| Option | Dual roll printing system – 1.6m x 2 rolls loadable | |||||||||||||||||||||||||||||||
| Print Speed |
|
Applications
Banner
Soft signage
Hanging banners
