High productivity and
High image quality
Ability to print on various media
Key Features
- Máy in phẳng LED-UV 6 màu khổ 1420mm x 700mm.
- Đèn tiết kiệm năng lượng LED-UV
- Mực in MUTOH's LED-UV UH21, US61, hoặc mực tương thích.
- CMYK + Trắng và Bóng (Varnish)
- Tích hợp hệ thống tuần hoàn mực
- Công nghệ biến đổi điểm
- Tùy chỉnh độ cao bàn hút Tự động (độ dày tối đa: 150mm)
- Tích hợp bàn hút chân không
- Bảng điều khiển Cảm ứng
- Ứng dụng bản vẽ hình ảnh "Layout and Print Tool 2"(có mặt từ tháng 8/2017)
- Ứng dụng in bản vẽ "ValueJet Layer Editor"
Intelligent printing technology
Applications
|
HIGH QUALITY AND HIGH IMAGE QUALITY |
||||||
| Two new 4" wide UV-LED lamps | Dual print heads in a staggered setup | High rigid & high-precise chassis | ||||

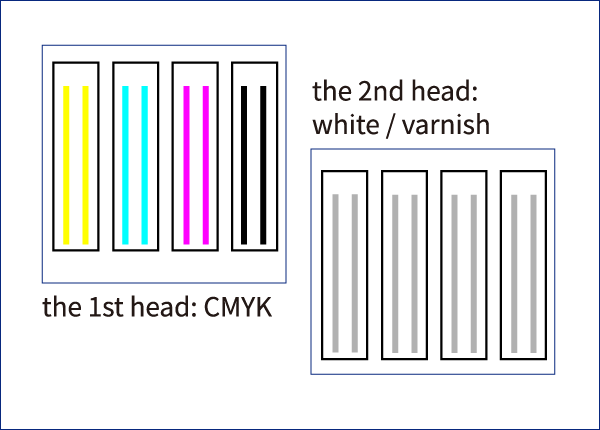

| Newly developed 4-inch wide UV-LED lamps are placed on both sides of the print head to achieve high productivity through bi-directional printing. The UV LED local dimming control technology enables optimal curing for each printing condition. | The first head prints CMYK, the second head prints white & varnish which enable 2-layer printing without speed loss. It is also ideal for braille and 2.5D structure prints. | Highly rigid and precise chassis and MUTOH’s high precision aluminum rail mechanism deliver high ink dot placement accuracy. It enables stable and high-quality printing. | ||||
 |
 |
 |
||||
| High productivity with a maximum printing speed of 7.75m²/h | ||||||
 |
||||||
| Application samples | ||||||
 |
 |
 |
||||
| Photo flame: layer printing | Indoor signage: 2.5D printing | Name plate: Character and line printing accuracy *Printed on Versamet Digital Print Metal from Rowmark |
||||
|
ABILITY TO PRINT ON VARIOUS MEDIA |
||||
| 4 zone vacuum table | ||||
| The XPJ-1462UF supports media size of 1,420mm x 700mm (55.9" x 27.5") and can be used for a wide range of applications from large signage to small item printing. It can also be used with materials up to 150mm (5.9") thick and with heavy media and jigs to improve work efficiency. The 4 zone vacuum table, which can be configured for single or multiple area vacuum suction, securely holds a wide variety of media sizes. The suction force can be selected from four levels (high, medium, low, and off). | ||||
|
Max. media thickness:150mm / 5.91"Max media weight:50kg/m² |
|
Operated from the suction fan control panel on the front of the table
|
||

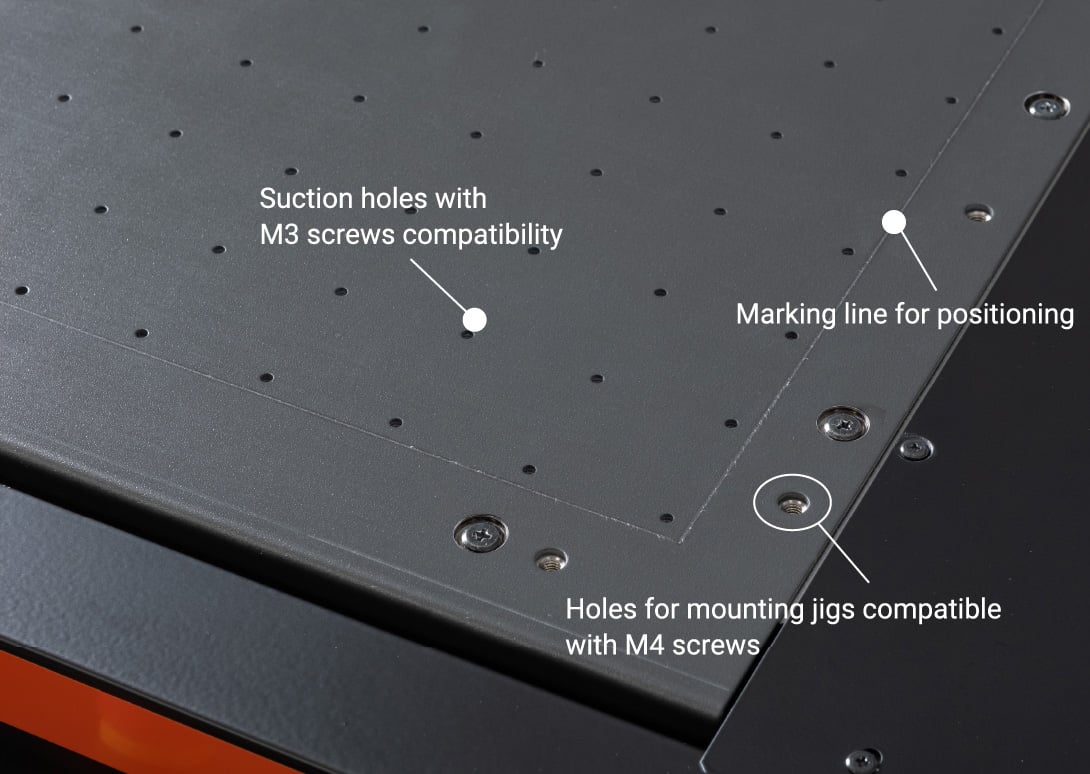

| The vacuum table with marking line for positioning and holes for jig mounting, can be used with magnets, and flexibly support to fix media in various ways. The vacuum holes can also be used as screw holes for fixing jigs. | ||||
|
|
|
Large format printing on the entire table
Printing small items side by side
Direct printing on 3D objects up to 150 mm / 5.91" |
||
|
Media placement example
A2: 420mm x 594mm (16" x 23") x 3 |
A3: 297mm x 420mm (11.5" x 16") |
|||
Foot switch for turning table vacuum on and off
|
EASE-OF-USE FEATURES |
||||||
 |
The simple nozzle chech function Even after the jig and media to be printed are set on the table, nozzle check can be performed at any time in a dedicated area next to the print table. |
|||||
|
Automatic nozzle checking unit and Nozzle area select It is available to add a module to the print head that can optically monitor the ink jetting. Automatically detects missing nozzles and performs nozzle cleaning. If nozzles are not recovered, the Nozzle Area Select automatically activates to continue printing. |
||||||
 |
||||||
|
Signal tower light The status of the printer can be checked at a glance from a distance. |
Ink circulation system Three circulating pumps for white, black and yellow inks are installed to ensure stable color reproduction. |
Automatic media detection The on-board laser sensor automatically detects media thickness up to 150 mm/5.9". |
||||
|
|
|
|
||||
|
Ionizer (optinal) An optional ionizer eliminates static electricity and supports stable printing. *The static electricity on the surface of the media is not guaranteed to be eliminated 100%. |
|
|||||
|
MUTOH genuine UV-LED inks |
||||||
 |
||||||
| Two types of UV-LED inks are available for beautiful and versatile layered printing. | ||||||
|
Next generation UV ink: US61 US61, a newly developed environmentally friendly UV ink is available for the XpertJet 1462UF. In compliance with the chemical substance regulations in the EU, which has strict environmental regulations, and in anticipation of future regulations, the US61 ink is free of substances classified as CMR Category 1 (1A, 1B)* and SVHC (Substances of Very High Concern). This is a next-generation UV ink that takes into consideration the health of operators and the environment. In addition, it combines “flexibility" and “scratch resistance" at a high level, which have been trade-offs in conventional UV inks, making it suitable for a wide range of applications. |
||||||
 |
||||||
| *CMR refers to substances that are carcinogenic, mutagenic, or reproductive toxic. Category 1 is classified as substances that are carcinogenic, mutagenic, or reproductive toxic to humans. | ||||||
|
UV ink specialized for printing on hard materials: UH21 UH21 ink has excellent fastness and scratch resistance. In addition, high adhesion to acrylic (extruded board) allows adhesion without primer application*. *Ink adhesion test is recommended before printing. |
||||||
|
RIP Software |
||||||
 |
||||||
|
Simplified jig production with 2.5D printing Save time and money with MUTOH's automated jig production |
JIG layout function Less variation in color density and smoother gradations |
|||||
 |
 |
|||||
|
Automated nesting, layout and printing for multiple jobs with multi-layers For multiple jobs with multi-layers, automated processing can be performed once a series of processing such as print settings, layer settings, nesting settings and layout settings is set in the hot folders. |
||||||
 |
||||||
|
|
||||||
Specifications
| Print method | On-demand Micro Piezo Inkjet Technology | ||||||
|---|---|---|---|---|---|---|---|
| Number | 2 (staggered) | ||||||
| Resolution | 1440/1080/720dpi ** | ||||||
| Head height | Max. 150 mm | ||||||
| Maximum paper roll weight | 50kg/m2 (10.24psf) | ||||||
| Maximum print area | 1420mm (55.9") x 700mm (27.5”) | ||||||
| Drying system | 2 4-inch LED-UV lamps with long life | ||||||
| Custom height | Automatic | ||||||
| Vacuum system | Electronically adjustable suction intensity | ||||||
| Ink type | Mực UH21 LED-UV | ||||||
| Color | 6 colors: KCMY, White & Varnish | ||||||
| Capacity | KCMY, White, Varnish: 800ml bag (White: 500ml only bag) | ||||||
| Interface | Ethernet (10 Base-T/100 Base-TX) | ||||||
| Power supply | AC 100-240V - 50/60Hz±1Hz | ||||||
| Environmental condition | NTemperature:20℃～32℃ Humidity: 40%～60% No condensing | ||||||
| Power consumption | Operation: 300W or less | ||||||
| Dimensions (W×D×H） | Printer with front print bed: 2768 x 1600 x 1338mm (109" x 63" x 52.7") | ||||||
| Weight | 498kg (1100lbs) | ||||||
| RIP Software | VerteLith, Flexi, NeoStampa, ONYX | ||||||
** Optional mode is set by RIP software. For details, please contact the official distributor.
