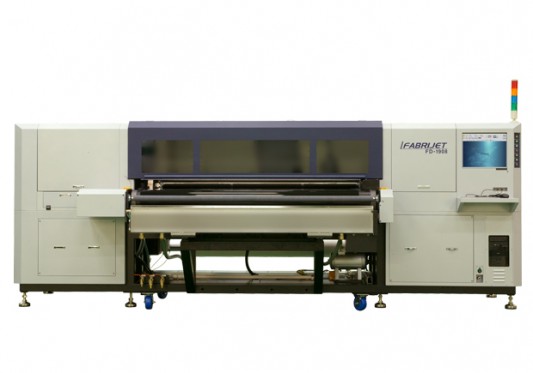

Direct textile printer for mass production

FABRIJET Series

FD-1908



SPEED
Max 195m2/h

Resolution
Max 600 x 1,800 DPI

Print Width
1.9m

Print Head
8 color / 8 head



Direct textile printer for on demand market

1,000 yards daily production
(max 30,000 yards per month)

fd1908 f01


fd1908 f02

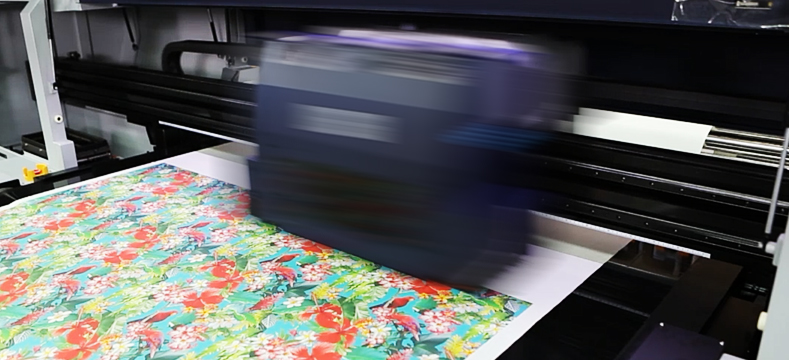

Durable print heads with high quality print performance

Durable print heads for direct to textile printing with
high quality print performance

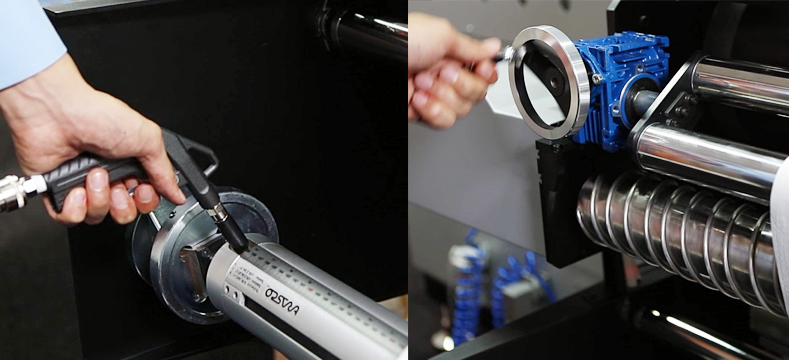

Value added functions for mass production

Feed adjustment function to minimize banding,
sensors to detect errors and prevent accidents

fd1908 f03



Specifications

Print head Piezo type print heads
Ink DGI Original Reactive Ink
Drop Size 5~18 Pico liter Variable dots
Media Cotton, Polyester, Silk and etc
Max Print Width 1,880mm
Max Media Width 1,900mm
Print Mode Bi / Uni Direction, Normal/ Interleave/ Purge
Interface TCP/IP
Resolution(DPI) Max 600 DPI X1,800 DPI
Rip Software Wasatch TX, Inedit(Driver), Ergosoft(Driver)
Color 8 Colors (Yellow, Magenta, Cyan, Black, Blue, Red, Orange, Gray)
Operating environment Temperature : 22~28℃      Humidity : 40~70%
Electric Power Printer & Winder : Single Phase 220V (50/60hz, AC) / 11A
Dryer : Three phase 380V (50/60hz, AC) / 25A 380V
Pressured Air Min 5 kgf/cm²
Dimension Printer - Uncrated : 4,410mm(L) x 1,820mm(W) x 1,670mm(H)      Crated : 4,700mm(L) x 2,000mm(W) x 2,150mm(H)
Dryer - Uncrated : 2,840mm(L) x 1,875mm(W) x 1,420mm(H)      Crated : 3,100mm(L) x 1,970mm(W) x 1,650mm(H)
Winder - Uncrated : 2,860mm(L) x    730mm(W) x 1,050mm(H)      Crated : 3,100mm(L) x 1,060mm(W) x 1,600mm(H)
Weight Printer - Uncrated : 1,630 Kg      Crated : 2,400 Kg
Dryer - Uncrated :   440 Kg       Crated :   600 Kg
Winder - Uncrated :   145 Kg       Crated :   250 Kg
Print Speed
Main Scan (DPI)ModeSub Scan (DPI)Speed (m²/h)Pass
NormalDBF I DBFII
600 Normal 600 200 185 110 1
1200 110 95 55 2
1800 75 65 40 3
Interleave I 600 125 112 68 2
1200 67 60 34 4
1800 45 40 23 6
Interleave II 600 140 126 71 1
1200 72 64 36 2
1800 65 58 24 3

Applications

Clothes

Clothes

Scalfs, neckties, and accessories

Scalfs, neckties, and accessories

Home Textiles

Home Textiles
