KASU KD1814-S1

KD1814-S1

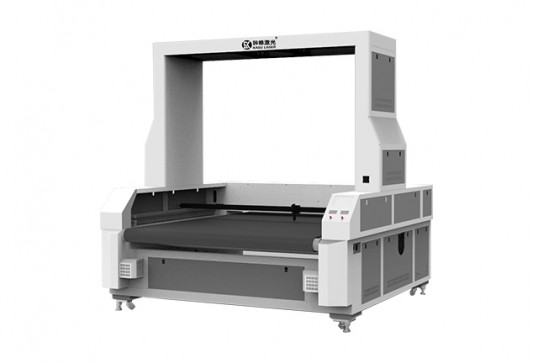

Large Flatbed Top Vision Laser Cutting Machine

KASU Laser’s single-head vision laser cutting machine with a top Canon camera can realize position cutting of printed or embroidered materials with super high precision..

High Accuracy and Precision Cuts.

Powerful Vision Software Meets Multi-Industry Needs.

Vision and Non-Vision Working Modes.

Low Initial Machine Investment.

VISION LASER CUTTING MACHINE SOLUTION

Laser cutting technology is ideal enough to smoothly and effectively cut many kinds of materials without causing it any harm overall.

The KD1814-S1 Single Head Vision Laser Cutting Machine is the laser cutter combined with the advanced large vision software system of the KASU laser. It can automatically recognize the contour of the printed or embroidered fabrics, leather, and other flexible materials and then cut with super high accuracy and efficiency.

DATA SHEET

WORKING AREA	1800mm x 1400mm	SOFTWARE	KASU
LASER TYPE	Glass CO2 Laser Tube	WORKING SPEED	1000mm/s
LASER POWER	80/100/130/150W	POSITIONING ACCURACY	±0.1mm
HEADS OF LASER	1	FORMAT SUPPORTED	AI\BMP\PLT\DXF\DST

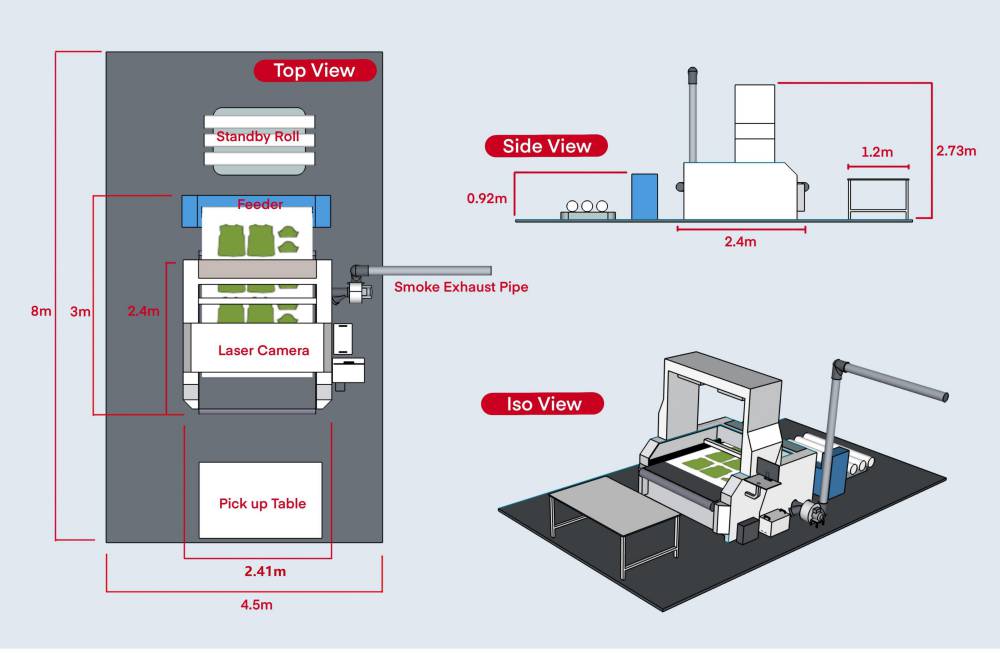

DIMENSION	2.28 x 2.5 x 1.51m 2.28 x 0.86 x 055m	POWER SUPPLY	AC220V ±5% 50Hz/60Hz 1Phase
GROSS WEIGHT	1100kg	OPERATING TEMPERATURE	10℃~45℃
MOTION SYSTEM	Stepper Motor	OPERATING HUMIDITY	5-95%

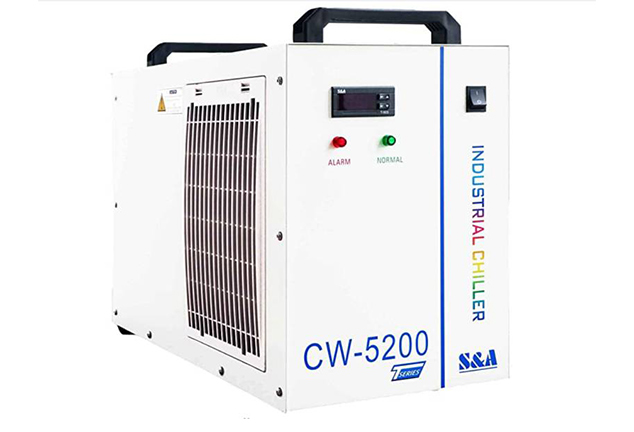

COOLING SYSTEM	5000 Industrial Water Chiller	TOTAL POWER	1.5KW

ACCESSORIES

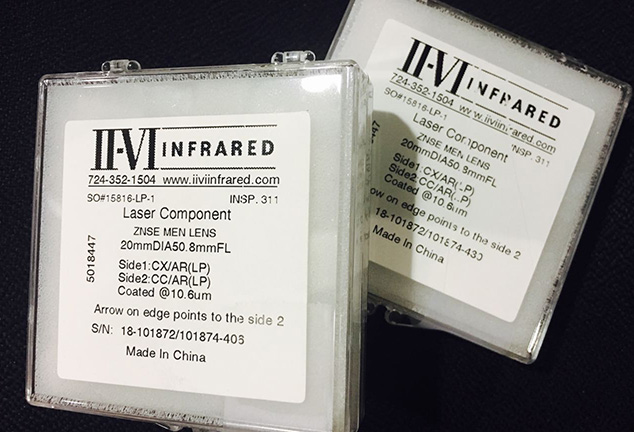

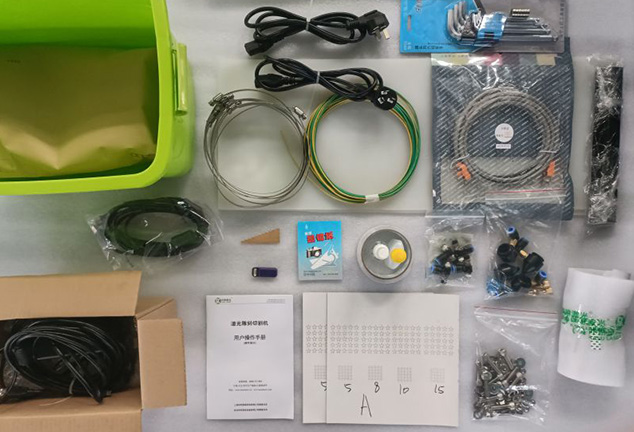

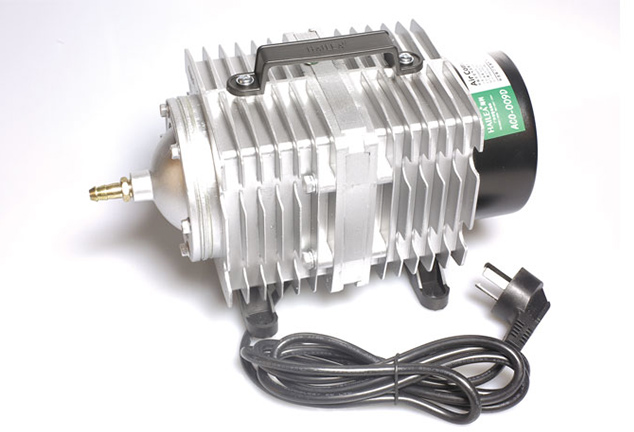

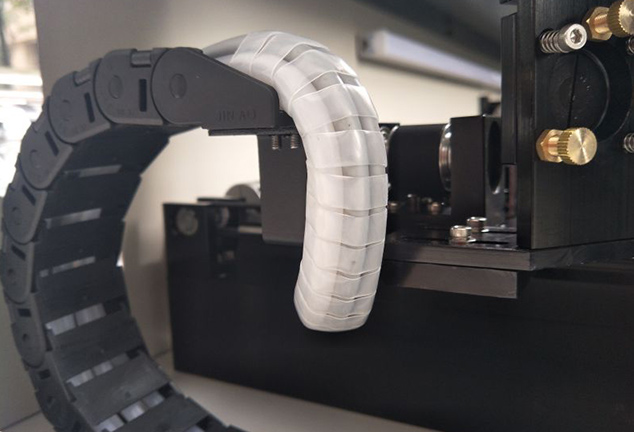

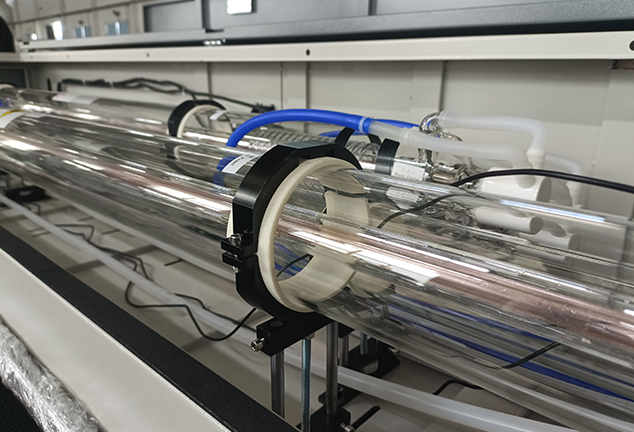

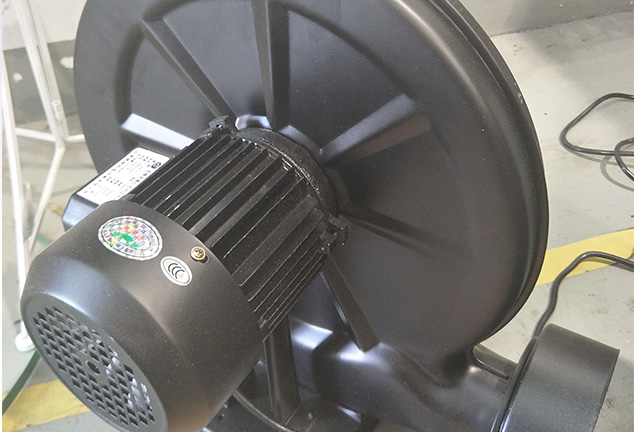

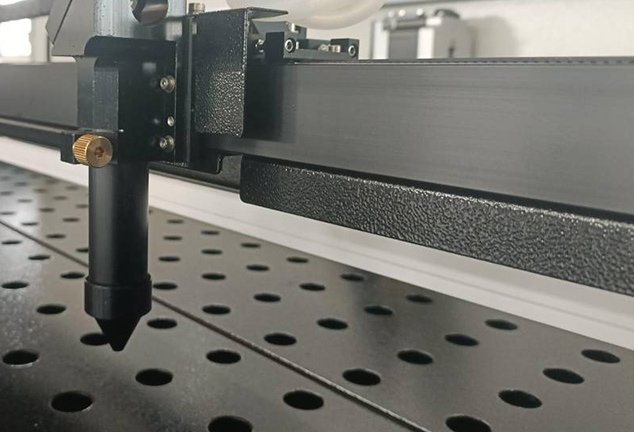

Glass Co2 Laser Tube	Smoke Exhausting Fan	Spare Parts In Tool Kit	American 26 Focusing Lens	KASU Laser Safe Sticker	Guide Rail and Laser Cutting Head	KASU Laser Quality Spare Parts Hailey Air Pump

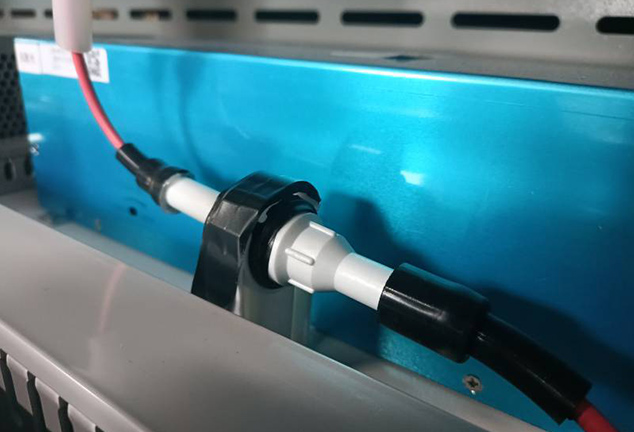

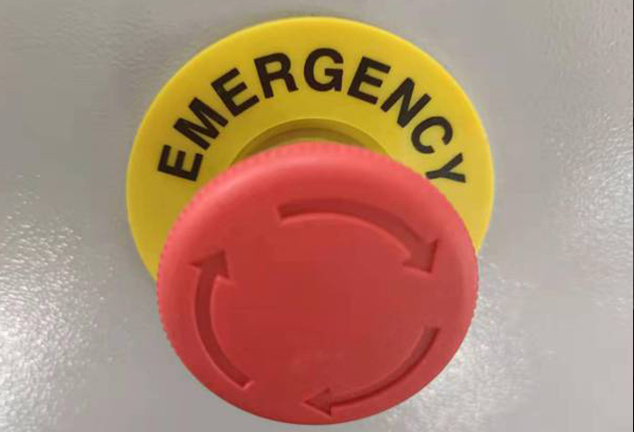

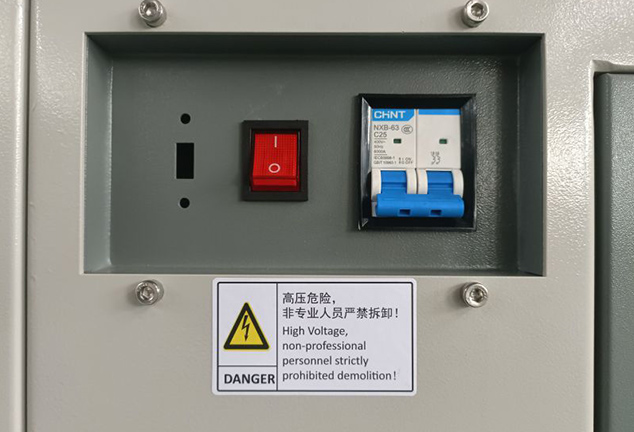

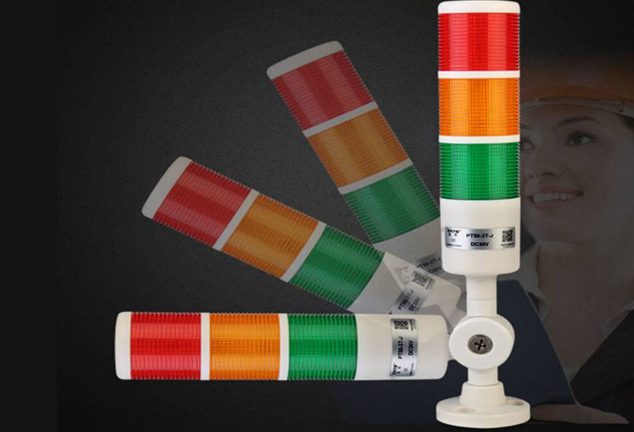

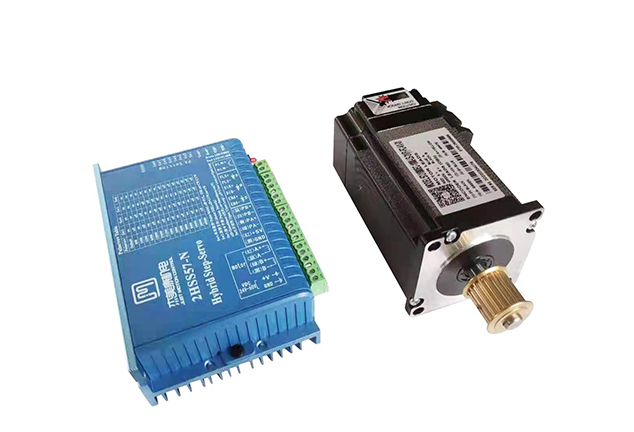

Motor and Driver	Safe Design Alarm Lamp	KASU Laser Safety Design – Emergency Stop Switch	Safe and Stable Insulation Treatment of Wire	KASU Laser Quality Spare Parts S&A Water Chiller	KASU Laser Strong Machine Triangle Structure Design	KASU Laser Power Supply and High Voltage Line Joint Insulation Support Frame

OPTIONAL DEVICE

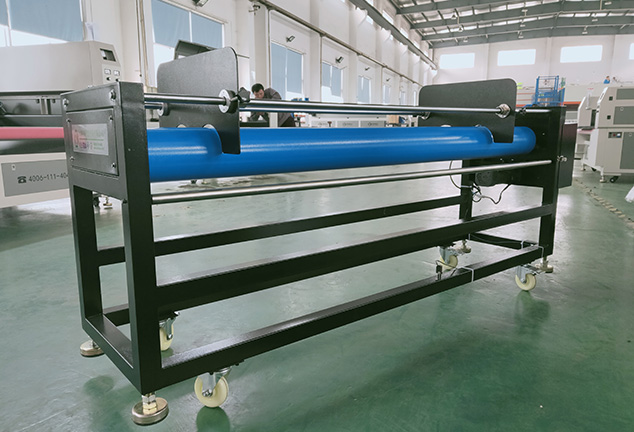

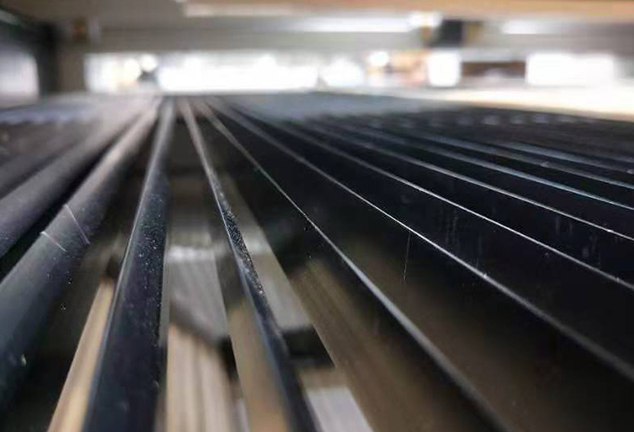

ACTIVE FEEDER	BLADE KNIFE TABLE

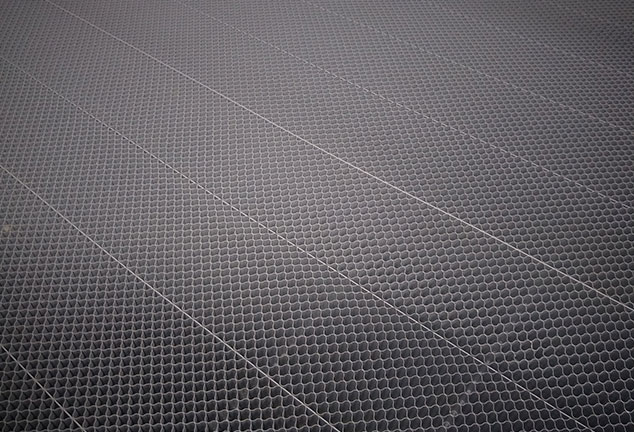

EXTENTED CUTTED PATTERN PICK-UP TABLE	HONEYCOMB TABLE

Self-Owned Top Vision Software System

KASU owns the full property of the large vision software system. Together with the Canon EOS Camera with 2,400 Mega Pixels, the KD1814-S1 camera laser cutter’s vision software automates the whole graphic detection and position cutting process.

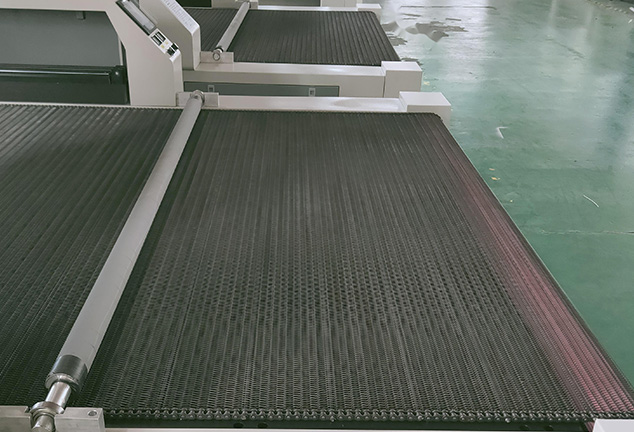

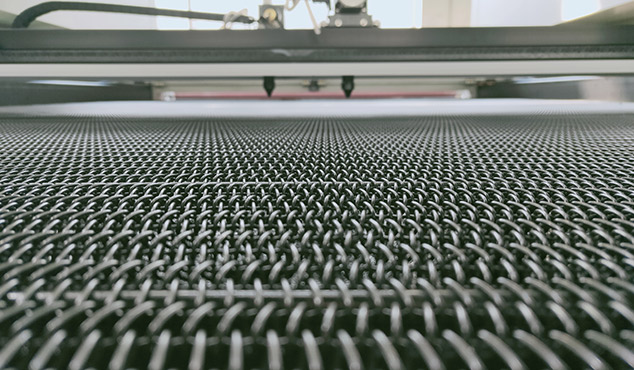

Auto Feeding Conveyor Table

Auto Feeding Conveyor Table

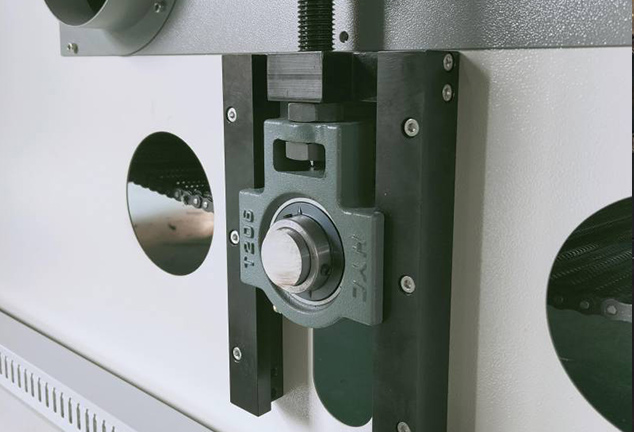

KD1814-S1 is equipped with a chain conveyor belt, which can auto-feed the roll material right after the laser cutting process. Together with the optional active feeder, the operator only needs to take care of the cut pattern pick-up job.

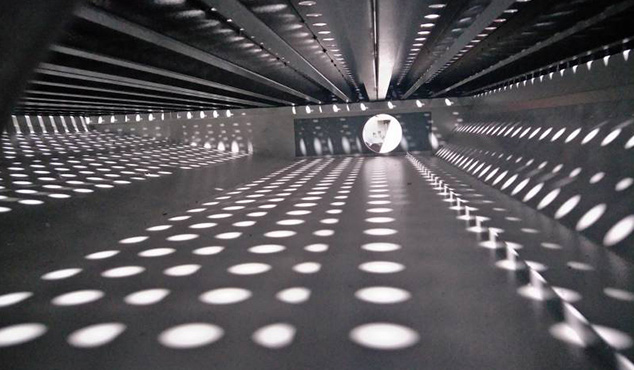

More Stable Triangle Structure Design

The triangle machine structure design means more cost for us, but more benefits for you. Bigger waste collection space, better smoke exhausting effect, and more stable for the conveyor chain belt’s motion.

Auto Feeding Conveyor Table

ONE STOP LASER SOLUTION FOR YOUR PRODUCT


Printing & Sublimation	Sportwear	Fashion & Clothing	Shoes & Bag	Gift & Toy	Home Decor

Advertising	Label	Lace & Embroidery	Decorations & Ornament	Vinyl & Sticker	Foil & Membrane


How KASU Support Your Business KASU Laser is a reputable laser cutter machine supplier in China. We achieve the dependability of our laser machines by using the most advanced manufacturing technologies, the strictest production standards, and consistent quality tests. Every single machine passes CE, and FDA certifications before being delivered to the customer. High production capacity, fast lead time, and 7/24 after-sale service. Contact us immediately!		File Download
