The LCX603 is suitable for small production runs of various labels of any shape.

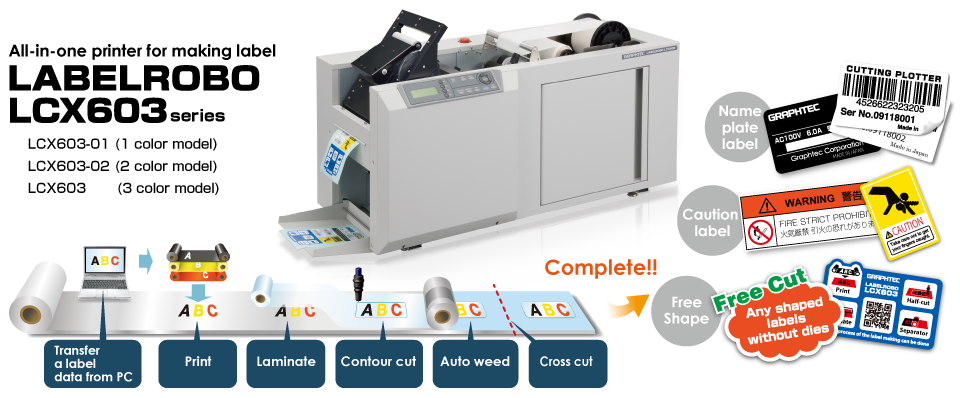

The LCX603 is All-in-one, industrial label printer and finishing solution that includes multiple spot color printing, auto laminating, contour-cut, auto weeding and a sheet cross-cut function. Perfect for low-cost, on-demand, short run labels, specialty labels of any shape, and helps reduce inventory too.

High quality printing
in 600 x 1200 dpi with maximum three colors (black + 2 spot colors)

001

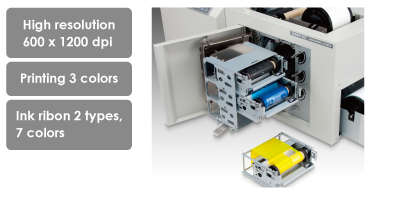

Thermal transfer method is used for printing, inks and solvents are not required for it. It's easy to handle it.The 8 points size of character can be printed in specified condition.
Available Spot Color Ribbons
Resin 5 colors (Black, Blue, Red, White, Yellow)
Semi Resin 5 colors (Black, Red, Green, Blue, Orange)

Easy to set, Easy to upgrade

002

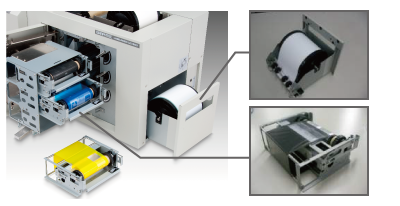

Label material and ink ribbon are set to the cassette. It is easy to exchange color of ribbon or material of label.Optional upgrade kit (OPH-A30) allows to increase the number of collor to 1 color / 2 colors model.

003

Auto laminating

004

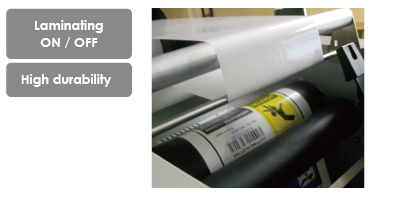

Laminate film is automatically applied after an image is printed.Polyester (PET) and polypropylene (PP) based materials are available. Durable labels can be created.

Contour cut
Built-in cutter eliminates needs for cutting die

005

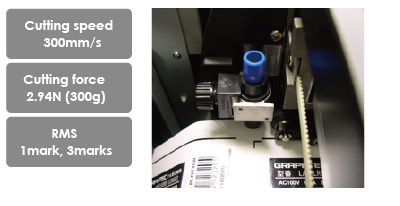

Contour cutting is performed automatically after it is laminated.
The cutting tool allows a contour of any shape.
This eliminates the need for cutting dies resulting in low cost labels as well as reduced inventory!
The contour is properly aligned to the printed image using the registration mark by equipped registration mark sensing system (RMS). Three (3) registration marks are created and printed automatically in the LCX603. The registration mark is not required in the design of the label.

The weed boarder can be cut using the Flame Cut function. Small size of label will not be removed from backing paper in the auto weeding process.

Auto weed

006

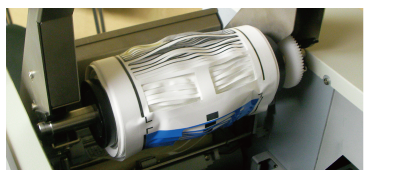

The weeding mechanism is included and removes unnecessary parts along the contour.

Cross cut

007

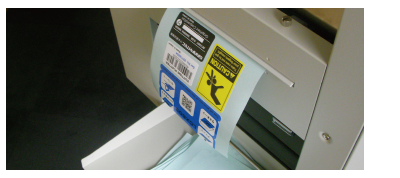

Cross cutting (Auto Sheet Cut) is executed for each page after weeding is done—and a finished label is created.

Software
Label software "NiceLabel Designer Pro"

008

Included High-performance label creation software with a variety of functions as a standard accesory
1. More than 70 different bar code, the QR code can be created easily
2. Image created by other application software can be imported
3. It is possible to make a label in conjunction with other database
4. Corresponding to Multiple languages

>for more details

Specification

Printer section Specification

Item		LCX603-01 (Single color model)	LCX603-02 (Two colors model)	LCX603 (Three colors model)
Printing method		Thermal transfer
Resolution		600 × 1200 dpi, 600 × 600 dpi
Number of thermal head		1*1	2*1	3
Printing colors		1 color (only black)	Max. 2 (black & 1 color)	Max. 3 (black & 2 colors)
Printing speed		Max. 35 mm/s
Effective printing width		Max.100 mm
Effective printing Length		40 mm – 200 mm (in each label)
Printing position accuracy		N/A	+/- 0.3 mm or less (after adjusted in the menu)
Min. printing character size		8 pt (in specified condition)
Min. printing line width		0.3 mm
Ink ribbon	Size	width 120 mm, Length 100 m
	Core size	Bore 1 inch, width 140 mm; Max. diameter of rinnon: 50 mm
	Available ink ribbon	RESIN (Black) Semi-RESIN (Black)	RESIN (Black, Red, Blue, Yellow, White) Semi-RESIN (Black, Red, Blue, Green, Orange)
Label material		Width: 70, 80, 90, 100, 110, 120, 130 mm, Thickness: 25 µm - 85 µm
Label material		Outside diameter of roll: Max. 195 mm (approx. 100 m long) including 3-inch core
Laminate material		Width: 50, 60, 70, 80, 90, 100, 110 mm
		Outside diameter of roll: Max. 140 mm including 3-inch core
		Core size for take-up: 1 inch bore, Width: 140 mm

*1: Number of thermal head is up to three. When the upgrade kit OPH-A30 is not installed.

Cutter section Specification

Item	LCX603-01 (Single color model)	LCX603-02 (Two colors model)	LCX603 (Three colors model)
Cutting method	Contour cutting by knife blade
Cutting blade	Super-steel, 0.9 mm dia. (CB09UB)
Cutting area	Max. 100 mm x 200 mm
Cutting speed	Max. 300 mm/s
Print and cut alignment accuracy	0.5mm or less (after adjusted in the menu)

Mainframe section Specification

Item	LCX603-01 (Single color model)	LCX603-02 (Two colors model)	LCX603 (Three colors model)
Interface	USB 2.0 (High speed), Ethernet (10BASE-T, 100BASE-TX)
LCD	20 characters, 4 line
Power supply	100 V to 240 V AC, 50 or 60 Hz
Power consumption	Max. 600 VA
Environment *2	Operating: 10 °C to 35 °C, 35 % to 75 % RH (non-condensing)
Environment *2	Guaranteed accuracy: 16 °C to 32 °C, 35 % to 70% RH (non-condensing)
External dimensions (W x D x H)	Approx. 1,035 mm x 423 mm x 614 mm
Weight	Approx. 67 kg	Approx. 69 kg	Approx. 71 kg

*2: If there was a significant change in the environment, please adapt the main unit and media to the recommended environmental conditions and then use it.

Additionally specification

Rs0wPVCZ	LCX603-01 (Single color model)	LCX603-02 (Two colors model)	LCX603 (Three colors model)
Separator section	Weeding and winding material automatically
Separator section	Core size for take-up weeded material: 1 inch bore, Width: 140 mm
Cross cutter section	Cross-cut by the knife, Ejecting in sheet, Including tray
Supported OS	Windows 10 / 8.1 / 8 / 7 / Vista
Supported bar code	Code39, Code128,ITF, NW-7, UPC-A, UPC-E, UCC/EAN128, JAN8, JAN13, Post office customer bar code
Compliance of standard	UL/cUL, FCC Class A, CE mark (Low Voltage, EMC derective), RoHS

Consumable Item

Media for Label

Description	Model number	UL Compatibility	Package
Polyester film, Silver, 25 µm, 130 mm x 100m	FNS MAT N25-1310B-R4	Yes	4 rolls/box
Polyester film, Silver, 50 µm, 130 mm x 100 m	FNS MAT N50-1310B-R4	Yes	4 rolls/box
Polyester film, Silver, 50 µm, 130 mm x 100 m	FNS MAT S50-1310B-R4	Yes	4 rolls/box
Polyester film, Silver, 50 µm, 130 mm x 100 m	FR1615-50-1310-R4A	Yes	4 rolls/box
Polyester film, Clear, 25 µm, 130 mm x 100 m	PET25A-1310B-R4	Yes	4 rolls/box
Polyester film, Clear, 50 µm, 130 mm x 100 m	PET50A-1310-R4	Yes	4 rolls/box
Polyester film, Clear, 50 µm, 130 mm x 100 m	FR1225-50-1310-R4A	Yes	4 rolls/box
Polyester film, White, 50 µm, 130 mm x 100 m	PETWH50A-1310-R4A	Yes	4 rolls/box
Polyester film, White, 50 µm, 130 mm x 100 m	FR1415-50-1310-R4A	Yes	4 rolls/box
Polyester film, Yellow, 50 µm, 130 mm x 100 m	FR1015-50-1310-R4A	Yes	4 rolls/box
Synthetic paper, 85 µm, 130 mm x 100 m	FR5311-85-1310-R4A	Yes	4 rolls/box
Synthetic paper, 80 µm, 130 mm x 100 m	FR6311-80-1310-R4A	Yes	4 rolls/box
Paper, 130 mm x 100 m	GLOSS PW-1310B-R4	No	4 rolls/box
Paper, 130 mm x 100 m	NP COAT PW-1310B-R4	No	4 rolls/box

Ink ribbon

Description	Model number	UL Compatibility	Package
RESIN, Black, 120 mm x 100m	RP120-B-R4A	Yes	4 rolls/box
RESIN, Blue, 120 mm x 100 m	RP120-BL-R4A	No	4 rolls/box
RESIN, Red, 120 mm x 100 m	RP120-R-R4A	No	4 rolls/box
RESIN, White, 120 mm x 100 m	RP120-W-R4A	No	4 rolls/box
RESIN, Yellow, 120 mm x 100 m	RP120-Y-R4A	No	4 rolls/box
Semi-RESIN, Black, 120 mm x 100 m	WD120-B-R4A	No	4 rolls/box
Semi-RESIN, Red, 120 mm x 100 m	WD120-R-R4A	No	4 rolls/box
Semi-RESIN, Blue, 120 mm x 100 m	WD120-BL-R4A	No	4 rolls/box
Semi-RESIN, Orange 120 mm x 100 m	WD120-OR-R4A	No	4 rolls/box
Semi-RESIN, Green 120 mm x 100 m	PM-IS-024	No	4 rolls/box

Film for Laminate

Description	Model number	UL Compatibility	Package
Polyester film, Clear, 16 µm, 110 mm x 100 m	PET16-1110-R4A	Yes	4 rolls/box
Polyester film, Clear, 25 µm, 110 mm x 100 m	PET25-1110-R4A	Yes	4 rolls/box
Polyester film, Clear, 16 µm, 110 mm x 100 m	FR1225-16-1110-R4A	Yes	4 rolls/box
Polyester film, Clear (Mat), 25 µm, 110 mm x 100 m	PETS MAT 25-1110-R4A	Yes	4 rolls/box
Polyester film, Clear (Mat), 25 µm, 110 mm x 100 m	FR1125-25-1110-R4A	Yes	4 rolls/box
Polypropylene, Clear, 20 µm, 110 mm x 100 m	PP20-1110-R4A	Yes	4 rolls/box

Cutter blade

Description	Model number	Package
Cutter blade holder, for CB09 type blade	PHP33-CB09N-HS	1 set/box
Cutter blade, Super-steel, 0.9mm diameter	CB09UB-5	5 blades/box
