PRE-TREATMENT |
|||||||||||||||||||||
|
|
|||||||||||||||||||||
 |
|||||||||||||||||||||
|
|||||||||||||||||||||
|
|||||||||||||||||||||
| KEY FEATURES | |||||||||||||||||||||
|

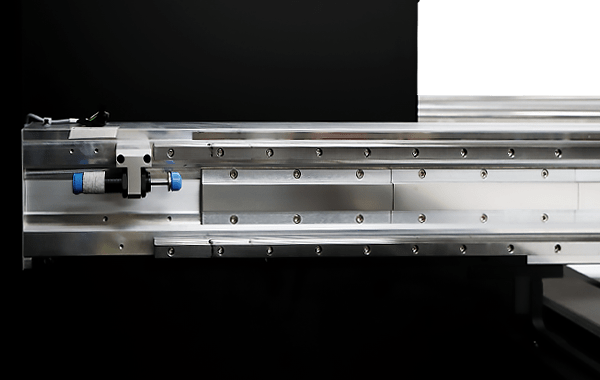

LINEAR MOTOR AND METAL ENCODER SCALE The linear motor and metal encoder scale ensure high-precision printing, while also maintaining low operational and maintenance costs. |

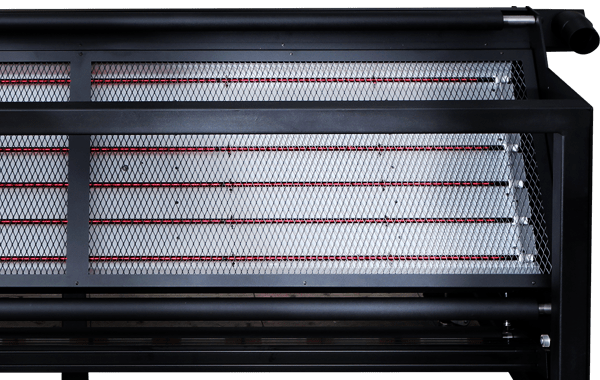

POWERFUL IN-LINE DRYER The In-line dryer is equipped with six infrared lamps, making it more powerful and explicitly designed to efficiently dry even the thickest fabrics at high speeds. |

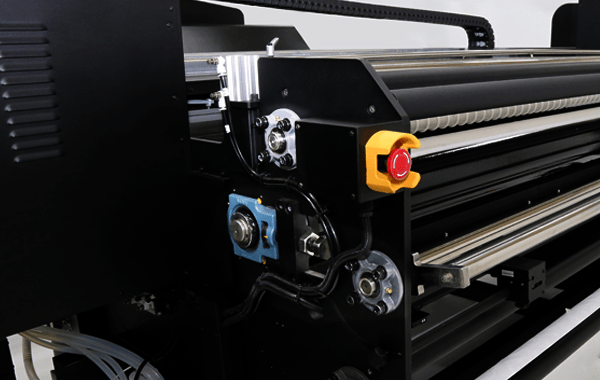

HIGHLY VERSATILE FABRIC FEEDING SYSTEM The feeding system provides edge positioning control to ensure perfect feeding. Additionally, it incorporates a pneumatic clutch to prevent distortion of the media. |
|||||||||||||||||||
|

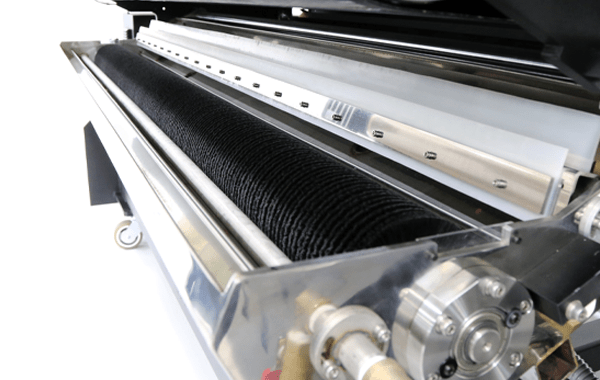

ADVANCED BELT WASHING UNIT Equipped with a powerful brush and dryer, the advanced belt washing unit enhances the long- lasting tackiness of the glue. |

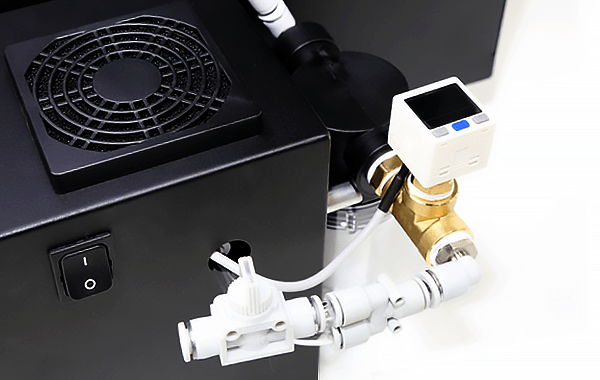

UPGRADED DEGASSING SYSTEM The degassing system improves runability for continuous printing, reduces cleaning time, prevents missing nozzles, and minimizes excessive ink usage. |
SMART FABRIC PRESS ROLLER The smart fabric press roller finely regulates |
|||||||||||||||||||
| SPECIFICATIONS | ||||||
| Printing | Ink | Printing Speed | ||||
|
Print Head Ricoh, 10 Heads
Ink Type Pigment

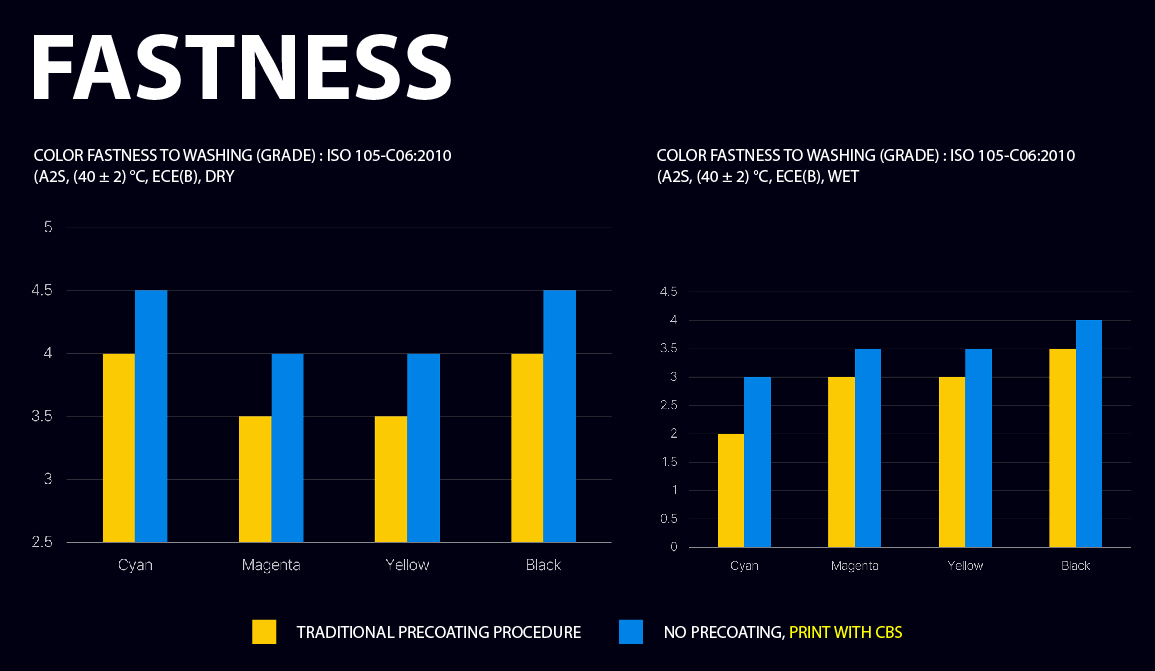

Number of Colour 6 + CBS
Max Printing resolution 600 x 1200 dpi
Max Printing width 1830mm
Printing Mode - Bi-Direction - Uni-Direction |
Pigment Cyan, Mangenta, Yellow, Black + Lc, Lm, Or, Bl, Sc, Gr
Ink Capacity 5L
|
600 X 600dpi 2pass 117m2/h
600 X 900dpi 3pass 86m2/h
600 X 1,200dpi 4pass 65m2/h
|
||||
| Meida (Roll) | Operational Environment | Others | ||||
|
Max Media Width 1880mm
Core Diameter Feeder 320mm, 2~3inch
Media Drive Adhesive Belt Conveyor System
Belt Washing Automatic
MaxMedia Load Diameter : 320mm, Weight : 40kg Diameter : 320mm, Weight : 100kg *Option (Rubber Band Shaft)
MaxMedia Thickness 2mm |
Temperature 22oC ~ 25oC
Humidity 45 ~ 65% * Environmental influences canaffect print quality.
|
Rip SoftwareP Ergosoft, Caldera, Wasatch
Dimensions Printing Machine: 4130(W) x 1700(D) x 1800(H) mm Dryer (6heats): 2475(W) x 625(D) x 750(H) mm
Weight Printing Machine: 2800kg Dryer (6heats): 1470kg
Electricity Printing Machine: 9.82kW, 3Φ AC 380~415V, 14.92A Dryer (6heats): 7.85kW, 3Φ AC 380~415V, 11.91A
|
||||
|
