HIGH SPEED SUBLIMATION PRINTER
OVERVIEW
A super quick machine that is advantageous from the first performance

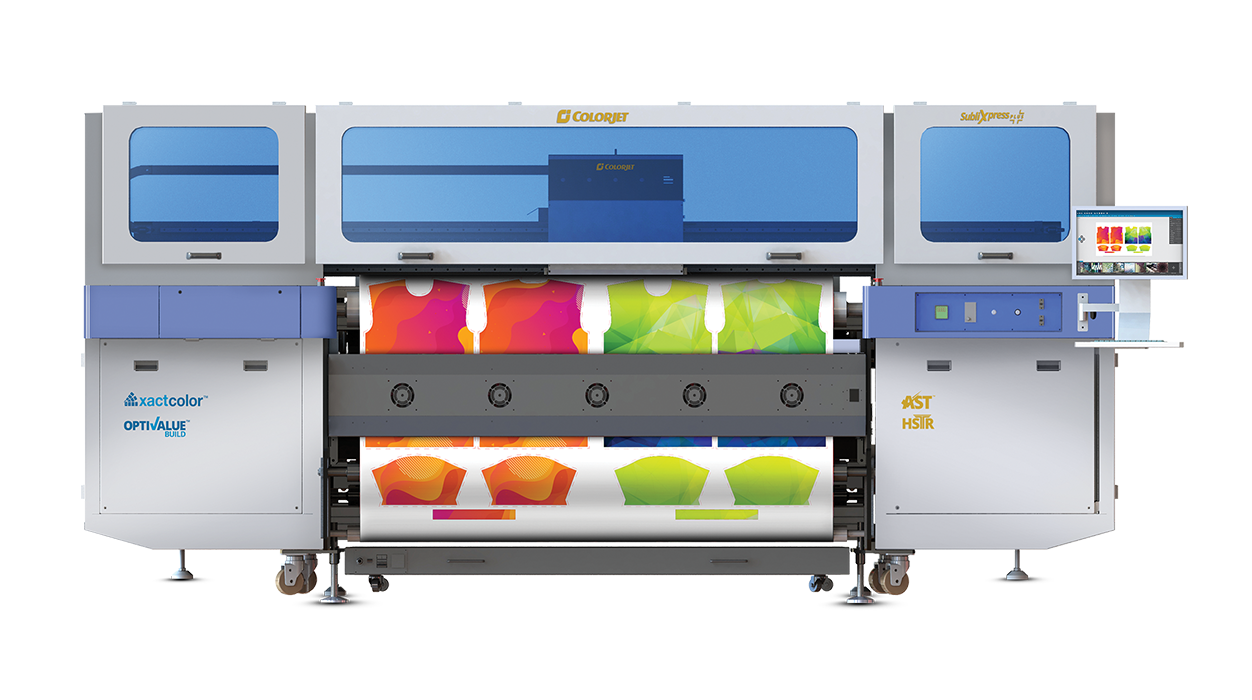

Speed, Quality, Reliability and Consistency are the four most powerful pillars of our most advanced 72” Wide industrial dye sublimation printer -SubliXpress Plus. Well equipped with Active Seaming Technology and 8 industrial Kyocera print heads, SubliXpress Plus has a vast production potential of 9,000 sqm/day to intensify your production level.
FEATURES
 |
INDUSTRIAL LEVEL PRINT HEADS Up to 8 staggered heads CMYK configuration with 5,7,12 pl variable ink drop technology attaining sharp quality with high production. |
|
METAL ENCODERMore precise ink jetting at high speeds, effectively leading to longer service life. |
 |
LEAF CLAMPSPolished steel clamps placed at either side to prevent paper edges from curling |
 |
HSTRHigh Sense Paper Tension regulator. It detects fluctuation in tension and corrects it almost instantly. |
 |
INK DEGASSING SYSTEMTo remove bubbles and gastrapped in ink tubes and avoid ink starvation |
 |
To Prevent cockling of paper & provide precise ink absorption on the media |
 |
MULTIPLE BRUSH ROLLER To ensure effective wrinkle-free media feeding and take-up. |
 |
ASTActive Seaming Technology for superior quality at high speed. |
 |
DANCING ROLLER To provide continuous uniform tension and roll alignment for media from feeding to take up. |
 |
Z ENCODERFor precise head height adjustment when calibrating |
 |
LINEAR MOTORLinear motor with high precision dual guide rail beam helps improve printing speed and ensure printing accuracy. |
SPECIFICATION
SubliXpress Plus |
|||||
|
Models
|
X4403
|
X4806
|
|||
| Printing Technology |
Drop-on-demand, Piezo Electric Inkjet
|
||||
| Type of Print head |
300dpi
|
600dpi
|
|||
| No. of Print Heads |
4
|
8
|
|||
| Print Heads | Type |
Industrial Grade Jetting Assemblies
|
|||
| Resolution |
Upto 2400 dpi
|
||||
| Height Adjustment |
Upto 20mm
|
||||
| Cleaning Method |
Pressure Purge and Wiping
|
||||
| Wetting Control |
Piezoelectric actuations
|
||||
| Inks | Types |
Dye Sublimation Aqueous based Inks
|
|||
| No. of Color |
4
|
4
|
|||
| Supply |
10 litre Refillable tank
|
||||
| Media | Max. Thickness |
Upto 20 mm
|
|||
| Max/Printing Width |
Upto 1830 mm
|
||||
| Feed Roll Daimeter |
Upto 900 mm
|
||||
| Distance Accuracy |
Error of less than +0.3 % of distance travelled, or +0.3 mm, whichever is greater
|
||||
| Media Drying System |
Infrared Heaters
|
||||
| Printing Interface |
USB 3.1
|
||||
| Rip Software Supported |
Onyx(ColorJet Edition)
|
||||
| File Format |
JPEG/TIFF/BMP/PDF (RGB/CMYK)
|
||||
| Power Requirements(Print Engine) |
AC 220 V, 43 A, 50/60 Hz
|
||||
| Power Requirements(Dryer) |
AC 220 V, 20 A, 50/60 Hz
|
||||
| Dimensions (Printer Only) |
3910 x 2430 x 1830 mm
|
||||
| Dimensions (With Packing) |
4180 x 880 x 1340 mm
|
||||
| Weight |
N.W 1650 K.G, G.W. 1850 Kg
|
||||
| Connected Load |
8 K.W
|
||||
| Operating Conditions | Temperature: 24 oC +/- 4 Humidity: RH of 55% +/- 10 | ||||
| Speed(In Sq.Meter/Hr) |
Print DPI
|
Passes
|
X4403
|
X4806
|
|
| Mode 1 |
488 x 300
|
1
|
457
|
-
|
|
| Mode 2 |
488 x 600
|
2
|
303
|
-
|
|
| Mode 3 |
488 x 900
|
3
|
221
|
-
|
|
| Mode 4 |
480 x 1200
|
4
|
165
|
-
|
|
| Mode 5 |
488 x 600
|
1
|
-
|
450
|
|
| Mode 6 |
488 x 1200
|
2
|
-
|
300
|
|
| Mode 7 |
488x1800
|
3
|
-
|
218
|
|
APPLICATIONS
SubliXpress Plus is the go-to sublimation printing machine for a variety of applications. This polyester fabric printing machine also prints on most other types of fabrics. Apart from being used as a sports apparel printing machine, this sublimation paper transfer machine is also used for various other applications like, fashion apparels, home furnishings, personalised merchandise, sports gear, etc.
