DIRECT TO FABRIC DIGITAL TEXTILE PRINTER

metro fix 01

OVERVIEW

Direct to Fabric Digital Textile printer


VASTRAJET is a high speed Direct to Fabric Digital Textile printer designed to print directly on natural and synthetic fabric. Built on 3E design philosophy – Economic, Efficient and Ecological, VASTRAJET comes with maximum capabilities and applications for maximum business.

This Direct to fabric printer is a leap ahead in its technology, with high precision and quality output making it the most selling Digital Textile Printer from the house of ColorJet.

FEATURES

VASTRAJET : FEATURES DESIGNED TO DRIVE YOUR PROFITABILITY


Built on industrial-grade jetting assembly, it is available in 4 & 8 colour variants. Compact, modular and heavy-duty design with rigid structure makes this cotton printing machine suitable for rigorous industrial operating conditions. With its adhesive belt cleaning system that is equipped with water jets and brush roller, this innovative cotton printing machine ensures the washing off of excess ink and lint reducing the maintenance cost. The major compatible inks are reactive, disperse, pigment and acid.

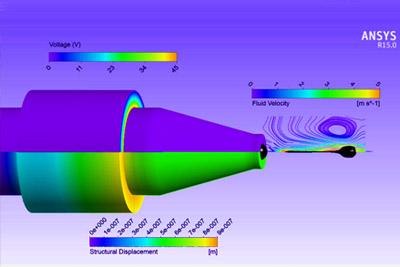

SPECIALLY DEVELOPED AIVC

Proprietory AIVC technology for consistent print performance by maintaining constant Jetting conditions even in varying environment conditions

INDUSTRIAL GRADE JETTING ASSEMBLY

tich xanh Increased durability of print head ensures longer life span

tich xanh Low maintenance results in less wastage and easy to handle

tich xanh Consistent print quality across the entire life span

tich xanh Consistent performance even with varying viscosity

tich xanh Supports variable drop printing and produces 8 different drop sizes

 aivc

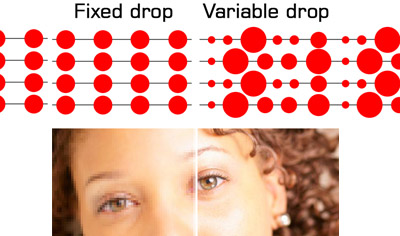

 fixed drop

VARIABLE DROP TECHNOLOGY

tich xanh Uses 3 dot types to produce smoother gradations, vivid colors and sharp images

tich xanh Maintains details in mid-tone areas


MEDIA TENSION CONTROL SYSTEM

tich xanh Optimised system ensures consistent tension on fabric which auto-adjusts based on the type of fabric being used

tich xanh Enables excellent printing even on loose stack media

SPECIFICATION


VASTRAJET works on the technology of Drop-on-demand, Piezoelectric Inkjet that prints up to the high quality of 720x1440 DPI with the option of 8 colours, 16 heads and 1024 nozzles. It offers the convenience of varied file formats including JPEG, TIFF, BMP, PDF (RGB/CMYK). VASTRAJET is an ideal solution for industrial and commercial textile printing ensuring high profitability and durability.

VASTRAJET

CONFIGURATION
C4812
C8812
C4824
C8824
C8164
Printing Technology
Drop-on-demand, Piezo Electric Inkjet
No. of Print Heads
8
8
8
8
16
Print Head Type
Industrial Grade Jetting Assemblies
Resolution
Maximum Up to 1440 dpi
Height Adjustment
Upto 5mm
CleaningMethod
Pressure Purge and Wiping
Wetting Control
Piezoelectric Actuations
Ink Types
Reactive/Disperse/Pigment/Acid
No of colors
4
8
4
8
8
Supply
3.9 Ltr, bulk ink supply system with inline degassing
Fabric Type
Cotton,Viscose,Polyester,Polyamide,Silk,Wool
Max.Thickness
Upto 5mm
Max.Width
1800 mm
Roll Diameter
Upto 450mm
Fabric Drying System
Infrared heaters
Operating Interface
Touch screen
Printing Interface
High speed USB 2.0
RIP Software Supported
RIP Master or ErgoSoft ( Colorjet Edition)
File Format
JPEG, TIFF, BMP/PDF (RGB, CMYK)
Power Supply
220 V, 35 A Single/Three phase load distribution, 50Hz,
OperatingCondition
Temperature 20-28C, Humidity 60-70% RH ( Non-Condensing)
Outer Dimension/Weight
3950 mm x 1500 mm x 1600 mm (LxWxH) 1200kg Approx.
Speed (In Sq. Meter/Hrs)
Print DPI
Passes
C4812
C8812
C4824
C8824
C8164
Mode 1
360 x 360
2
116
68
NA
NA
NA
Mode 2
360 x 540
3
90
53
NA
NA
NA
Mode 3
360 x 720
4
63
37
NA
NA
NA
Mode 4
540 x 720
2
NA
NA
161
87
145
Mode 5
540 x 1080
3
NA
NA
98
59
100
Mode 6
540 x 1440
4
NA
NA
75
43
76
Mode 7
720 x 720
4
NA
NA
65
35
58
Mode 8
720 x 1080
6
NA
NA
38
23
39
Mode 9
720 x 1440
8
NA
NA
31
18
32



APPLICATIONS


VASTRAJET is the go-to Textile Printing Machine for Fashion Industry Designers when it comes to creating unique, vibrant designs in the short runs. With less ink consumption and high production, VASTRAJET also adds value to the art of Embroidery.

This cotton printing machine also prints on most other types of fabrics, be it elastic or sheer fabrics, like Viscose, Polyester, Polyamide, Silk, Wool, etc. Apart from being used mostly as an apparels printing machine, this direct to fabric printer is also used for other applications like, Curtains, Scarf, Bed Sheets, Cushion Covers, etc.
