HIGH SPEED, HIGH QUALITY DIGITAL TEXTILE PRINTER
OVERVIEW
High Speed, High-Quality Digital Textile Printer

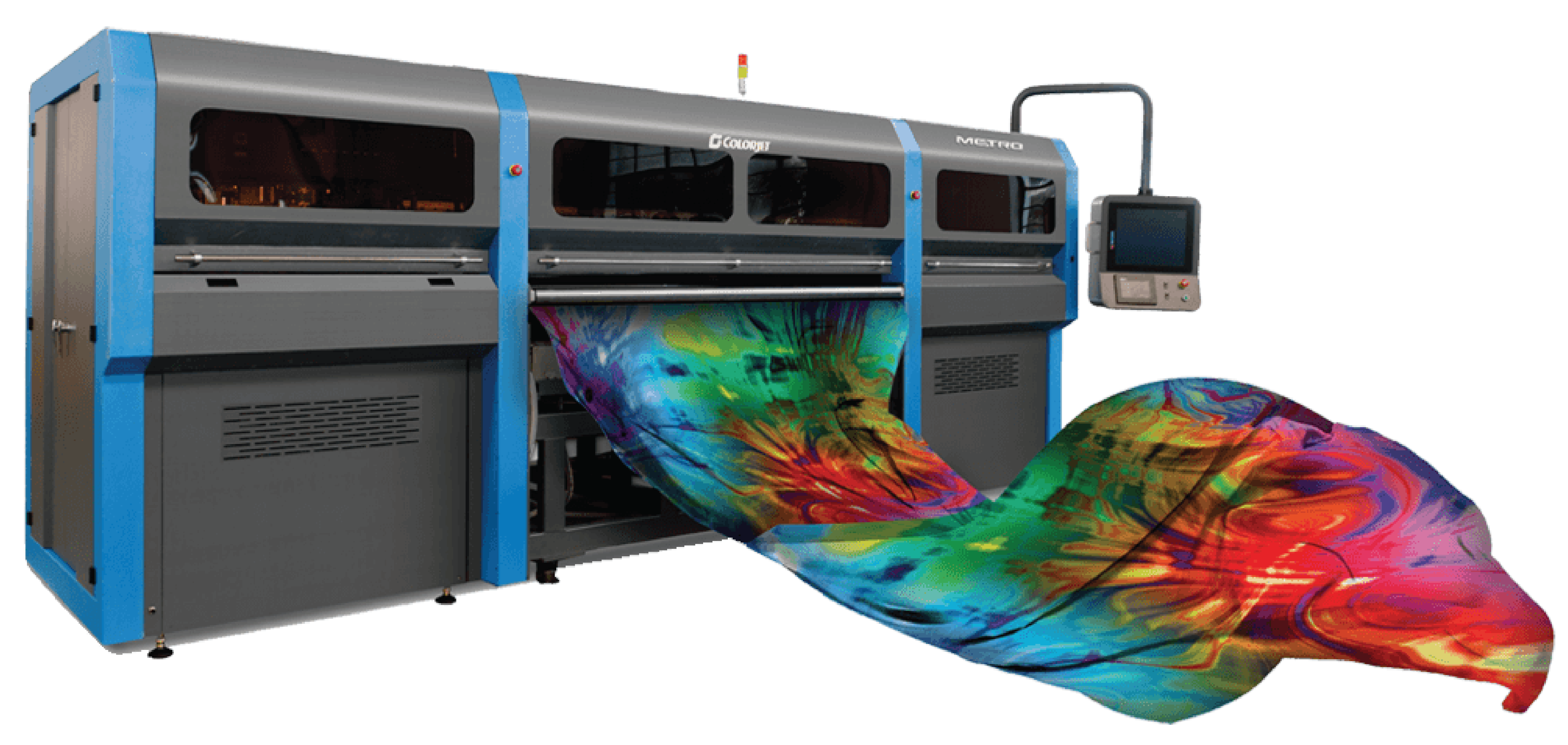

METRO is a truly advanced industrial grade 1.8 meters wide digital fabric printing machine, which fantastically incorporates the latest technology and efficient engineering to meet the ever-growing demands of the textile business. As a digital textile printing consultant, ColorJet offers this high-speed fabric printing machine that is compatible to work with all types of inks like reactive, acid, disperse, and pigment. This industrial textile printer weaves magic on a variety of fabrics, ranging from 0.1 mm to 30 mm including cotton, polyester, silk, viscose, wool, nylon, acetate, or any other blended fabric. This high-speed digital textile printing machine from Indian textile printing leaders, ColorJet provides comprehensive textile printing solutions.
FEATURES
METRO: FEATURES WITH AMAZING SPEED UPTO 362 SQMT/HR
The brilliance that is METRO is built on a rigid structure to support 6, 16 & 32 head combination for long service life and deliver high-quality prints with speeds reaching upwards of 362 sq. meters per hour. The independent fabric feed module comes with a spreader roll to help remove wrinkles if any. This high-speed digital textile printing machine has a dancing roll and a guide roll to feed fabric with even tension. This reactive printing machine is equipped with water jets and a brush roller to wash off excess ink and lint. The infrared dryer system incorporated in the Metro machine makes sure of efficient radiation for minimal dissipation of heat to surroundings. This industrial textile printer has an advanced degassing and de-bubbling feature that avoids head blockage during high-speed printing.
CONTROL SYSTEM
ENGINEERED FOR FLEXIBILITY AND CONVENIENT OPERATIONS, THE CONTROL SYSTEM DELIVERS PRECISION AND ACCURACY
3-Axis, P&D control system.
High-end embedded system with latest hardware technologies.
User Interface-High speed USB 3.0
Data transmission on fiber optics.
Support variable drops
Remote access control.
Supports upto 32 heads.
Real time speed meter
AIVC control
Independent conveyor control system
COLOR MANAGEMENT
Equipped with advanced color management engine and color processing tools.
Faster processing saves times and increases productivity.
User-friendly, easy to use color controls to handle colors.
Photo-realistic output.
Fully customized printer settings for enhanced print results.
Smoother gradations, vibrant colors for superior print quality.
Inbuilt ICC profiles for various media and print modes intelligent grey scale.
SPECIFICATION
METRO, from the house of ColorJet - Best Indian textile printing company works on the technology of Drop-on-demand, Piezoelectric Inkjet that prints up to the high quality of 600x2400 DPI with the option of up to 8 colors and up to 32 heads. It offers the convenience of varied file formats including JPEG, TIFF, BMP, PDF (RGB/CMYK). METRO, our high-speed fabric printing machine is preloaded with the ColorJet edition of NeoStampa software.
METRO |
||||||
|
CONFIGURATION
|
H8803
|
H8806
|
H8166
|
H8329
|
||
| Printing Technology |
Drop-on-demand, Piezo Electric Inkjet
|
|||||
| No. of Print Heads |
8 KY
|
8 KY
|
16 KY
|
32 KM
|
||
| Print Heads | Type |
Industrial Grade Jetting Assemblies
|
||||
| Resolution |
Upto 2400 DPI
|
Upto 1440 DPI
|
||||
| Height Adjustment |
upto 30mm
|
|||||
| CleaningMethod |
Pressure Purge and Wiping
|
|||||
| Wetting Control |
Piezoelectric Actuations
|
|||||
| Inks | Types |
Reactive/Disperse/Pigment/Acid
|
||||
| No of colors |
8
|
8
|
8
|
8
|
||
| Supply |
10 Ltr, Bulk ink Supply System with inline degassing
|
|||||
| Fabric | Types |
Cotton,Viscose,Polyester,Polyamide,Silk,Wool
|
||||
| Max.Thickness |
Upto 10mm
|
|||||
| Max.Width |
1800 mm
|
|||||
| Roll Width |
400mm
|
|||||
| Fabric Drying System |
Infrared Heaters
|
|||||
| Operating Interface |
Touch screen
|
|||||
| Printing Interface |
USB 3.1
|
|||||
| RIP Software Supported |
ErgoSoft / NeoStampa (Colorjet Editions)
|
|||||
| File Format |
JPEG, TIFF, BMP/PDF (RGB, CMYK)
|
|||||
| Power Supply |
220 V, 80 A Single/Three phase load distribution, 50Hz,
|
|||||
| Operating Conditions |
Temperature 18 to 28 C, Humidity: 35-80% RH ( Non-Condensing)
|
|||||
| Printer Dimension / Net Weight |
5300 mm x 1840 mm x 2450 mm (LxWxH) / 4300 Kg. Approx.
|
|||||
| Dryer Dimension / Net Weight |
2560 mm x 1500 mm x 1350 mm (LxWxH) / 500 Kg. Approx.
|
|||||
| Feeder Dimension / Net Weight |
2350 mm x 800 mm x 1210 mm (LxWxH) / 617 Kg. Approx.
|
|||||
| Speed In Sq. Meter/Hrs) |
Print DPI
|
Passes
|
H8803
|
H8806
|
H8166
|
H8329
|
| Mode 1 |
600 x 300
|
1
|
256
|
-
|
-
|
-
|
| Mode 2 |
600 x 600
|
2
|
195
|
-
|
-
|
-
|
| Mode 3 |
600 x 900
|
3
|
139
|
-
|
-
|
-
|
| Mode 4 |
600 x 1200
|
4
|
109
|
-
|
-
|
-
|
| Mode 5 |
600 x 600
|
1
|
-
|
210
|
362
|
-
|
| Mode 6 |
600 x 1200
|
2
|
-
|
123
|
187
|
-
|
| Mode 7 |
600 x 1800
|
3
|
-
|
88
|
151
|
-
|
| Mode 8 |
600 x 2400
|
4
|
-
|
68
|
121
|
-
|
| Mode 9 |
540 x 720
|
2
|
-
|
-
|
-
|
269
|
| Mode 10 |
540 x 1080
|
3
|
-
|
-
|
-
|
194
|
| Mode 11 |
540 x 1440
|
4
|
-
|
-
|
-
|
148
|
APPLICATIONS
METRO, a digital fabric printing machine addresses various market segments such as fashion apparels (Women’s, Men’s, and Kids clothing), home furnishings (Curtains, Bedsheets, Sofa Covers), etc. This digital fabric printing machine is used to print Shirts, Skirts, Scarves, and Sarees. METRO prints on Cotton, Viscose, Polyester, Polyamide, Silk, and Wool and is suited for the production of high-quality products as well as home decoration fabrics.
