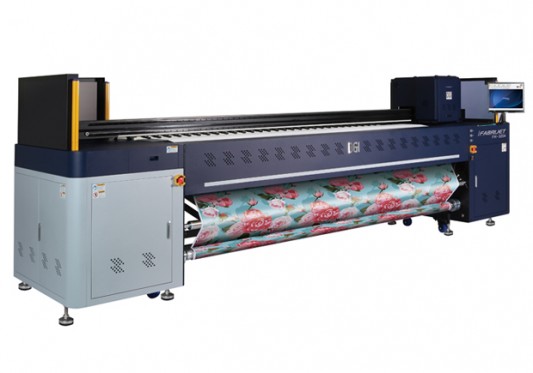

Grand Format Hybrid
Dye-Sub Textile Printer

FABRIJET Series

FH-3204



SPEED
Max 155m2/h

Resolution
Max 600 x 1,200 DPI

Print Width
3.2m

Print Head
4 or 6 color / 4 or 3 head



Indistrial Kyocera Printhead.

Strong durability and dedicated for high production.
In-Lining arrangement of printhead alows expanding up to 6 different color channels.

fh3204 f01


fh3204 f02

Capable of using fabric and sublimation paper in one printer.

Detachable platen for switching into Mesh platten for
fabric printing or Vacuum platten for paper printing

Specifications

Print head Piezo type print heads
Ink DGI Original Dye Sublimation Ink
Drop Size 3~21 Pico liter Variable dots
Media Transfer Paper
Max Print Width 3,200mm
Max Media Width 240mm / 100kg (9.4inch / 220lb)
Print Mode Uni/Bi, Normal/Interleave I,II / DGI Band Free Mode I,II,III
Interface TCP / IP
Resolution(DPI) Max 600 x 1,200 DPII
Rip Software Wasatch TX, Ergosoft(driver available), Caldera(driver available)
Color 4 Colors (K, C, M, Y) / 6 Colors (Fy, Fp / Lm, Lc)
Operating environment Temperature : 20~29℃            Humidity : 40~70%
Electricity Single Phase : 220V (50/60Hz, AC)       Printer : 5A, 6.6Kw      Dryer : 20A
Dimensions Uncrated : 5.240mm(L) x 1,200mm(W) x 1,7000mm(H)            Crated : 5.400mm(L) x 1,540mm(W) x 2,142mm(H)
Weight Uncrated : 1,280Kg            Crated : 2,100Kg
Print Speed
Main Scan (DPI)ModeSub Scan (DPI)Speed (m²/h)Pass
4 Printheads
600 Normal 600 155 2
Interleave 600 95 4
900 50 8
1,200 35 12
3 Printheads
600 Interleave 600 85 4
900 60 6
1,200 45 8

Applications

Banner

Banner

ft3204x 02

Soft signage

Hanging banners

Hanging banners
