Main Features

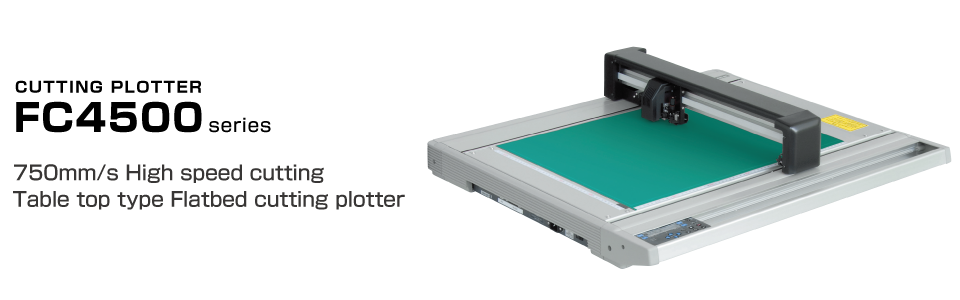

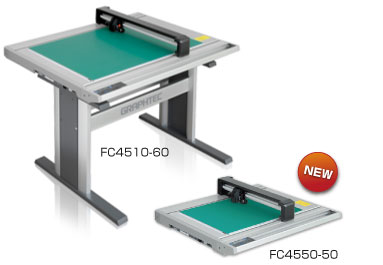

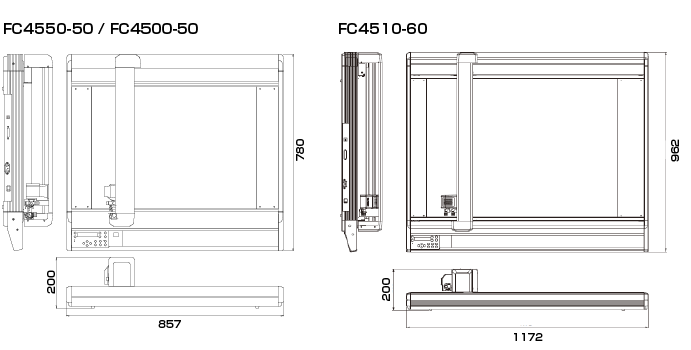

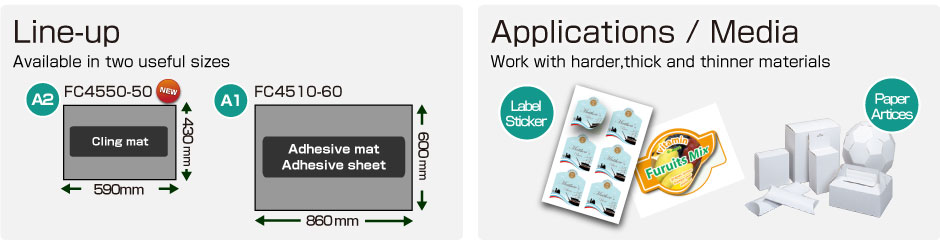

Table top type cutting plotter with max.750 mm/s cutting speed
The FC4500 Series are professional flatbed cutting plotters capable of processing a wide variety of materials with accuracy. Compact size that can be set on a table with precise control of contour cut, half cut,perforated cut, and plotting.this FC4500 series is the most economical solution for cutting thick, hard materials that cannot be fed through a grit rolling type cutting plotter.
Media hold-down method
It is very important to select exact media hold-down method in order to perform a precise cut. FC4500 series provide the following method to fit a variety of media.

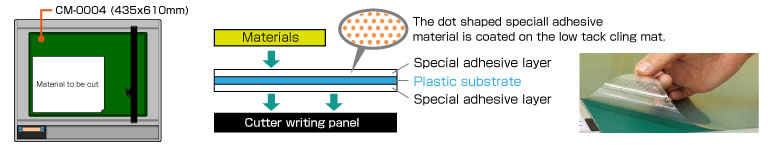

NEW! Low tack cling mat (CM-0004)
The media is held by the dot shaped adhesive material on the low tack cling mat
Suitable materials (media)
- Highly-functional film - Highly-functional film (with backing sheet)

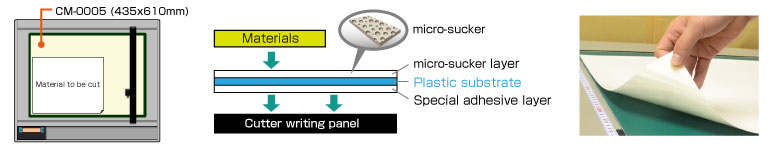

NEW! Micro suction cling mat (CM-0005)
The media to be cut is held to the cutter by the micro-sucker on the cling mat.
Suitable materials (media)
- Marking film- Labels, stickers - High-intensity reflective film - Cardboard (Paper articles, POP, POD)
- Micro flute board (F/G grades) - High-quality/grade paper (Marking)

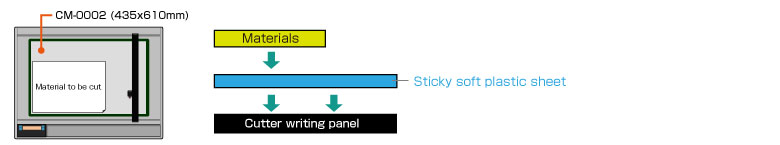

Adhesive mat (CM-0002)
The media to be cut is held to the cutter by the sticky soft plastic mat.
Suitable materials (media)
- Coated cardboard for paper articles - Micro Flute board for package

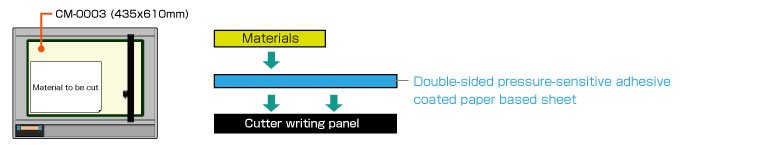

Adhesive sheet (CM-0003)
The media to be cut is held to the cutter by the pressure-sensitive adhesive on the adhesive sheet.
* Supplying in roll. It is used by cutting to the required size.
Suitable materials (media)
- Marking film, PVC (Vinyl) - Labels/stickers, Film/paper - High-intensity reflective film - Cardboard (Paper articles, POP, POD)
- Paper with lamination - Micro flute board (F/G grades)
| Material (Media) | CM-0004 (Low tack type) | CM-0005 (Micro suction type) | CM-0002 (Adhesive mat) | CM-0003-R1A (Adhesive sheet) |
|---|---|---|---|---|
| PVC (Vinyl) film for Marking, Sign | No good (*1) | Excellent | N/A | Good (*2) |
| Film / paper for label or sticker | No good (*1) | Excellent | N/A | Good (*2) |
| High-intensity reflective film for SIgn | No good (*1) | Excellent | N/A | Good (*2) |
| Cardboard for POP | No good (*1) | Excellent | N/A | Good (*2) |
| Coated cardboard for POP | No good (*1) | Excellent | N/A | Good (*2) |
| Paper with lamination for POS | No good (*1) | No good | N/A | Excellent |
| Coated cardboard for paper articles | No good (*1) | Excellent | Excellent | Good (*2) |
| Micro Flute board for package | No good (*1) | Excellent | Excellent | Good (*2) |
| Highly-functional film with backing sheet for Industry | Excellent | Very good | N/A | Good (*2) |
| (CM-0004 is suitable) | ||||
| Highly-functional film for Industry | Excellent | Very good | N/A | Good (*2) |
| (CM-0004 is suitable) | ||||
| Stiff paper / card for Garment, Shoes | No good (*1) | Excellent | N/A | Good (*2) |
| High-quality paper for marking | No good (*1) | Excellent | N/A | N/A |
- note
- Assessment varies by the material. There is different characteristic materials in the same category. Please evaluate with the material that is actually used.
- *1
- Adhesive force will be weakened by the paper dregs in not many cuts. The mat needs to be frequently replaced. Do not recommend for this material.
- *2
- It may occur curling of the material by strong stickiness when it is peeled off from mat.
Advanced Registration Mark Sensing system (ARMS)
Increase the productivity of the Print & Cut
Graphtec’s ARMS system adjusts for several types of potential print distortions, allowing for accurate contour cutting of pre-printed images and decals.
Automatic sensor sensitivity adjustment
Not only black color on white media, such as blue color mark can be read it the color has contrast. It also reads in the data that has beed inverted such as white mark on a black media
*Various combination of colors may not be able to read
Fours-points registration mark correction
Four-points registration mark sensing and X/Y axis correction uses high precision positioning to ensure accurate cutting of graphics that have beed skewed or deformed during printed.
Segment area compensation
The intermediate registration mark in the X-axis direction allow four-points correction for each individual segment area. This enable precise positioning over the whole area of prints that may have skewed during the printing process
Multiple registration mark set detection
The cutting data and layout information are sent for designs printed in multiple copies, enabling continuous detection of registration marks for cutting. This feature is essential when high accuracy cutting is required
Auto registrtion mark detection
The first registration mark is detected automatically, eliminating the need to move the head to the registration mark manually. Should registration marks not be found at the first attempt they are automatically re-detected, thus saving the time of starting over.
Supports registration mark commands
Registration mark commands are provided to control ARMS functions from software.

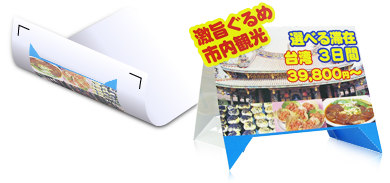

Advanced reverse-side cutting / creasing function
Cutting and creasing can be carried out from reverse-side when using the registration marks.
This function prevents a cutting / creasing line from appearing on the printed surface.
Enhanced functions for higher productivity

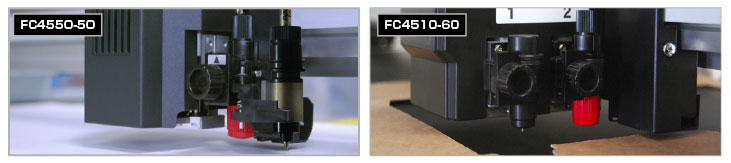

2-Tool holders for easy selection.
Two tools can be mounted at the same time for easy switching. If the cutter blade and the creasing tool are mounted at the same time, cutting and scoring operations are performed automatically for higher productivity.
Note: The second tool is held by magnetic force on the FC4550-50, so the choice of tool is limited.

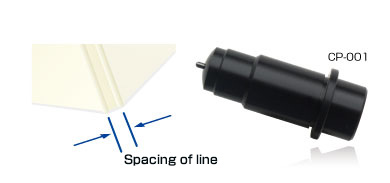

Simple creasing function
A simple function to create fold lines for clean folding on micro-flute and cardboard has been enabled.
-) Up to thre fold lines can be selected
-) If two or three fold lines have been selected, the spacing between the lines can also be specified.
-) Repeated creasing operations can also be specified for each of the lines.
How too determine the number of creasing lines
-) Single-line : Substrates up to 0.1 mm thick
-) Double-line : Paperboard 0.1 to 0.5 mm thick
-) Triplee-line : Rigid cardboard 0.3 to 0.5 mm thick
Multi pass cut function
This function enable to perform the cut with multi pass on a media that cannot be cut
with a single cutting operation.ensuring sharp edges and corners.
Tangential emulation
Graphtec's proprietary tangential emulation provides precise and clean cutting even on thicker material,
ensuring sharp edges and corners.
Software
Graphtec Pro Studio / Graphtec Pro Studio Plus
Design application software
Easy-to-use application software for creating original designs. It has enhanced functions such as auto-shapes, shading, and editing functions. It can also configure the cutting conditions and other settings on the plotter. Importing of EPS, Ai, CMX, and PDF file types are supported. Graphics created with other popular design software can be imported into the software.
Supported OS : Windows 10/8.1/8/7
Cutting Master 4
Plug-in software for Illustrator & CorelDRAW
Cutting Master 4 is Graphtec plug-in software for Adobe Illustrator and CorelDRAW Graphics Suite. It sends cut data to the plotter and includes a variety of functions such as: preview, registration mark creation, tool conditions, cut job settings and more. Cutting Master 4 is easy to use and enables you to get the best performance from your plotter.
Supported OS : Windows 10/8.1/8/ 7、Mac OS X 10.7 to 10.11 / macOS 10.12 (Sierra)
Supported software Illustrator :
CC2017/CC2015.3/CC2015/CC2014/CC/CS6/CS5/CS4 (Supporting CS4 is the only Windows OS),
CorelDRAW Graphics Suite X8/X7/X6/X5/X4
Graphtec Studio for Mac OS
This is an easy-to-use application software for Mac OS to create original designs.
Images can be easily created by using the program icons that are arranged around the drawing area.
Supported OS : Mac OS X 10.6 to 10.11 / macOS 10.12 (Sierra)
